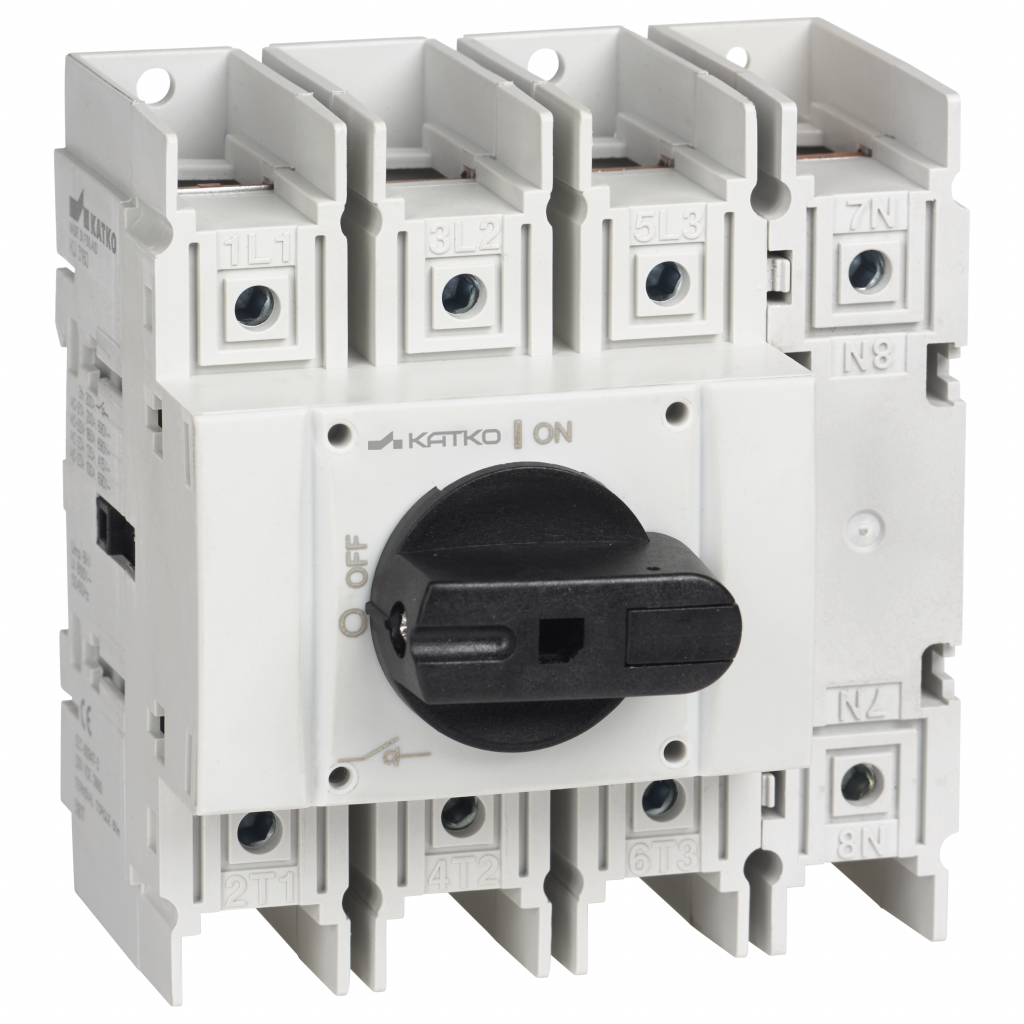

KU 4100UL98
- General use rating 60 – 100 A / 600VAC, refer to detailed product specifications
- Lockable to off-position
- Modular design
- Switching speed is independent of the operator
- Silver contacts ensure safe and durable operation
- Suitable for use on a circuit capable of delivering 50kA rms symmetrical, 600 Vac when protected by Class J, 60A/100A fuse.
- Change-over switches consist of two 3- or 4-pole switches. Marked with CO.
- Note! Auxiliary contacts 160KU1V, 160KU2V, 160KU1VAU and 160KU2VAU used with 4 pole and 8 pole KU 100-160A (IEC) and KU 60-100A (UL98) might have less than 20ms time interval between the opening of the contacts of the auxiliary switch and the contacts of the main poles.
Product details
| SKU | KU 4100UL98 |
|---|---|
| Ampere Rating (600V) | 100 A |
| EAN | 6419410203743 |
| HP 240V | 25HP |
| HP 480V | 50HP |
| HP 600V | 75HP |
| Number of Poles | 4 |
| Operation | Rotary |
| Weight (lb/kg) | 1.3 / 0.45 |
| Wire Size (Cu Only) | 8-1/0 AWG |
Dimensional drawing
