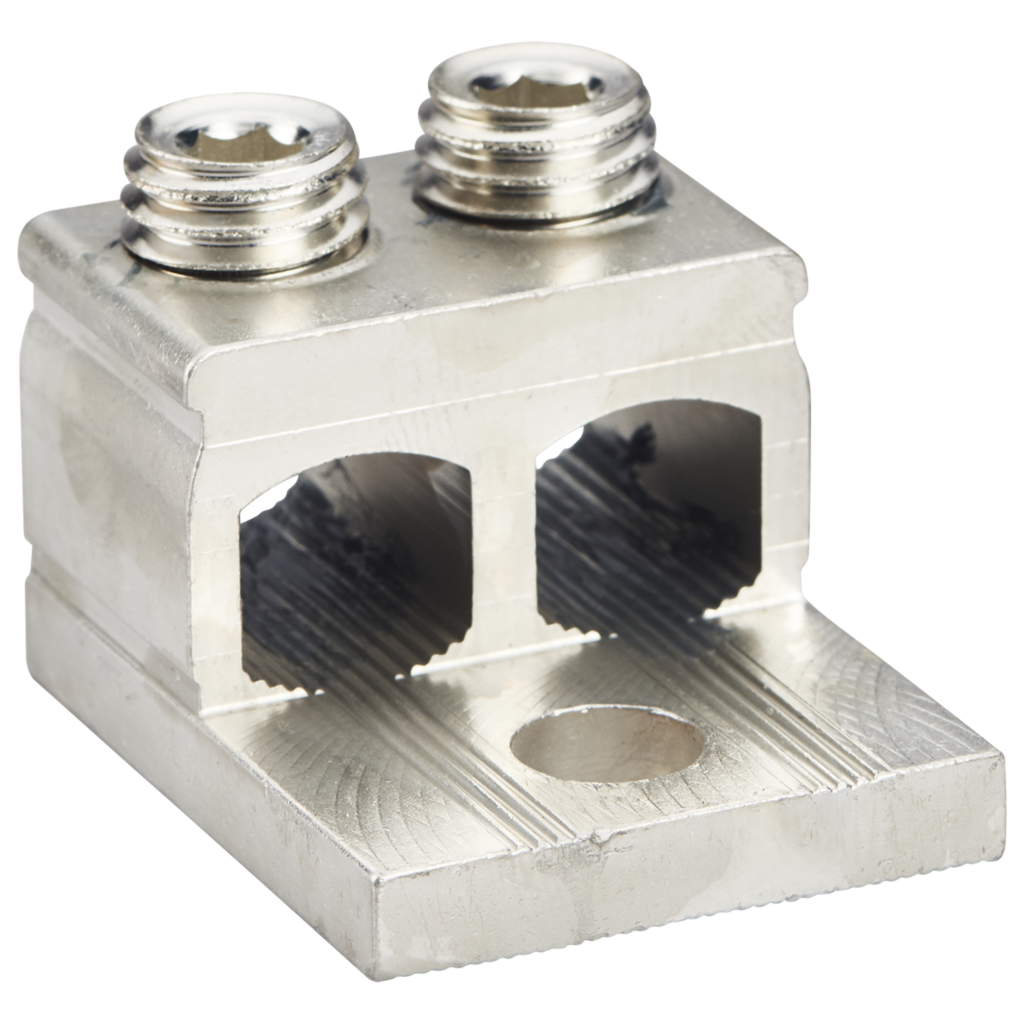

KKL2X95

Cable Connectors

  • Sales unit = 1 pc
  • Suitable for Al/Cu cables
  • Material: tin-coated aluminium
  • IEC 61238-1 Class A
  • Environmentally friendly materials

Conductors per cross section (mm2) table >>

KKL Installation Instructions >>

Compatibility tables >>

Product details

SKU KKL2X95
Al mm² 16-95
Color Standard
Cu mm² 16-95
E-Number 1942090
EAN 6419410378601
In (Al) (A) 400
In (Cu) (A) 490
Key size Hex 6
Mounting Bolt M10
Number of Conductors 2
Package size 48
Torque Al/Cu (Nm) 12 (16-50 mm²) / 22 (70-95 mm²)
Un (V) 690
Weight (lb/kg) 0.134 / 0.061

Dimensional drawing

Product diagram
