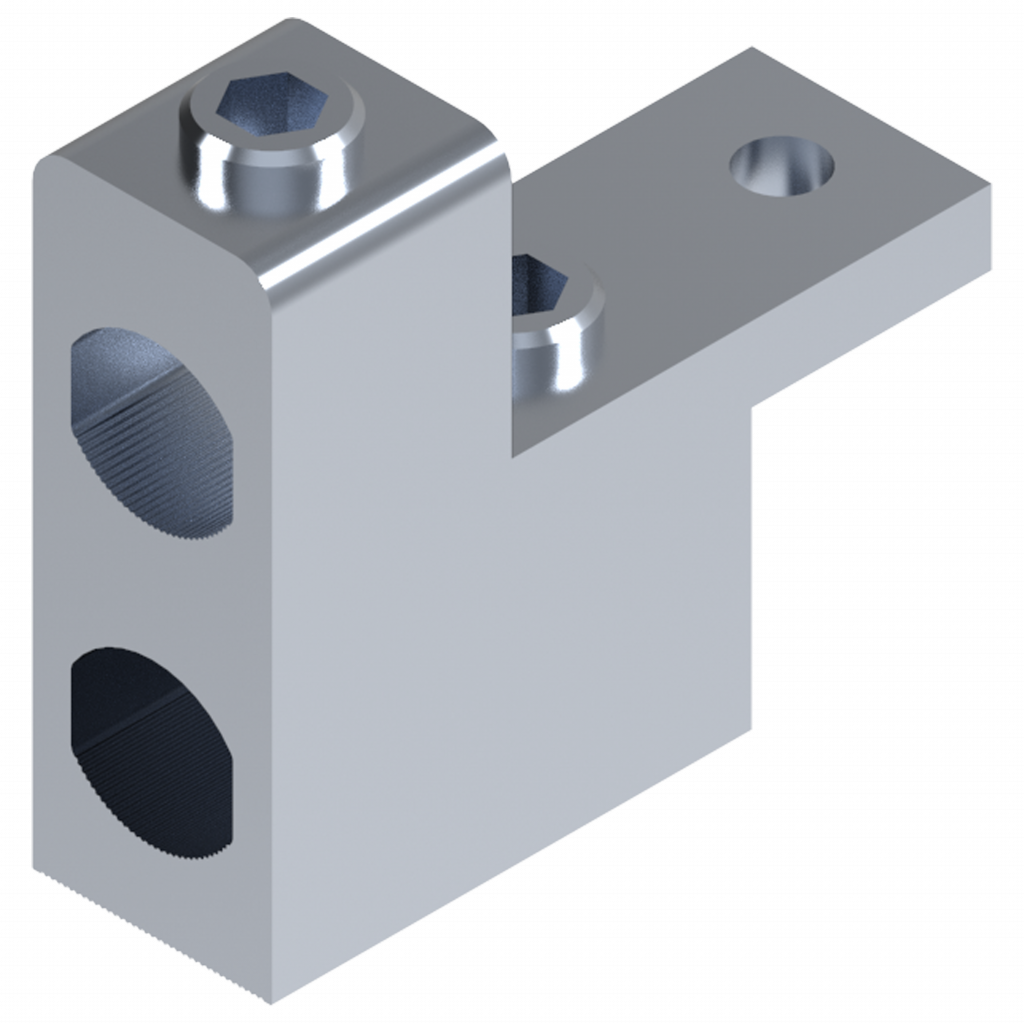

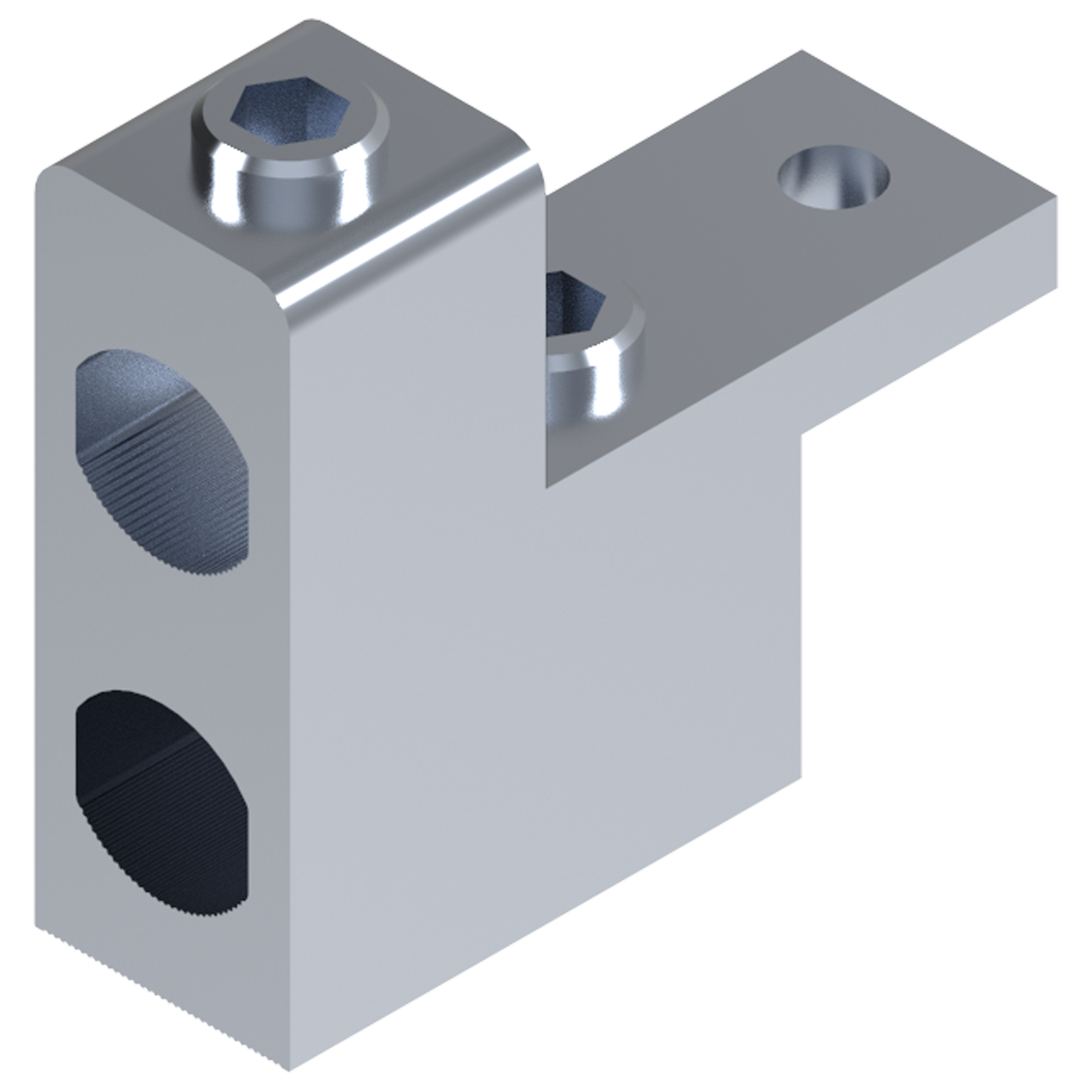

KKL2X300VM

Cable Connectors

  • Sales unit = 1 pc
  • Suitable for Al/Cu cables
  • Material: tin-coated aluminium
  • IEC 61238-1 Class A
  • Environmentally friendly materials

Conductors per cross section (mm2) table >>

KKL Installation Instructions >>

Compatibility tables >>

Product details

SKU KKL2X300VM
Al mm² 95-300
Color Standard
Cu mm² 95-300
E-Number 1942115
EAN 6419410484340
In (Al) (A) 800
In (Cu) (A) 1040
Key size Hex 12
Mounting Bolt M12
Number of Conductors 2
Package size 3
Torque Al/Cu (Nm) 45 (95-120 mm²) / 75 (150-300 mm²)
Un (V) 690
Weight (lb/kg) 1.261 / 0.572

Dimensional drawing

Product diagram
