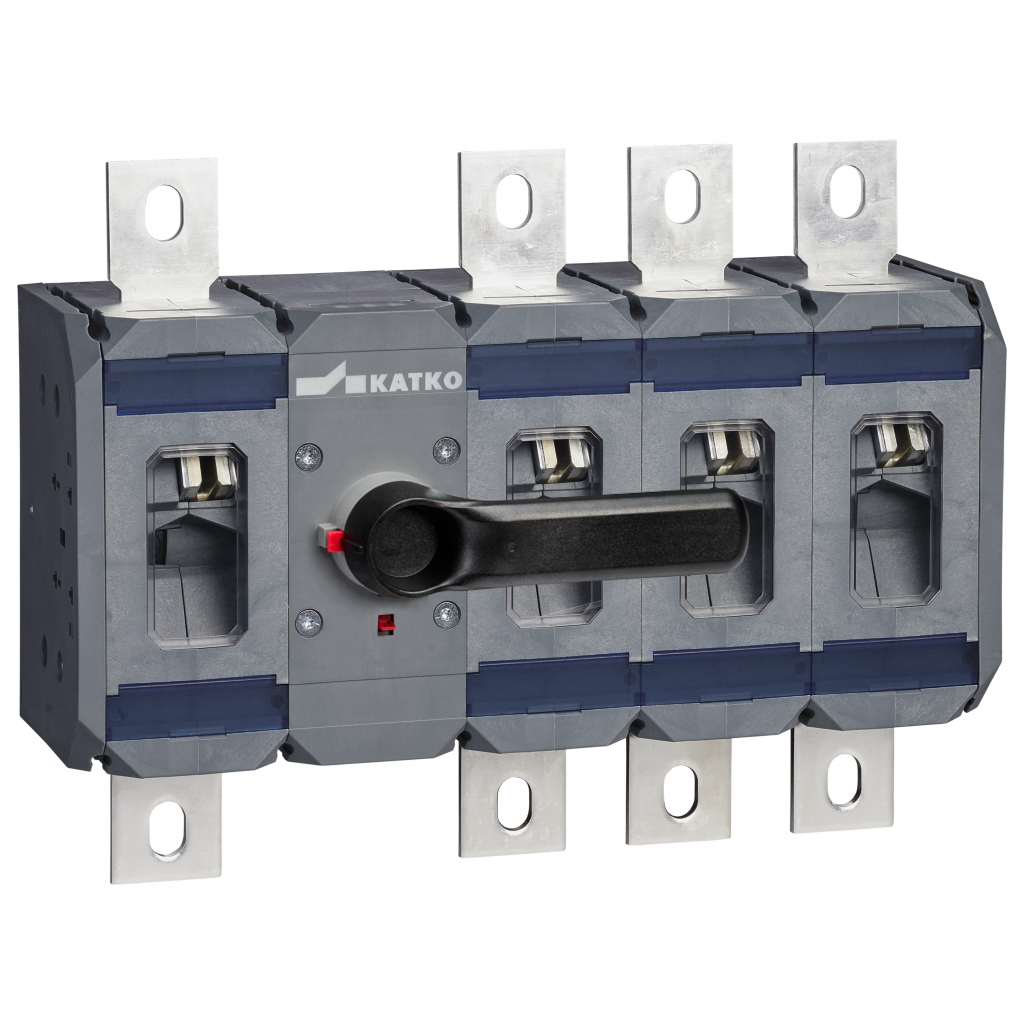

KU 4630 SV
KU Rotary switches and change-over switches 630-800A
- Made of halogen-free thermoplastic material. Materials have 100 % recyclability.
- Option for test position for testing auxiliary contacts while main contacts remain open. Note, only available on request.
- Reliable switch for demanding industrial applications
- Change-over switches: ‘CO’ included in type name
- Change-over switches with direct handle: ‘CO SV’ included in type name
- Change-over switches are always delivered with bridging bars
- Types without ‘SV’: Delivered with separate handle (LKX 150) and shaft (LVK=228)
- Available with yellow/red handle (LKX 150 Y/R) and a shaft of different length (100mm-500mm) on demand
- Types with ‘SV’: delivered with direct handle
- 800 A switch: AC-23 1000V 400 A
- Icw 690V (1s) 28kA
- R.M.S value 100kA
- Auxiliary contacts available (1.V160KU or 2.V160KU), up to 8 NC / 8 NO
- Terminal covers and phase barriers (VS800) available
- Cable connectors for Al and Cu cables available here.
|SKU||KU 4630 SV|
|AC-21 400/415 V (A)||630 A|
|AC-21 690 V (A)||630 A|
|AC-22 400/415 V (A)||630 A|
|AC-22 690 V (A)||630 A|
|AC-23 400/415 V (A/kW)||630 A / 355 kW|
|AC-23 690 V (A/kW)||630 A / 630 kW|
|Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size||M12|
|Number of Poles||4|
|Operation||Rotary, with direct handle|
|Switch type||Load Break Switch|
