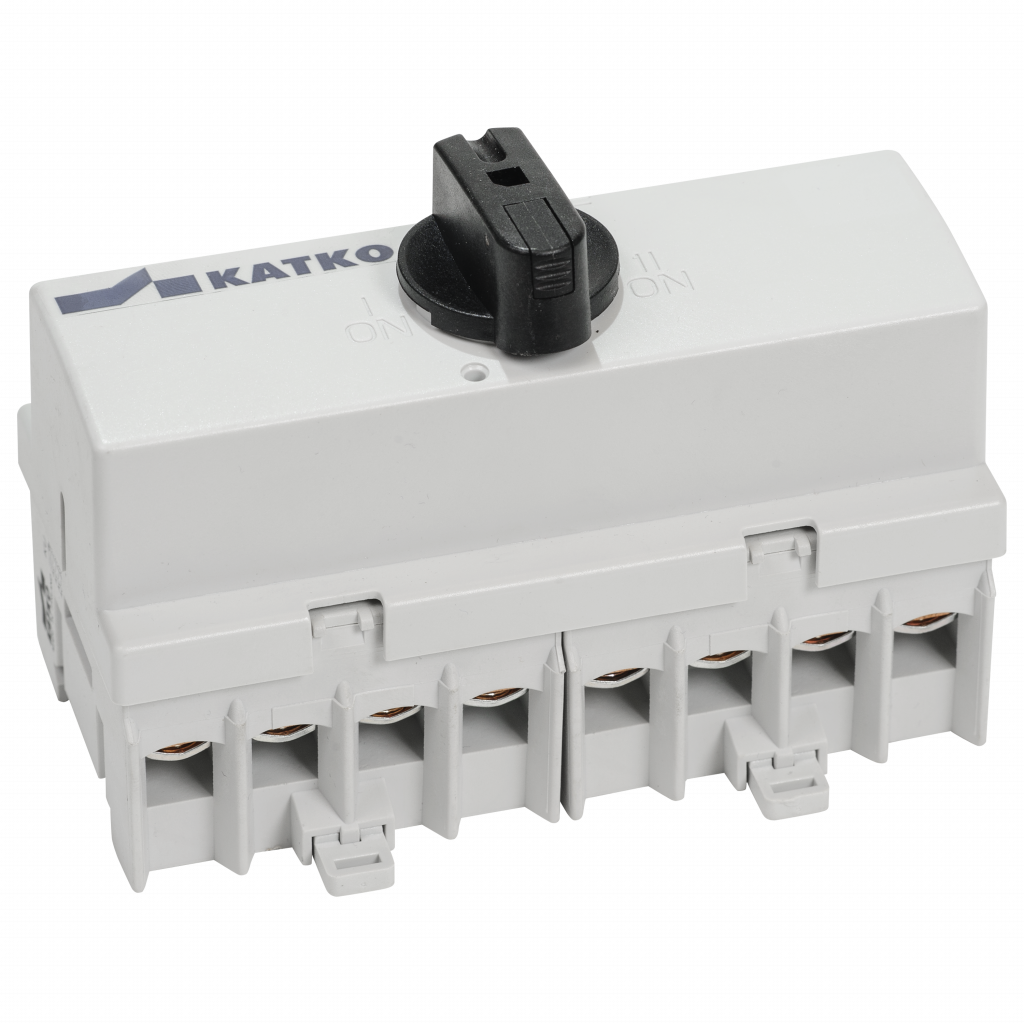

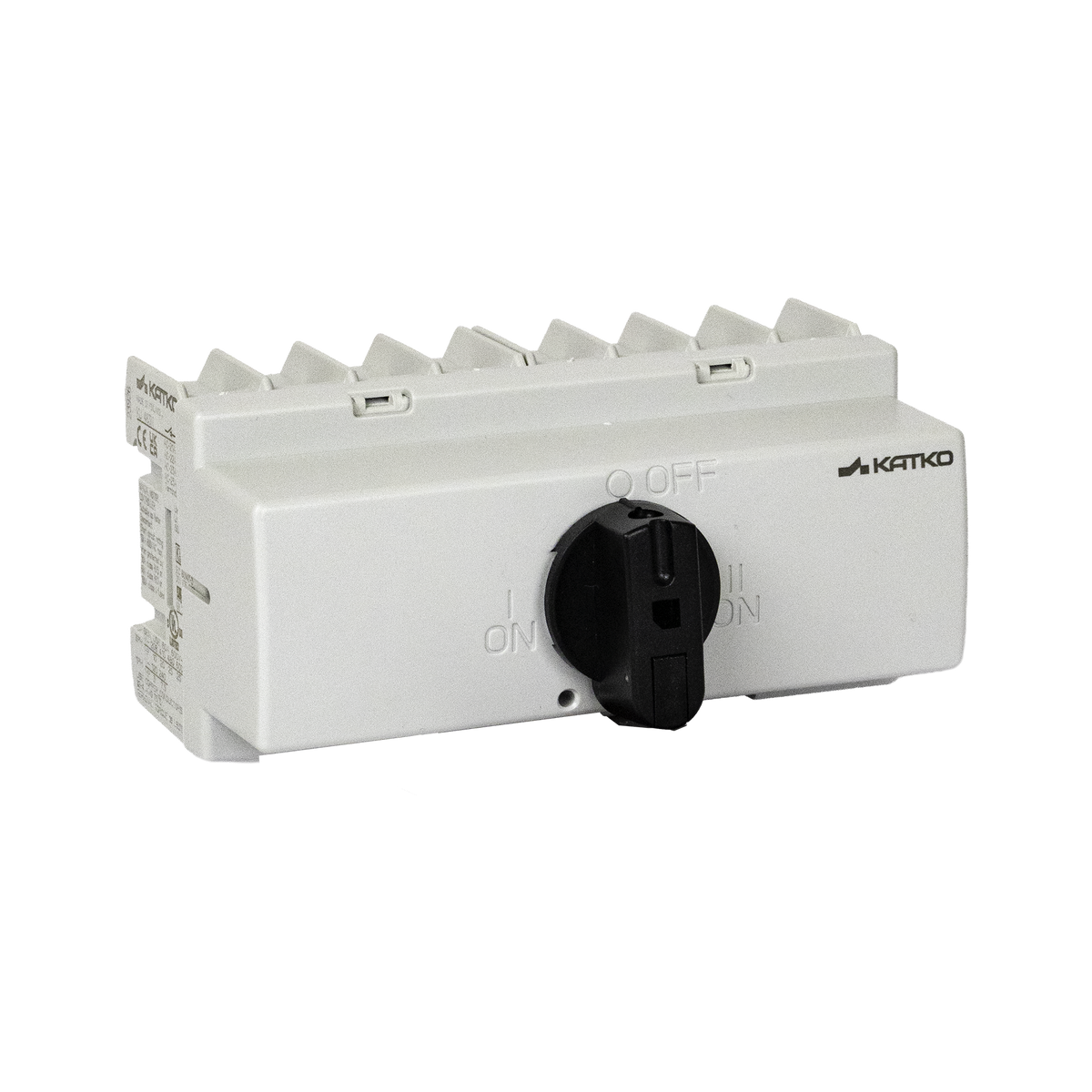

KU 425VV

KU Rotary switches and change-over switches 16-125A

  • Compact size
  • VV = change-over switch
  • DIN-rail mounting
  • 3-pole and 4-pole KU-switches as standard
  • 2-pole upon request
  • 6-pole and 8-pole versions consist of two 3-pole or 4-pole KU-switches connected by a parallel kit
  • Switch technology by means of silver contacts ensures safe and durable operation
  • Compatible with handles LK10 and LK11 (load break switches) and LK12 (change-over switches)
  • Shafts L=100/200/300 AD11 and L=100/200/300 AD11/VT (load break switches) and L=100/200/300 AD12/VT (change-over switches)
  • Tested according to IEC 60947-3
  • Available with CCC certificate, mention when ordering
  • Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.
Technical Data Accessories Handle & Shaft

KU Change-over Switches 10-800A

Product details

SKU KU 425VV
AC-22 400/415 V (A) 25 A
AC-22 690 V (A) 25 A
AC-23 400/415 V (A/kW) 25 A / 11 kW
AC-23 690 V (A/kW) 25 A / 22 kW
E-Number 3609263
EAN 6419410226797
Number of Poles 4
Operation Rotary
Switch type Change-over switch

Dimensional drawing

Product diagram
