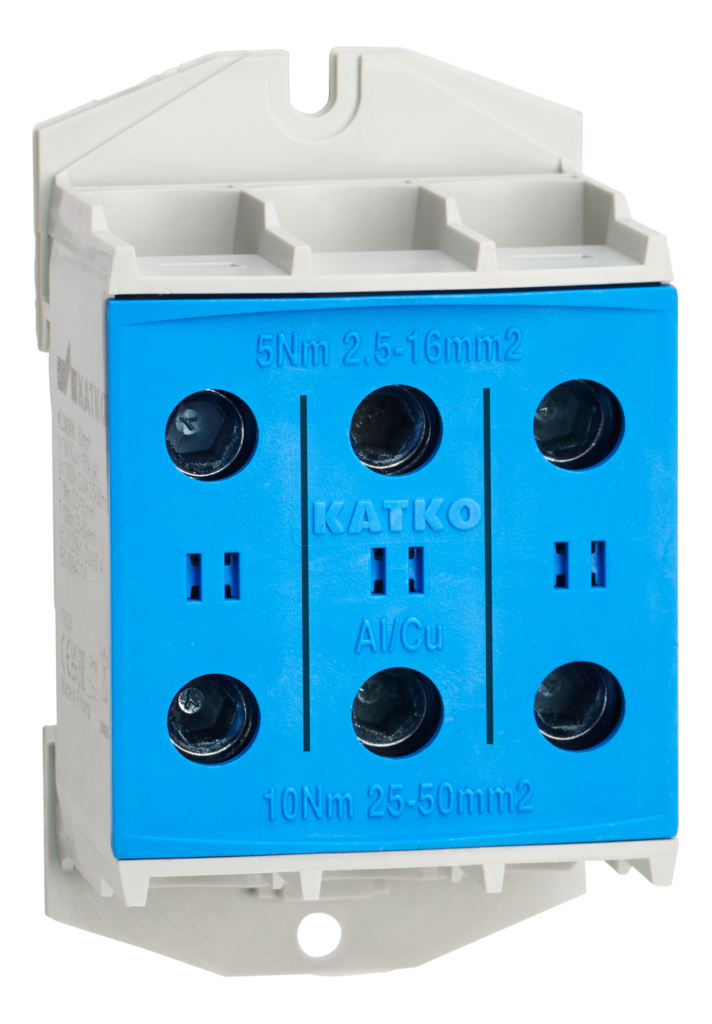

KL3X1X50N

Terminal Blocks

  • UL listed connectors, see link below
  • Sales unit = 1 piece
  • Bi-metal terminal suitable for Al (KL terminals) / Cu (KL and KC terminals) cables
  • Available in grey, blue (N) and yellow/green (PE)
  • 50 and 95 mm2 connectors also available as 1-pole branching connector (3x) and 3-pole connector (3x1x)
  • Touchproof, IP20
  • Housing and cover in polyamide
  • KL range: Certified according to IEC 61238-1 Class A
  • KL range: Certified according to IEC 60947-7-1
  • Terminal material KL tin-coated, greased aluminium
  • Terminal material KC steel and brass
  • KC-terminals and KL1X16 models for DIN-rail mounting, refer to detailed product specifications
  • KL-terminals (excl. KL1X16 models) for DIN-rail or base mounting, refer to detailed product specifications
  • Environmentally friendly materials
  • Durable laser markings
  • More information and package sizes from the catalogue
  • KLTS50 – 300 terminal shrouds available

Connector catalogue >>

Conductors per cross section (mm2) table >>

UL 1059 listed Terminal Blocks >>

Product details

SKU KL3X1X50N
Al mm² 2,5 - 50
Color N
Cu mm² 2,5 - 50
E-Number 1942136
EAN 6419410205624
In (Al) (A) 160
In (Cu) (A) 160
Key size Hex 5
Mounting Screw / DIN
Number of Conductors 6
Package size 10
Torque Al/Cu (Nm) 5 (2,5 - 16 mm²) / 10 (25 - 50 mm²)
Un (V) 1000
Weight (lb/kg) 0.216 / 0.098

Dimensional drawing

Product diagram
