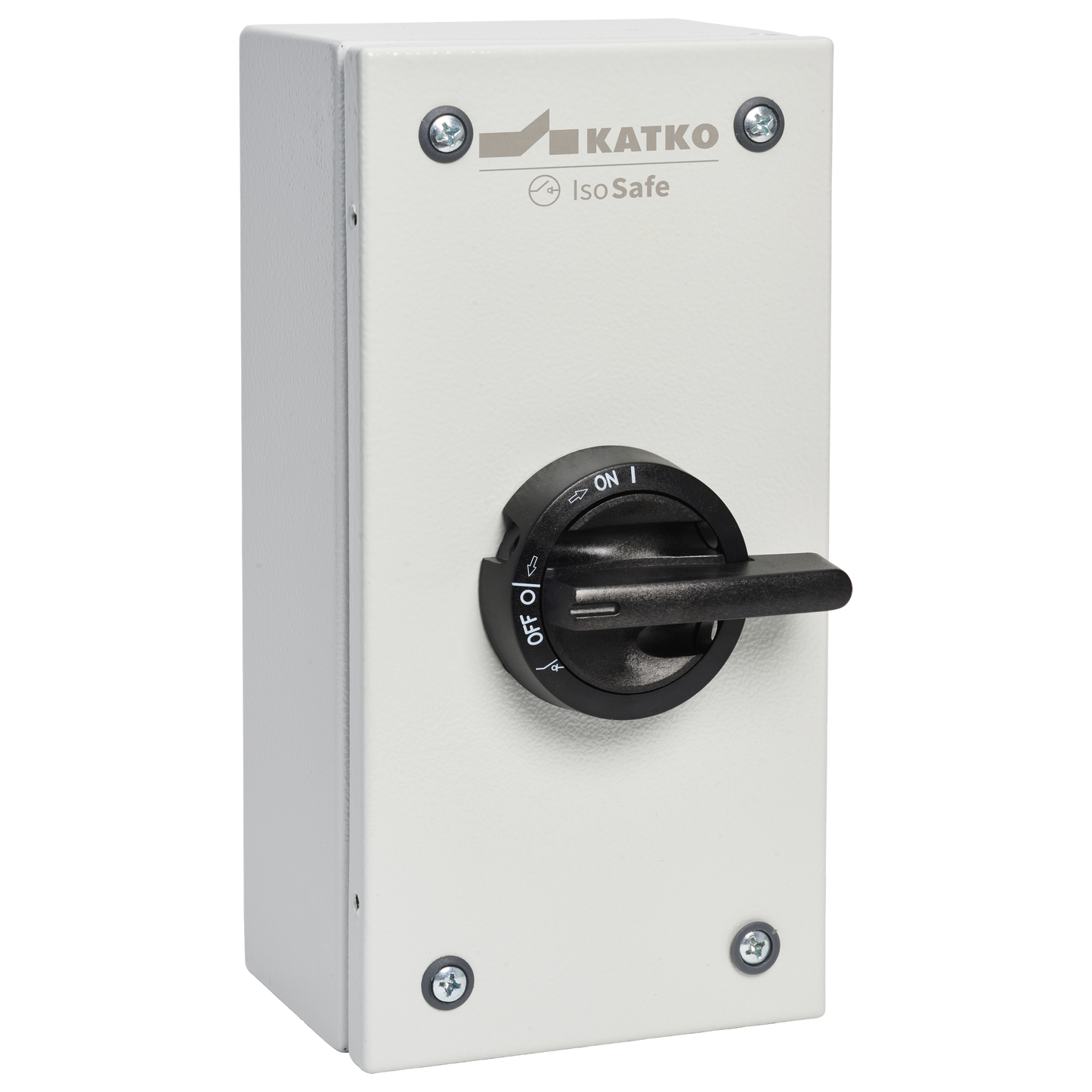

KKVT 332 T4

Enclosed switch fuses 16-630A

  • Available as 1P, 2P, 3P and 4P versions
  • KKVT/M/R (16 – 32 A) with KU switch and KV 10×38 fuse holder
  • KVKET/M/R (20-630 A) with KVKE switch fuse
  • Available as BS and DIN fuse version. DIN as standard
  • All versions available in grey/black or yellow/red. Grey/black as standard
  • M=polycarbonate, T=steel, R=stainless steel
  • Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.

Technical datasheet>>



Product details

AC-21 400/415 V (A) 32 A
AC-21 690 V (A) 32 A
AC-22 400/415 V (A) 32 A
AC-22 690 V (A) 32 A
AC-23 400/415 V (A/kW) 32 A / 15 kW
AC-23 690 V (A/kW) 32 A / 30 kW
Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size 1.5-16
Color Standard
EAN 6419410379202
Enclosure T4
Enclosure Type Sheet Steel
IP Rating 65
Number of Poles 3
Operation Front-operated
Switch type Switch Fuse
Weight (kg) 4.3
