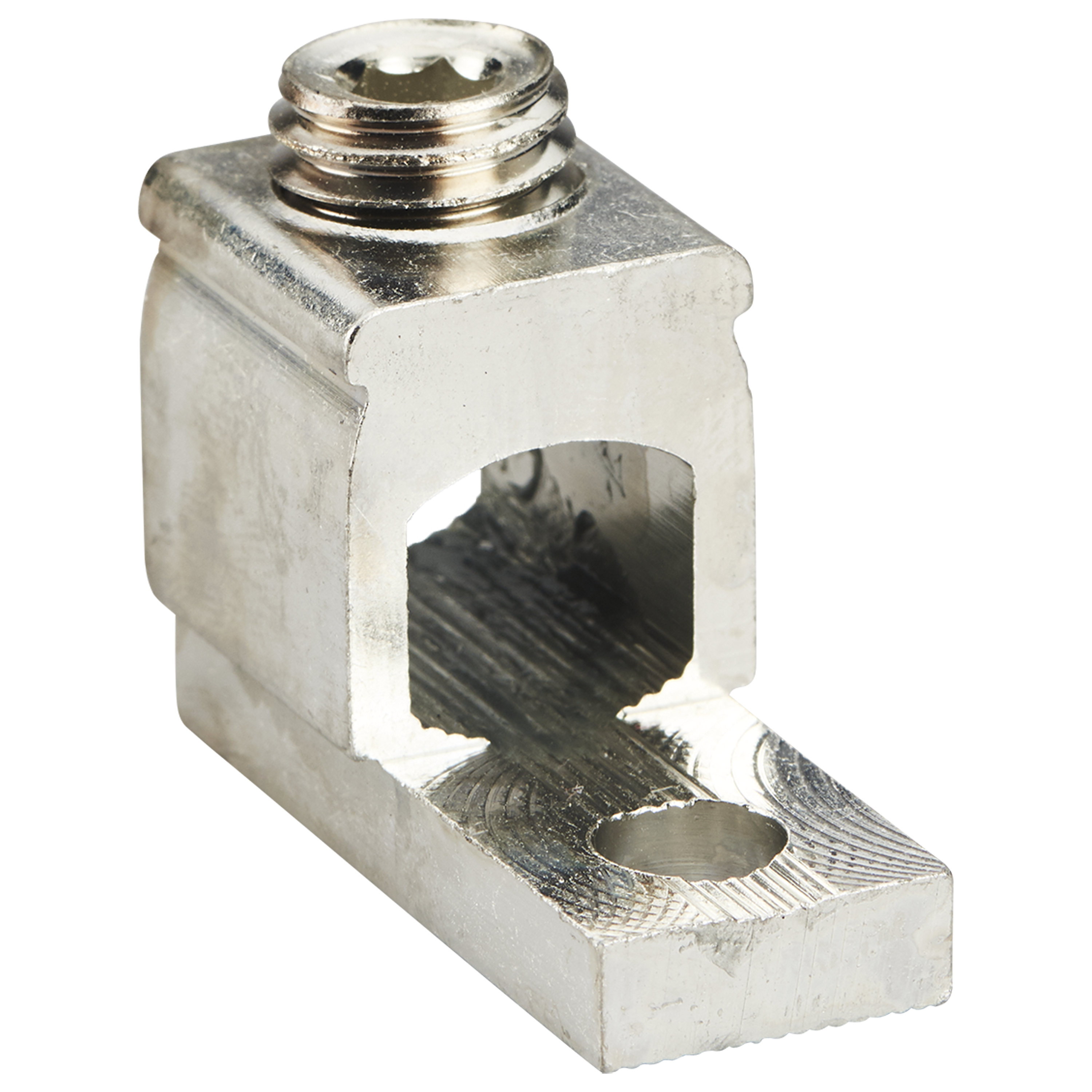

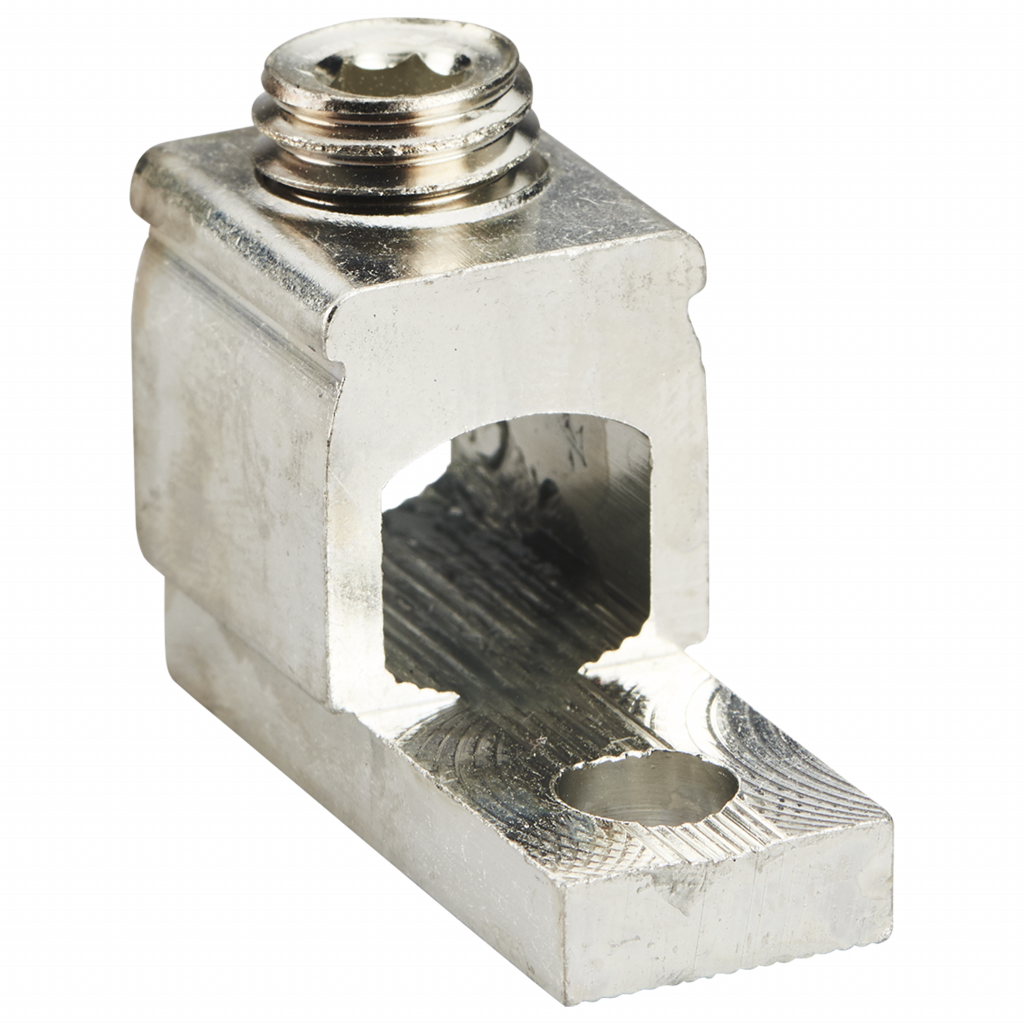

KKL1X95M
Cable Connectors
- Sales unit = 1 pc
- Suitable for Al/Cu cables
- Material: tin-coated aluminium
- IEC 61238-1 Class A
- Environmentally friendly materials
Conductors per cross section (mm2) table >>
Product details
| SKU | KKL1X95M |
|---|---|
| Al mm² | 6-95 |
| Color | Standard |
| Cu mm² | 6-95 |
| E-Number | 1942108 |
| EAN | 6419410378953 |
| In (Al) (A) | 200 |
| In (Cu) (A) | 245 |
| Key size | Hex 6 |
| Mounting | Bolt M8 |
| Number of Conductors | 1 |
| Package size | 48 |
| Torque Al/Cu (Nm) | 12 (16-50 mm²) / 22 (70-95 mm²) |
| Un (V) | 690 |
| Weight (lb/kg) | 0.066 / 0.03 |
Dimensional drawing
