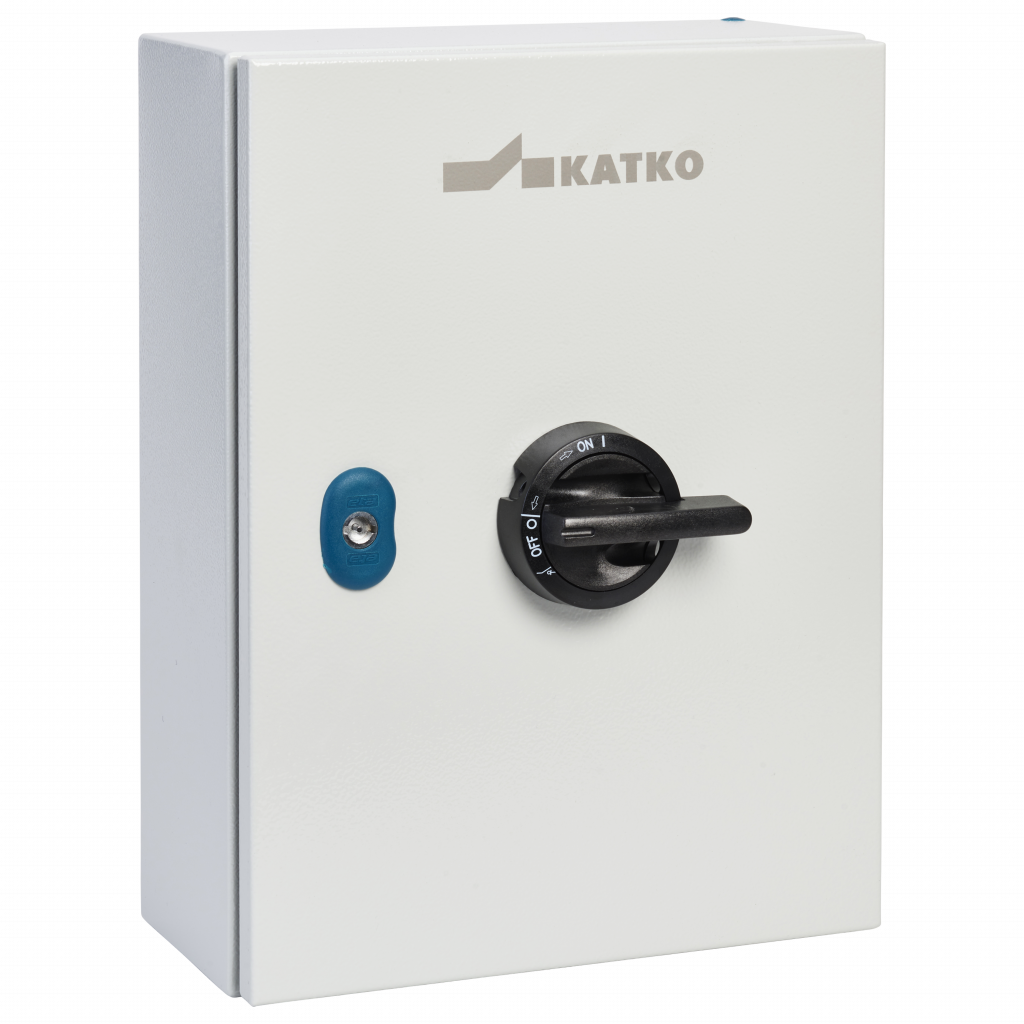

KET 8125 T5

KET Sheet Steel 16-1600A

  • IP65
  • Good corrosion resistance
  • Wide operating temperature range
  • Padlockable
  • Door interlock with defeat mechanism
  • Excellent insulating properties
  • Good UV resistance
  • Good resistance against many chemicals
  • Tested according to IEC 60947-3
  • Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.

Technical datasheet >>



Product details

SKU KET 8125 T5
AC-21 400/415 V (A) 160 A
AC-21 690 V (A) 160 A
AC-22 400/415 V (A) 125 A
AC-22 690 V (A) 125 A
AC-23 400/415 V (A/kW) 125 A / 55 kW
AC-23 690 V (A/kW) 80 A / 75 kW
Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size 6-70
Color Standard
EAN 6419410338919
Enclosure T5
Enclosure Type Sheet Steel
IP Rating 65
Number of Poles 8
Operation Front-operated
Switch type Load Break Switch
Weight (kg) 8.8

Dimensional drawing

Product diagram
