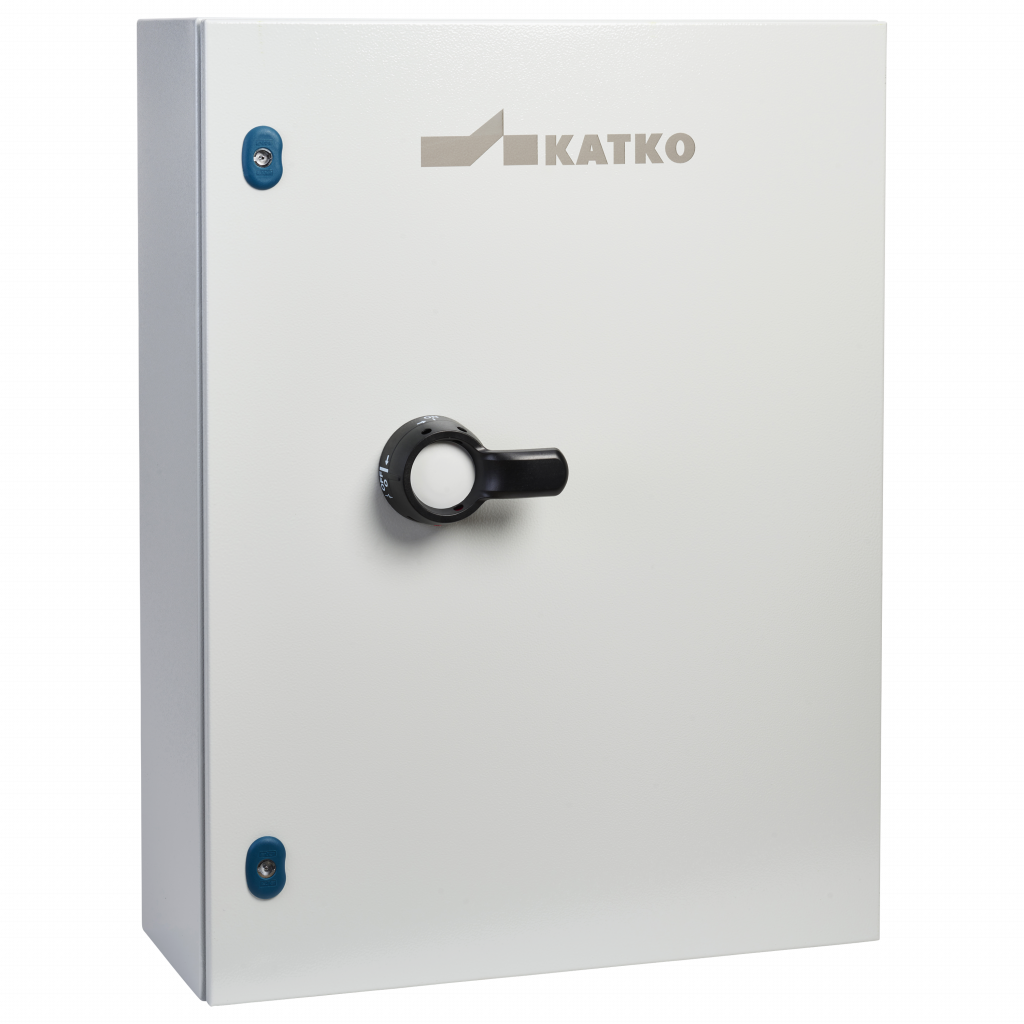

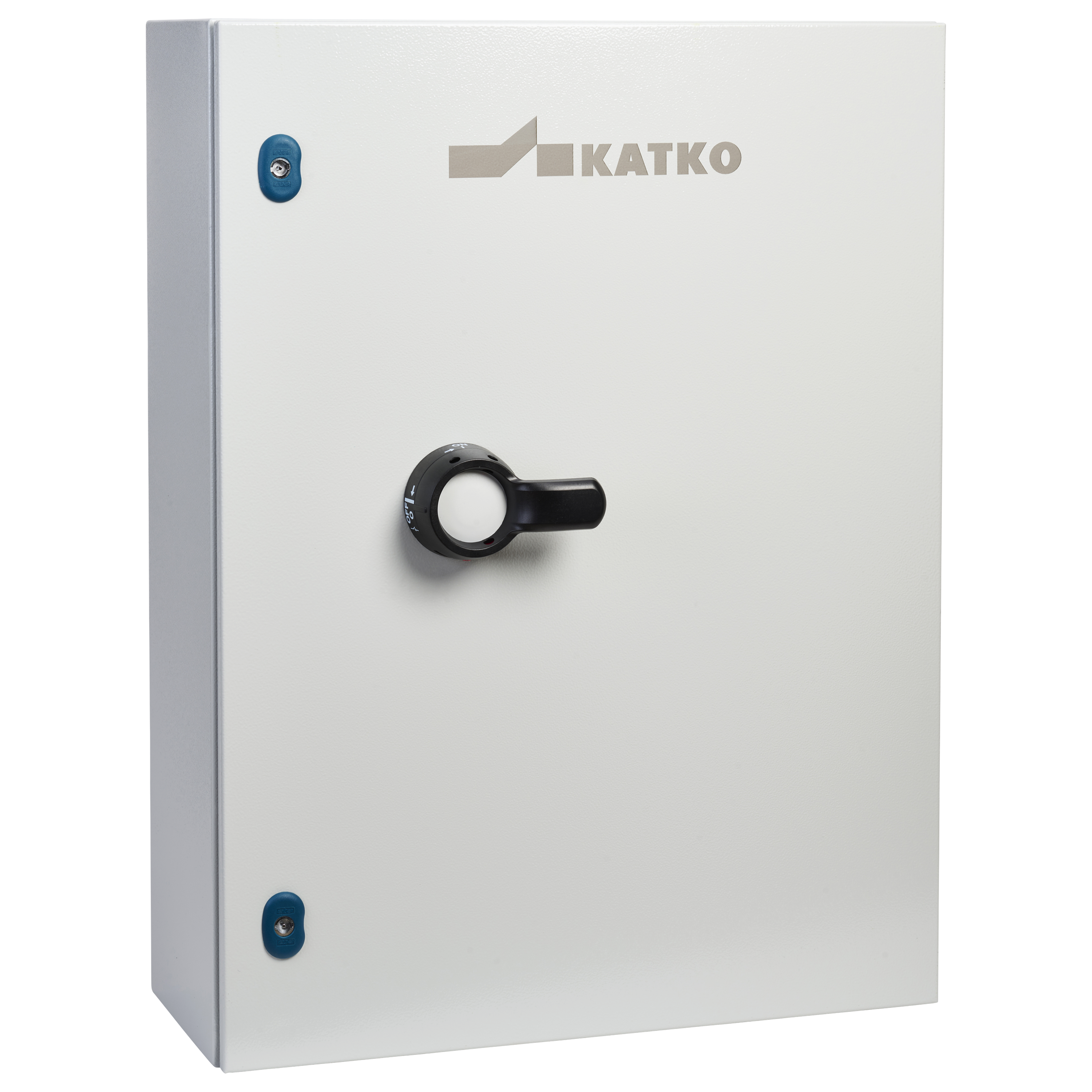

KET 3400 T7EMC 2XM63MEMC

EMC Switches 10-630A

  • Electromagnetic compatibility ensures safe operation in environments with electromagnetic disturbance
  • Tested according to EMC EN 61000-6-3:2007+A1(2011) with EMC- glands shielded power cable
  • IP66
  • Available in polycarbonate up to 125 A, aluminium up to 160 A and sheet steel up to 630 A
  • Padlockable
  • EMC cable glands included
  • Door interlock with defeat mechanism
  • Tested according to IEC 60947-3
  • Also available with 4, 6 or 8-poles
  • Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.

Technical datasheet >>

Accessories

Product details

SKU KET 3400 T7EMC 2XM63MEMC
AC-21 400/415 V (A) 400 A
AC-21 690 V (A) 400 A
AC-22 400/415 V (A) 400 A
AC-22 690 V (A) 400 A
AC-23 400/415 V (A/kW) 400 A / 200 kW
AC-23 690 V (A/kW) 400 A / 355 kW
Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size M10
Cable Gland According to order
Color Standard
EAN 6419410336687
Enclosure T7
Enclosure Type Sheet Steel
IP Rating 65
Number of Poles 3
Operation Front-operated
Switch type Load Break Switch
Weight (kg) 20

Dimensional drawing

Product diagram
