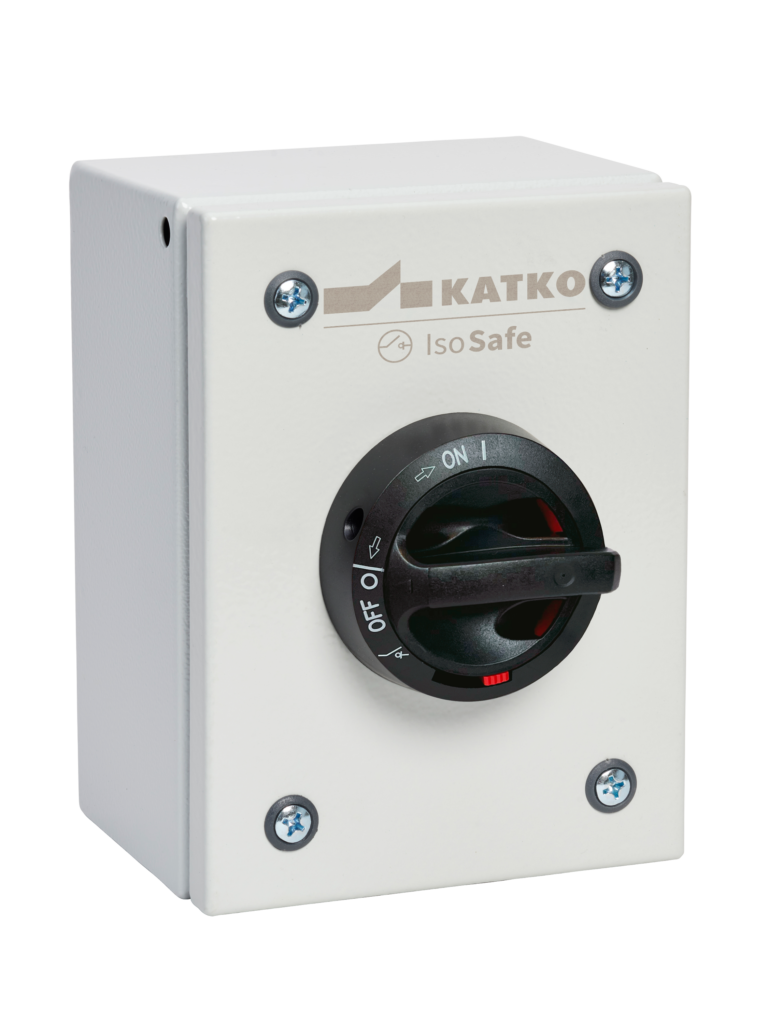

KET 280 T3
KET Sheet Steel 16-1600A
- Good corrosion resistance
- Wide operating temperature range
- Door interlock with defeat mechanism
- Excellent insulating properties
- Good UV resistance
- Good resistance against many chemicals
- Tested according to IEC 60947-3
- Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.
|SKU||KET 280 T3|
|AC-21 400/415 V (A)||100 A|
|AC-22 400/415 V (A)||80 A|
|AC-23 400/415 V (A/kW)||63 A / 11 kW (240V)|
|Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size||2.5-35|
|Enclosure Type||Sheet Steel|
|Number of Poles||2|
|Switch type||Load Break Switch|
