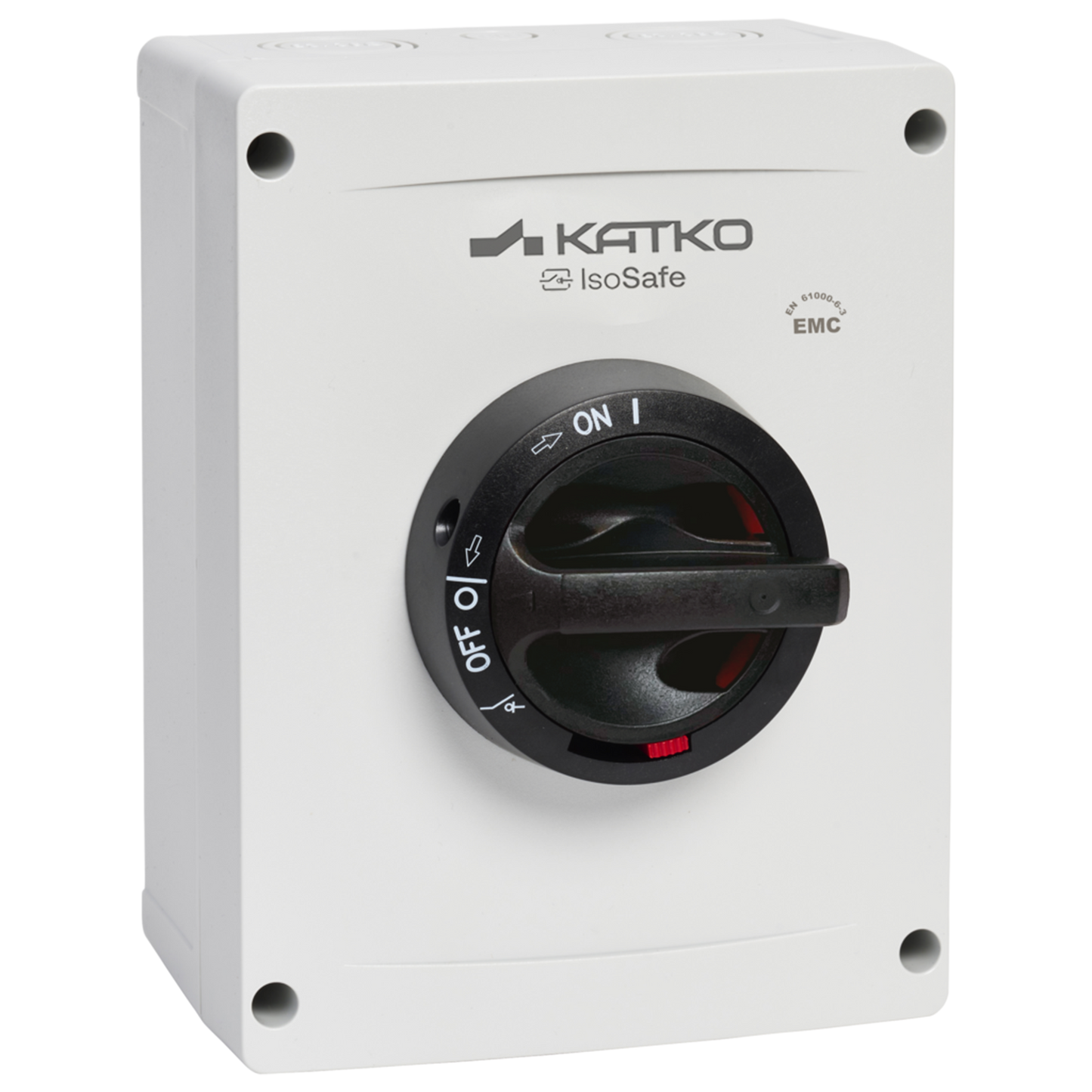

KEM 360UL M3EMC 2XM32MEMC

UL Listed EMC-Protected enclosed manual motor controllers 16-125A

  • Electromagnetic compatibility ensures safe operation in environments with electromagnetic disturbance
  • Tested according to EN 55011 with EMC glands shielded power cable
  • Nema Type 4X: M2, M3, MF10, MF11, RA2, RA4 enclosures
  • Nema Type 4: A2, A4, T3 enclosures
  • Up to 150A/75HP/600V, refer to detailed product specifications
  • Easy to install auxiliary contacts
  • Padlockable
  • Also available as 4-, 6- and 8-pole versions
  • EMC cable glands included
  • KEM = Polycarbonate
  • KEA = Aluminium
  • KET = Sheet steel
  • KER = Stainless steel
  • Cable glands:
    • KEM: 16-40A = 2xM25, 60-80A = 2xM32
    • KEA: 16-40A = 2xM25, 60-125A = 2xM40
    • KET: 16-40A = 2xM25, 60-80A = 2xM32, 100-150A = 2xM40
    • KER: 16-40A = 2xM25, 60-80A = 2xM32, 100-125A = 2xM40

Product details

SKU KEM 360UL M3EMC 2XM32MEMC
Ampere Rating (600V) 60 A
Color Standard
EAN 6419410307953
Enclosure M3
HP 208V 10HP
HP 240V 10HP
HP 480V 25HP
HP 600V 25HP
NEMA Rating 4X
Number of Poles 3
Weight (lb/kg) 1.543 / 0.7
Wire Size (Cu Only) 12-4AWG

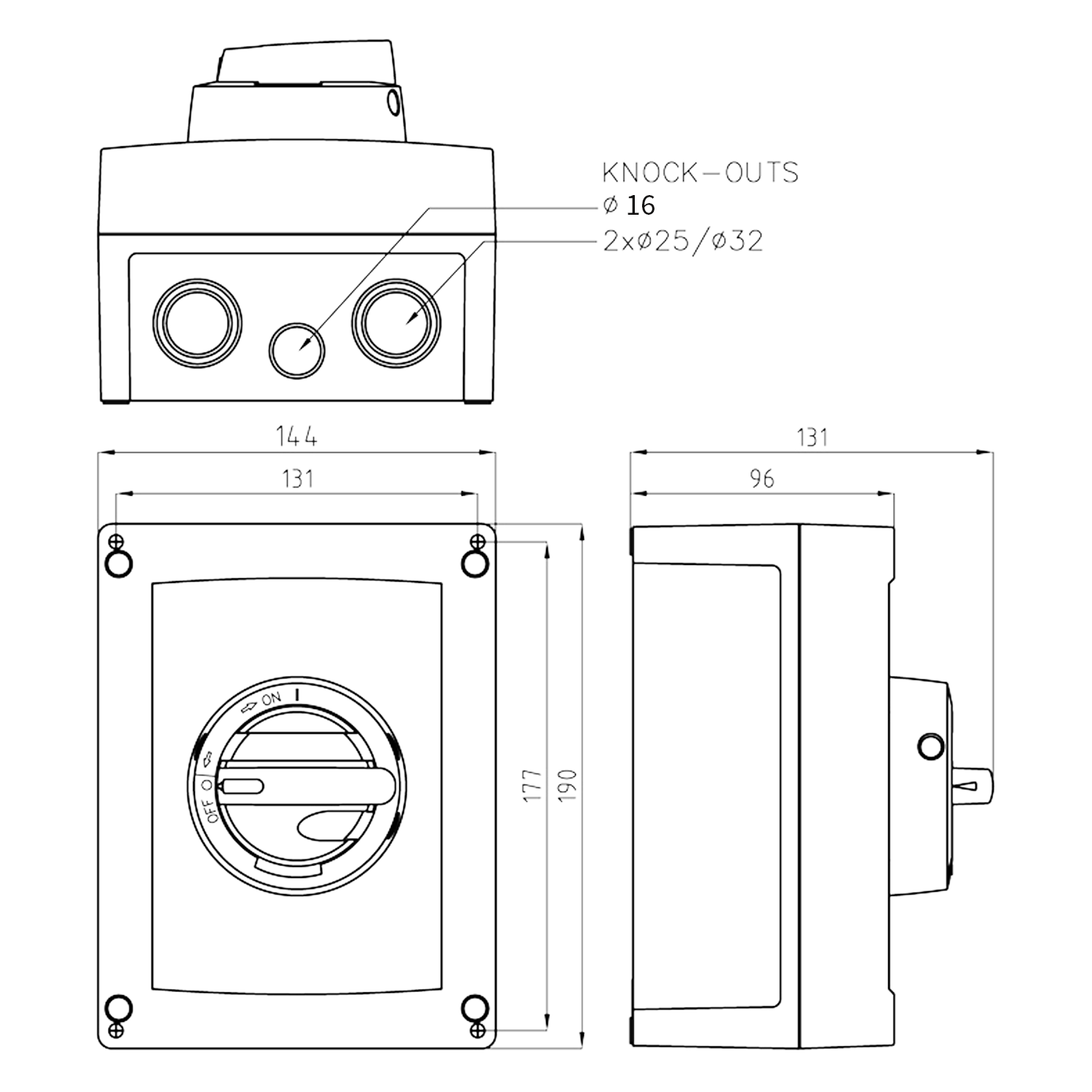

Dimensional drawing

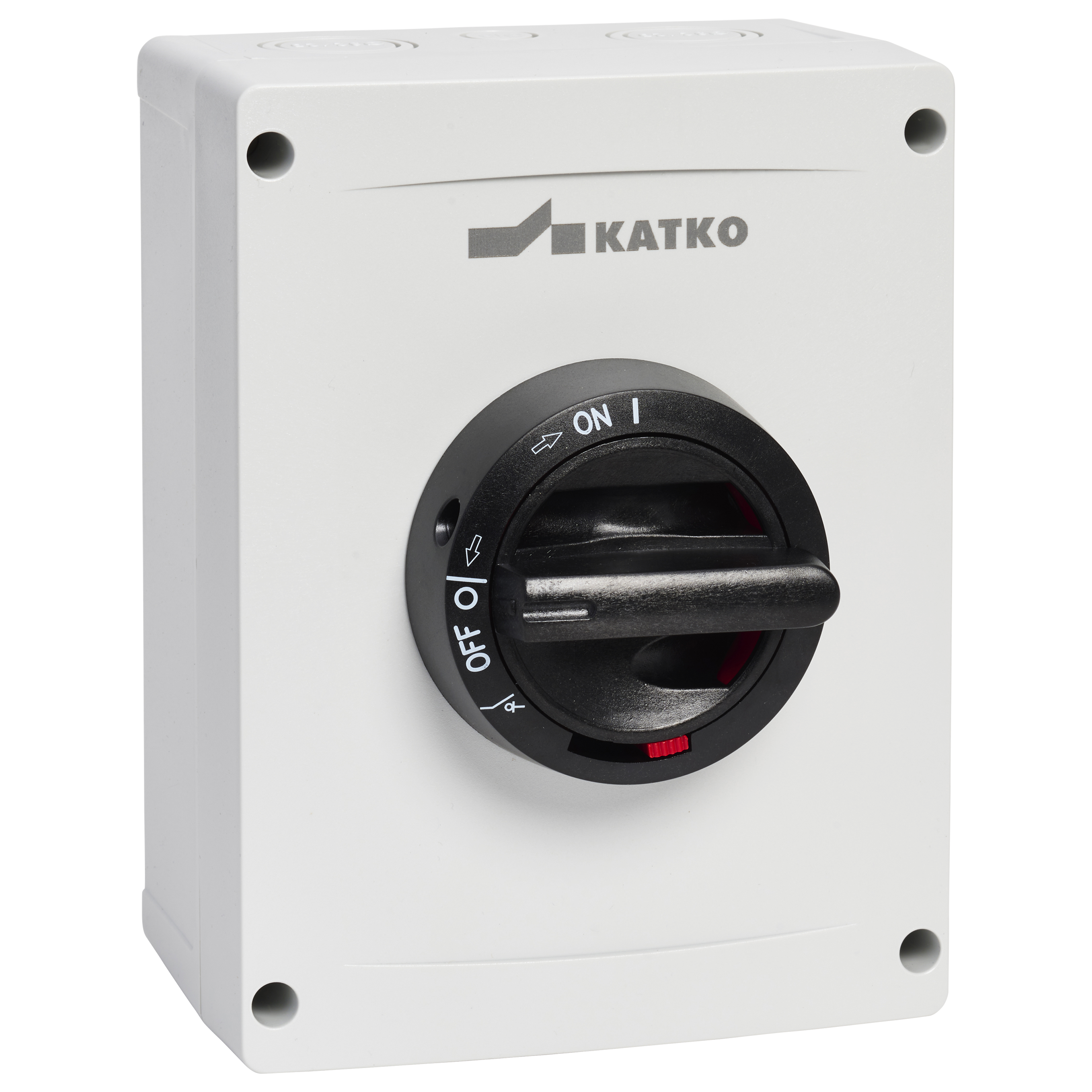

Product diagram
