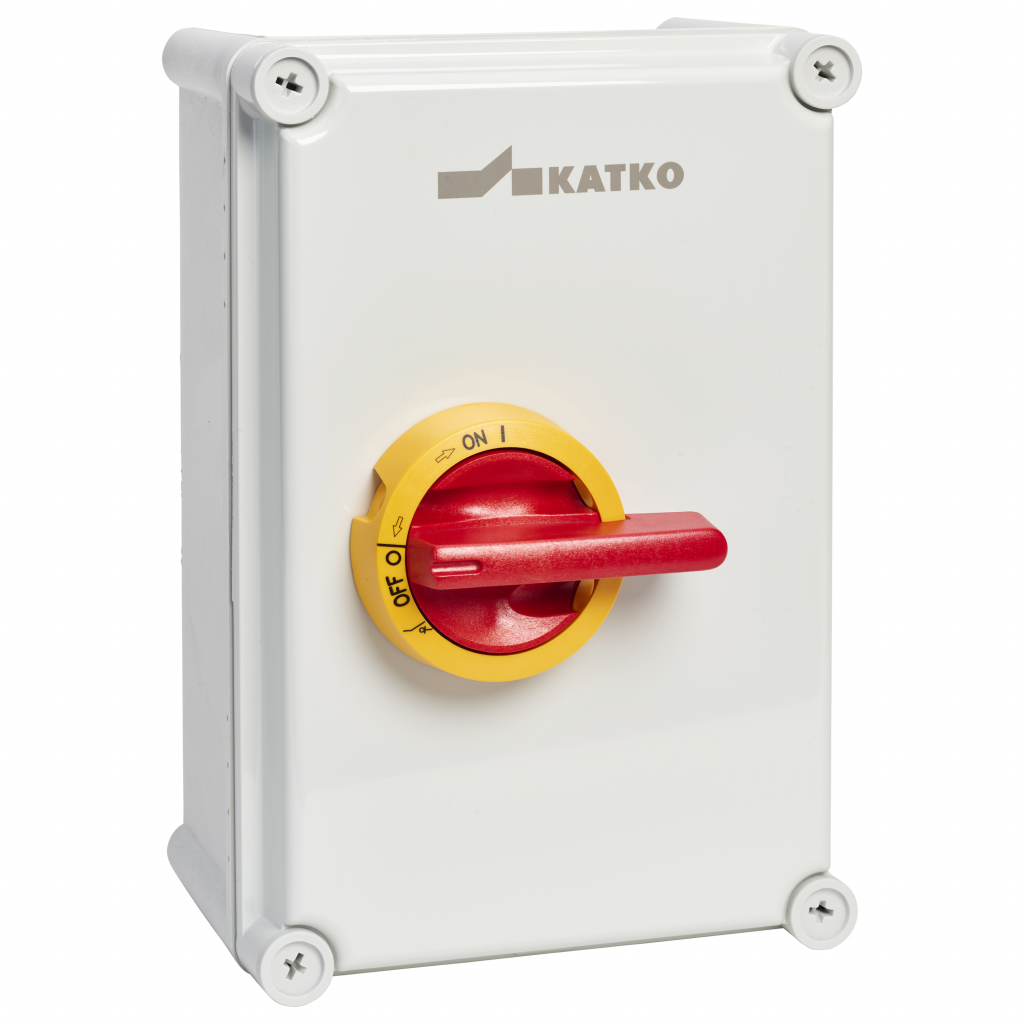

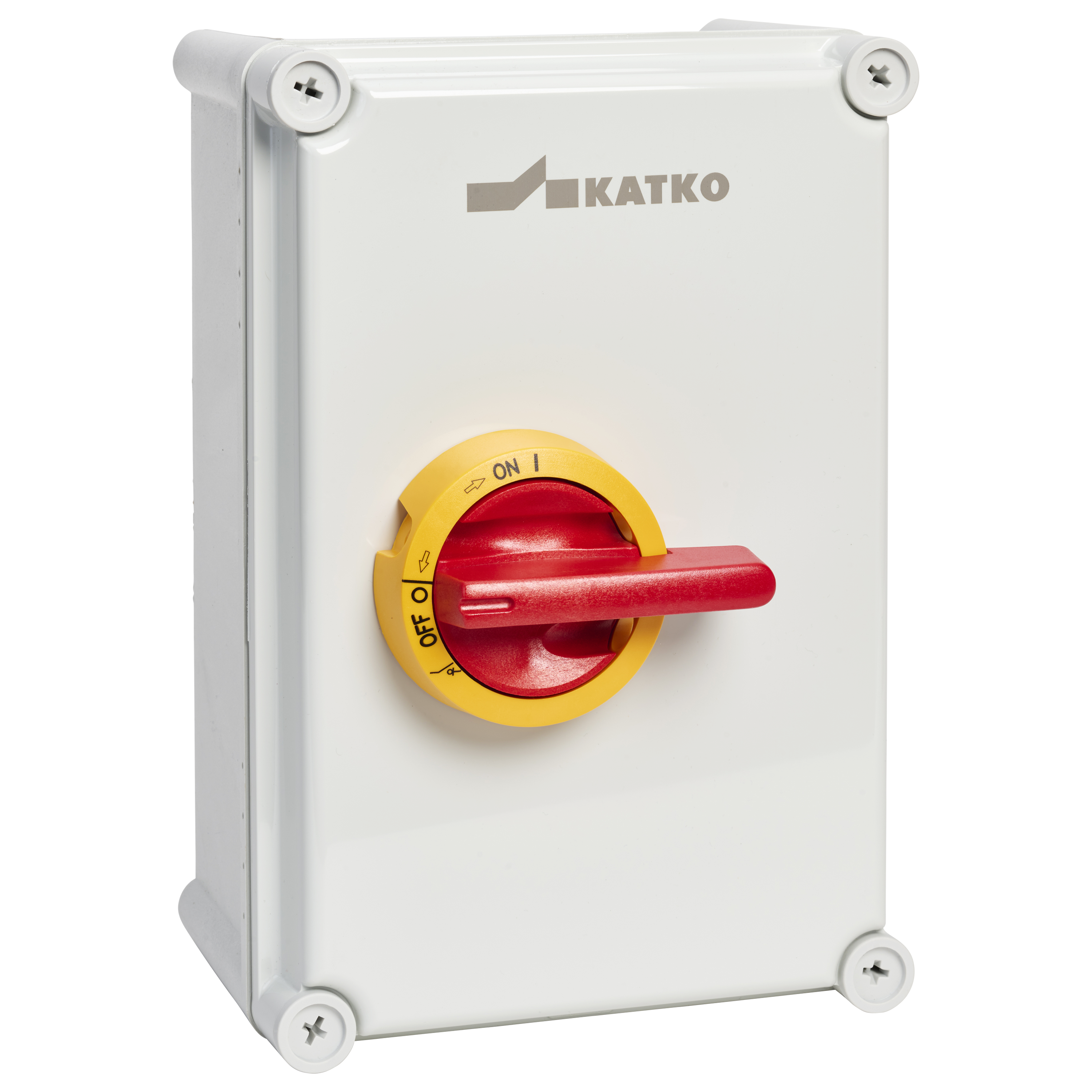

KEM 3100L YR MF10

UL Listed polycarbonate enclosed manual motor controllers 16-150A

  • Manual motor controller with disconnector means
  • Type 4X enclosure
  • Across the line, motor starting up to 75 HP/600 V
  • General use rating from 25A to 125A/600V, refer to detailed product specifications
  • Retrofit snap on auxiliary contacts
  • Padlockable with three locks
  • UL 60947-4-1A

Product details

Ampere Rating (600V) 100 A
Color Yellow / Red
EAN 6419410351154
Enclosure MF10
HP 208V 15HP
HP 240V 20HP
HP 480V 40HP
HP 600V 50HP
NEMA Rating 4X
Number of Poles 3
Weight (lb/kg) 5.292 / 2.4
Wire Size (Cu Only) 8-1/0AWG

Dimensional drawing

Product diagram
