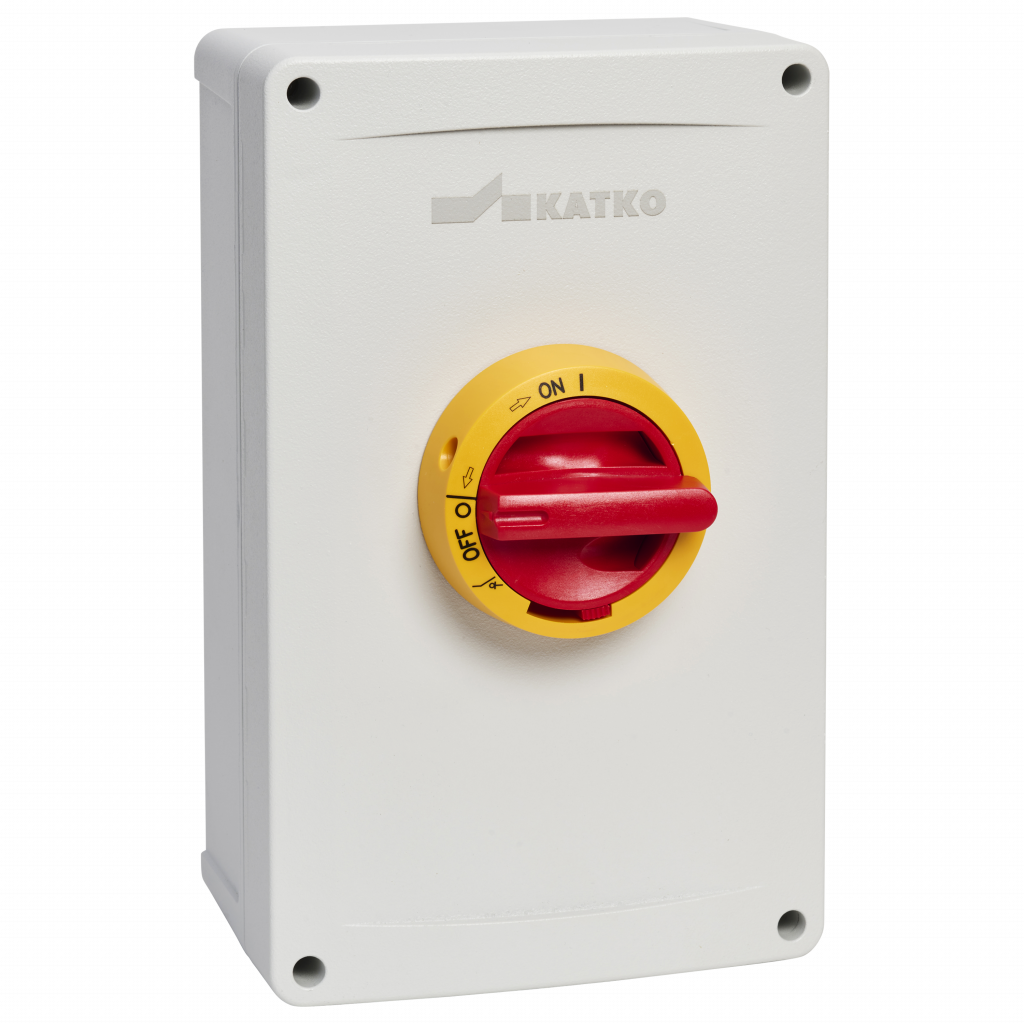

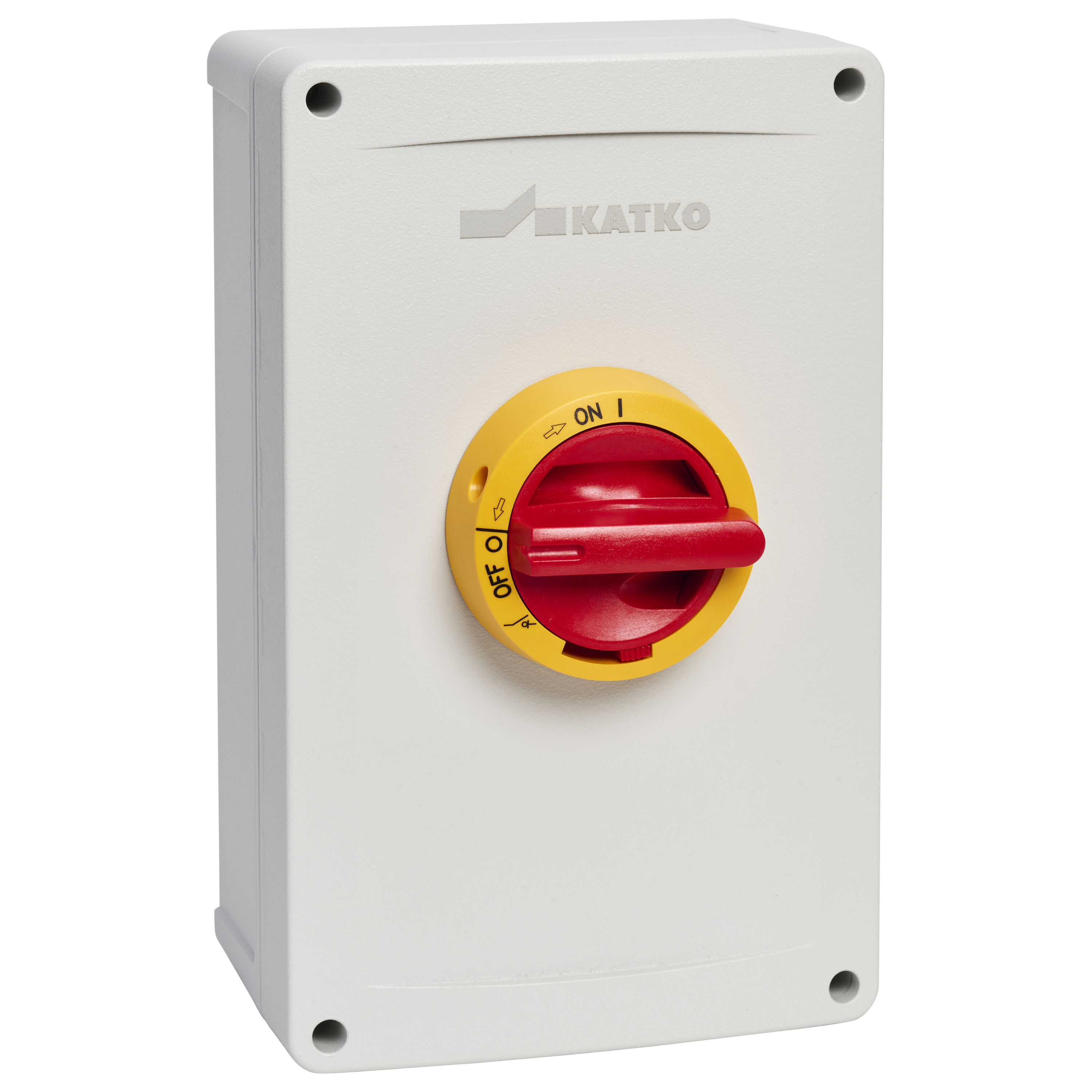

KEA 3160 YR A4EMC 2XM40MEMC KST16M

EMC Switches 10-630A

  • Electromagnetic compatibility ensures safe operation in environments with electromagnetic disturbance
  • Tested according to EMC EN 61000-6-3:2007+A1(2011) with EMC- glands shielded power cable
  • IP66; Enclosure types M2, M3, A2, A4
  • IP65; Enclosure types T5, T6, T7
  • Available in polycarbonate up to 125 A, aluminium up to 160 A and sheet steel up to 630 A
  • Padlockable
  • EMC cable glands included
  • Door interlock with defeat mechanism
  • Tested according to IEC 60947-3
  • Also available with 4, 6 or 8-poles
  • Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.

Technical datasheet >>

Accessories

Product details

SKU KEA 3160 YR A4EMC 2XM40MEMC KST16M
AC-21 400/415 V (A) 160 A
AC-21 690 V (A) 160 A
AC-22 400/415 V (A) 160 A
AC-22 690 V (A) 160 A
AC-23 400/415 V (A/kW) 160 A / 90 kW
AC-23 690 V (A/kW) 100 A / 90 kW
Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size 6-70
Cable Gland 2xM40
Color Yellow / Red
EAN 6419410315552
Enclosure A4
Enclosure Type Aluminium
IP Rating 66
Number of Poles 3
Operation Front-operated
Switch type Load Break Switch
Weight (kg) 3.5

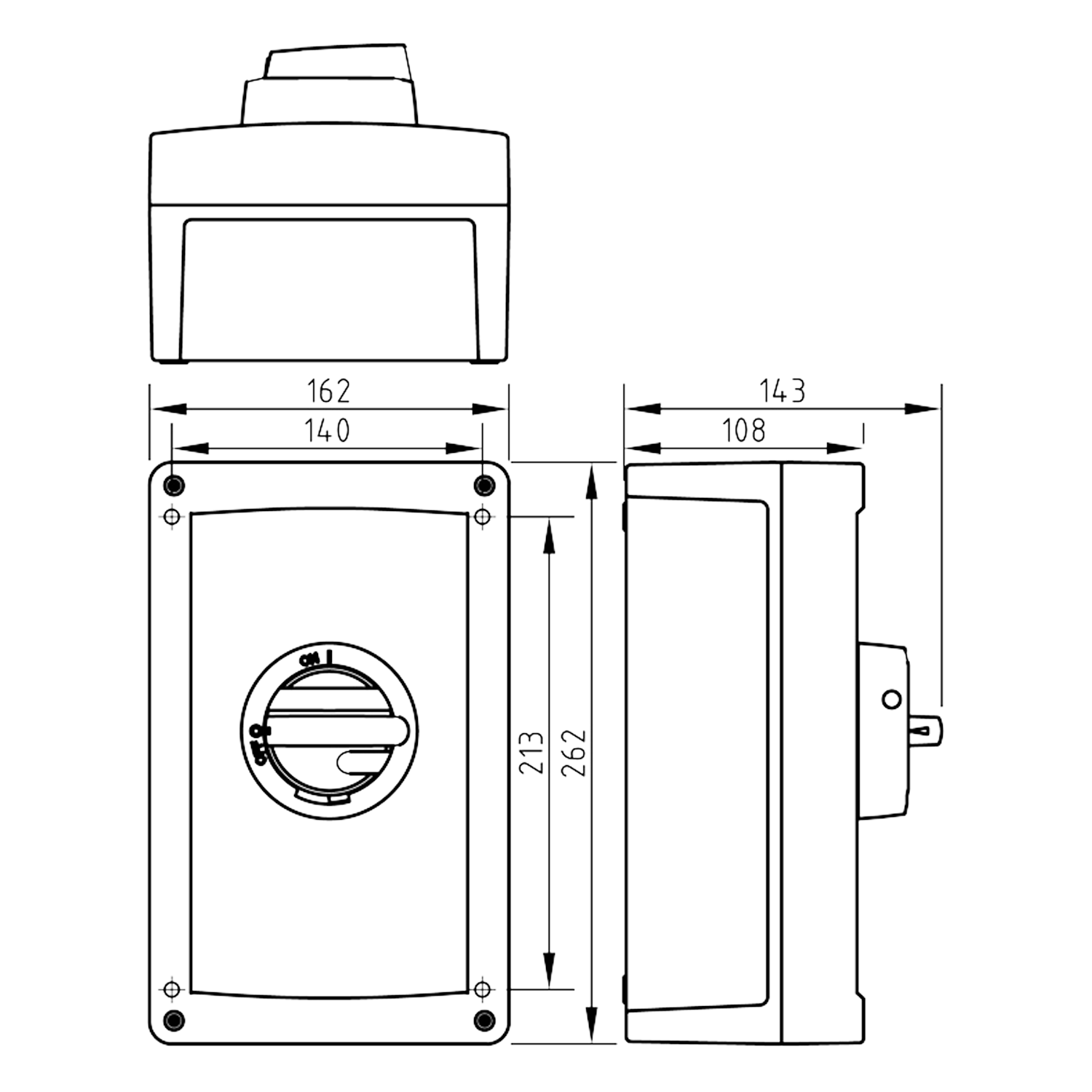

Dimensional drawing

Product diagram
