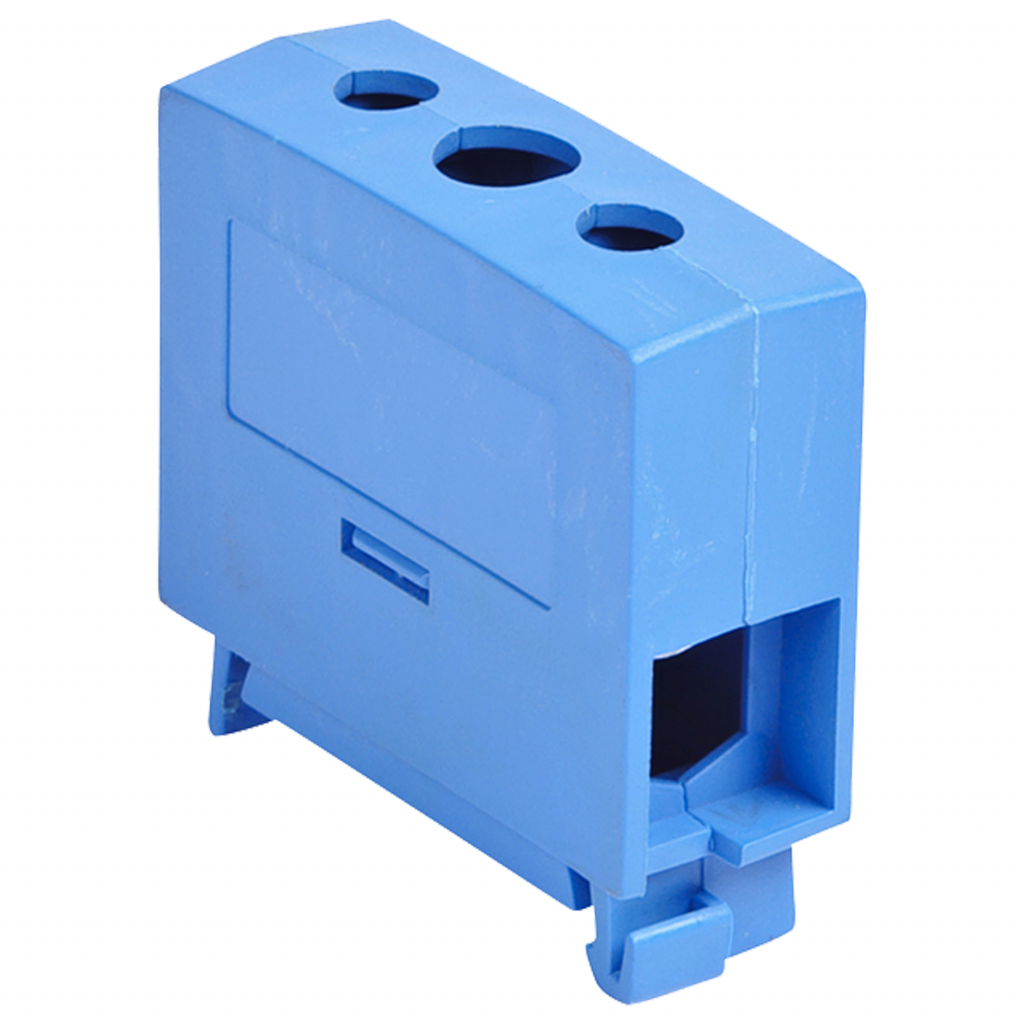

KC1X16N
Terminal Blocks
- UL listed connectors, see link below
- Bi-metal terminal suitable for Al (KL terminals) / Cu (KL and KC terminals) cables
- Available in grey, blue (N) yellow/green (PE), red (P) and black (M)
- 50 and 95 mm2 connectors also available as 1-pole branching connector (3x) and 3-pole connector (3x1x)
- 1000 VAC and 1500 VDC
- Touchproof, IP20
- Operating temperature is -25 ℃ …+80 ℃
- KC-terminals and KL1X16 models for DIN-rail mounting, refer to detailed product specifications
- KL-terminals (excl. KL1X16 models) for DIN-rail or base mounting, refer to detailed product specifications
- Housing and cover in polyamide
- Terminal material KL tin-coated, greased aluminium
- Terminal material KC steel and brass
- Environmentally friendly materials
- Durable laser markings
- Sales unit = 1 piece
Certificates:
- KL range: Certified according to IEC 61238-1 Class A
-
KL range: Certified according to IEC 60947-7-1
Accessories:
- KLTS50 – 300 terminal shrouds available
Related materials:
Product details
| SKU | KC1X16N |
|---|---|
| Al mm² | - |
| Color | N |
| Cu mm² | 1,5-16 |
| E-Number | 1942009 |
| EAN | 6419410357217 |
| In (Cu) (A) | 63 |
| Key size | PZ2 |
| Mounting | DIN |
| Number of Conductors | 2 |
| Package size | 100 |
| Torque Al/Cu (Nm) | 1,8 |
| Un (V) | 800 |
| Weight (lb/kg) | 0.046 / 0.021 |
Dimensional drawing
