Data subject to change without notice. Always confirm the data is correct from the seller.

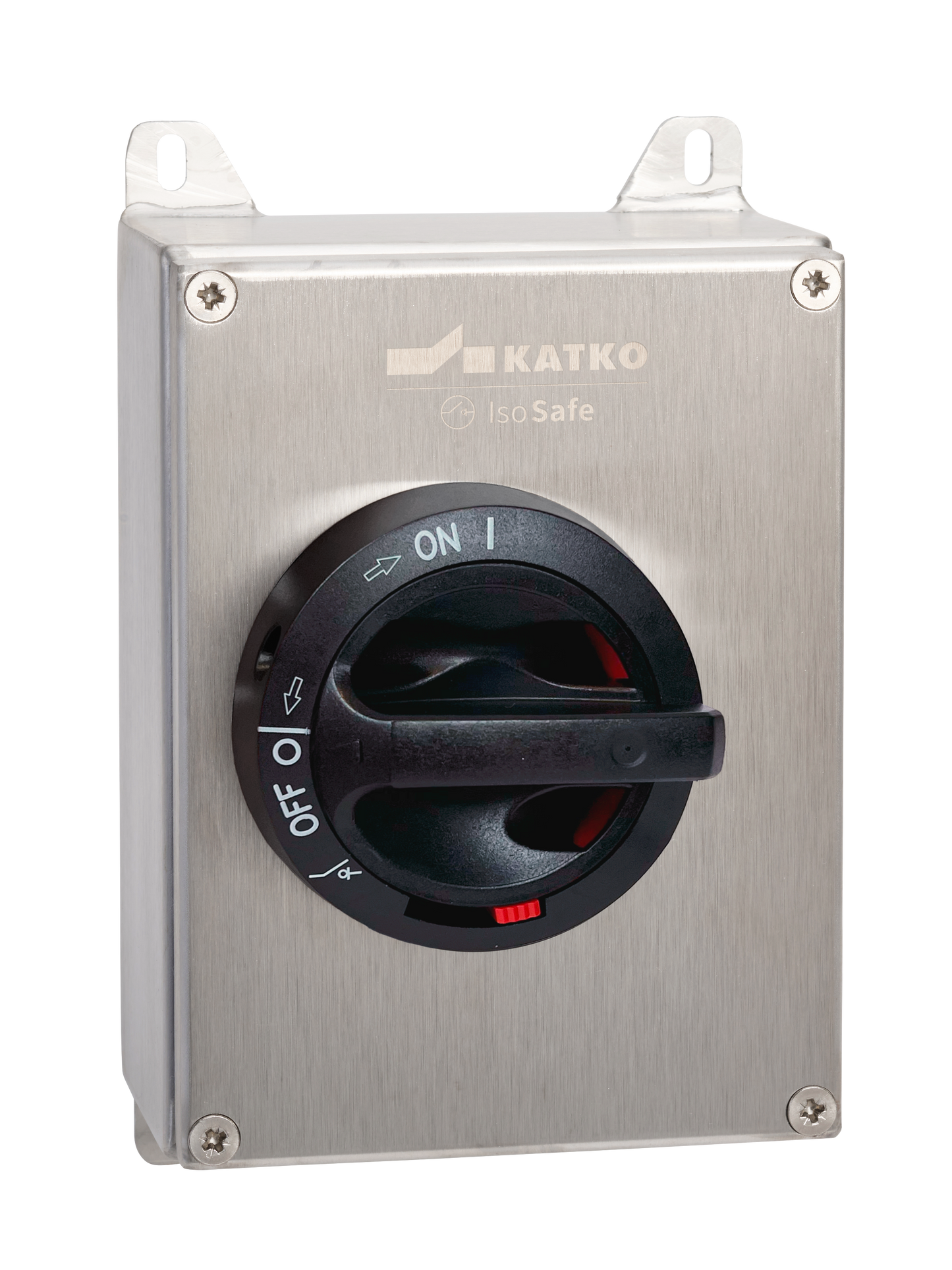

ISF 430UL RA2

UL listed enclosed manual motor controllers ISF-series 16-40A

  • Available in polycarbonate (M2 & M3), aluminium (A2), sheet steel (T3) and acid proof steel AISI 316L (RA2, RA4, RA2R & RA2RS)
  • ISF models with new 16-40 A LoadSafe switches
  • Type 4X enclosure
  • Across the line, motor starting up to 20 HP / 600 V
  • General use rating 16 A to 40 A / 600 V
  • Side-mounted auxiliary contacts
  • More wiring space
  • Padlockable

Product details

SKU ISF 430UL RA2
Ampere Rating (600V) 30 A
Color Standard
EAN 6419410294383
Enclosure RA2
HP 208V 5HP
HP 480V 10HP
HP 600V 15HP
Number of Poles 4
Weight (lb/kg) 1.3 / 0.6
Wire Size (Cu Only) 14-8 AWG
