Data subject to change without notice. Always confirm the data is correct from the seller.

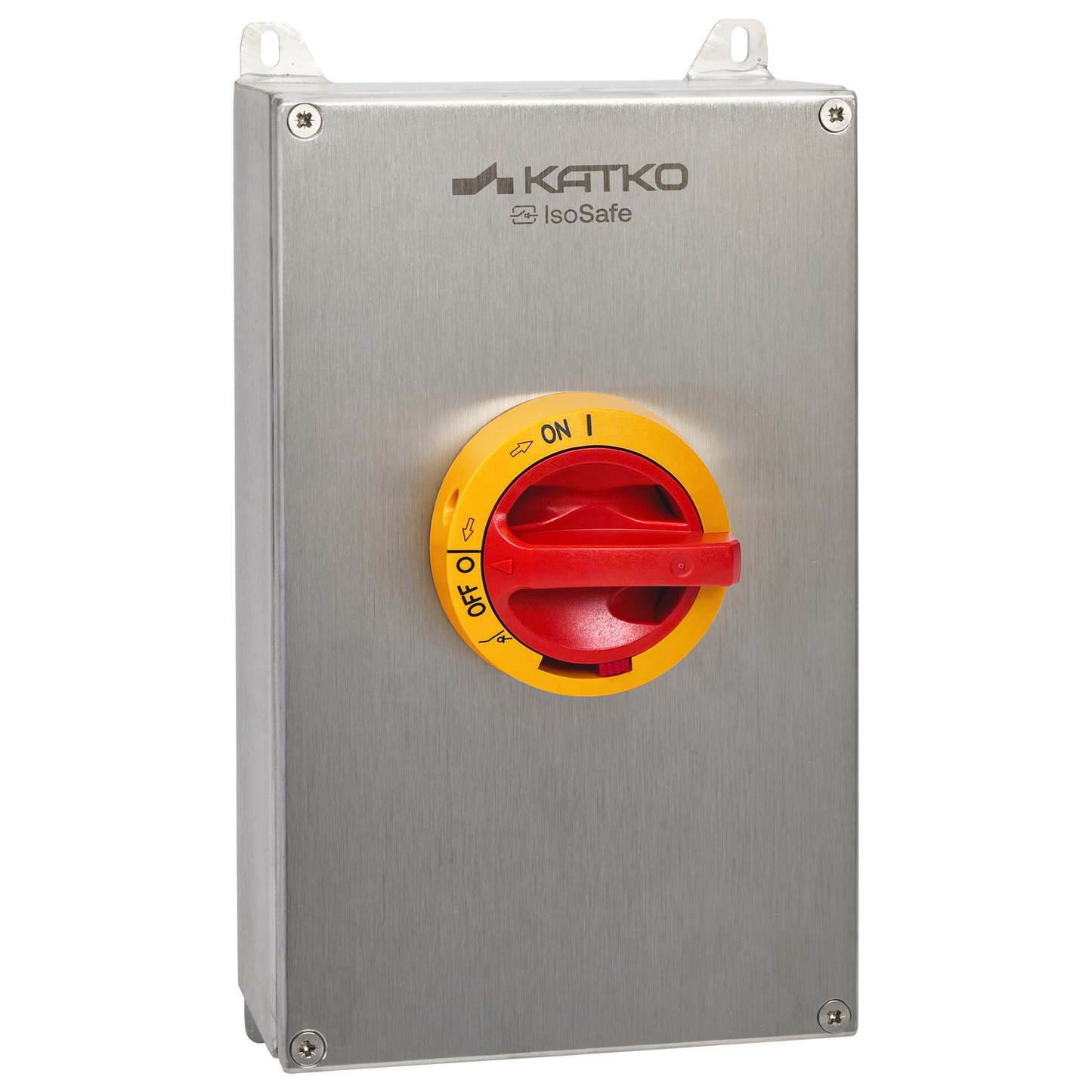

ISF 416UL YR RA4
UL listed enclosed manual motor controllers ISF-series 16-40A
Available in polycarbonate (M2 & M3), aluminium (A2), sheet steel (T3) and acid proof steel AISI 316L (RA2, RA4, RA2R & RA2RS)
ISF models with new 16-40 A LoadSafe switches
Type 4X enclosure
Across the line, motor starting up to 20 HP / 600 V
General use rating 16 A to 40 A / 600 V
Side-mounted auxiliary contacts
More wiring space
Padlockable
Inquire About This Product
Product details
SKU
ISF 416UL YR RA4
Ampere Rating (600V)
16 A
Color
Standard
EAN
6419410346808
Enclosure
RA4
HP 208V
3HP
HP 480V
7.5HP
HP 600V
10HP
NEMA Rating
Type 4X
Number of Poles
4
Weight (lb/kg)
5.3 / 2.4
Wire Size (Cu Only)
14-8 AWG
Dimensional drawing
