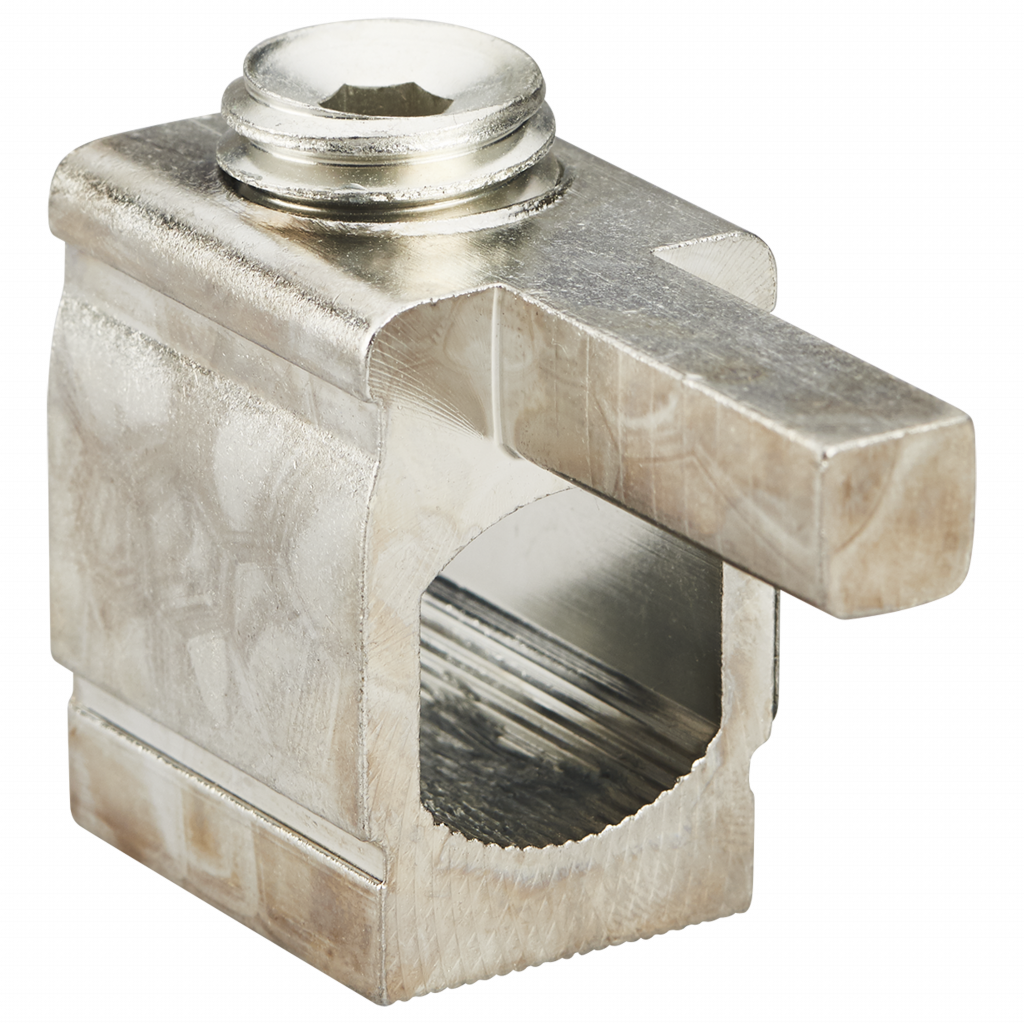

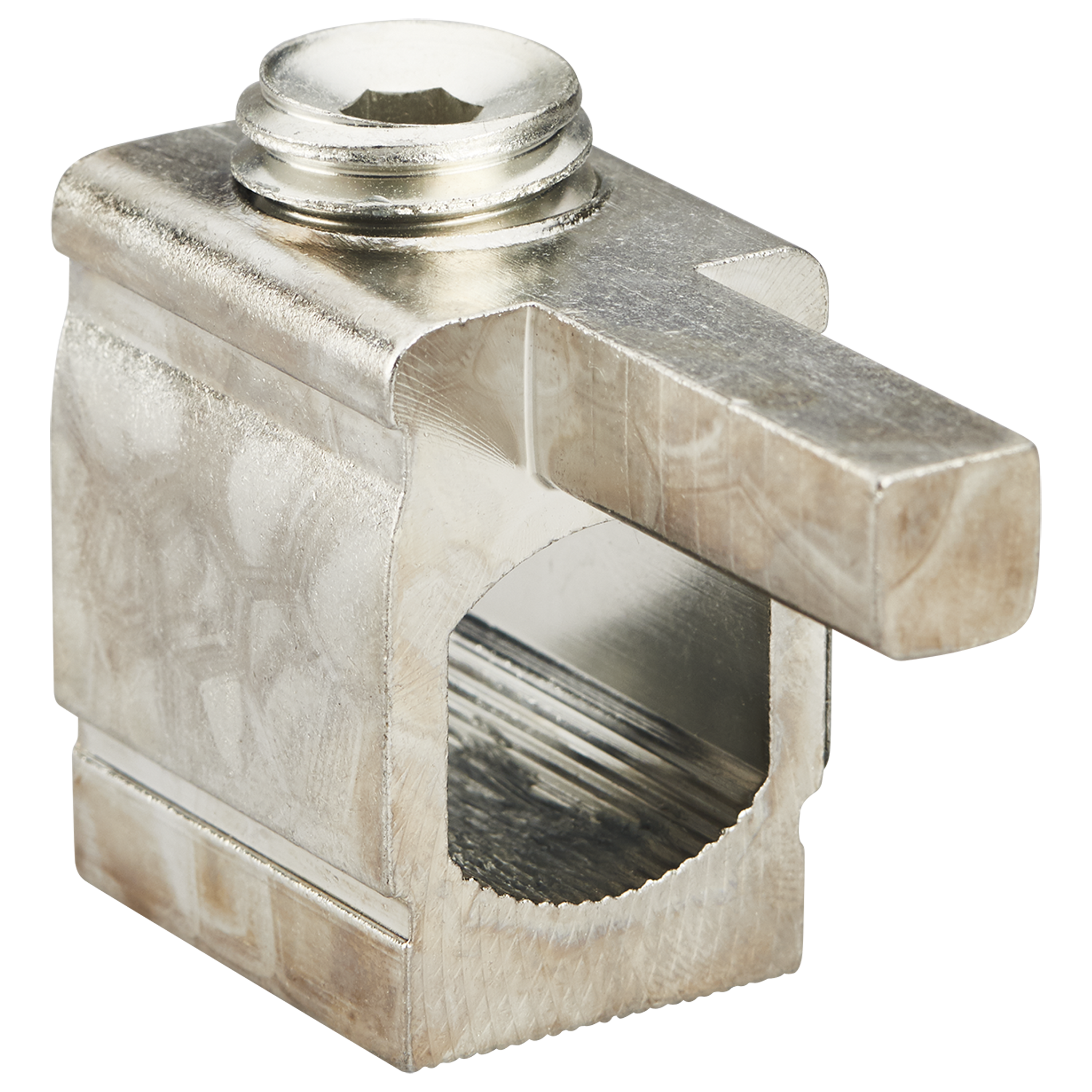

KKL1X150T2

Cable Connectors

  • Sales unit = 1 pc
  • Suitable for Al/Cu cables
  • Material: tin-coated aluminium
  • IEC 61238-1 Class A
  • Environmentally friendly materials

Conductors per cross section (mm2) table >>

KKL Installation Instructions >>

Compatibility tables >>

Product details

SKU KKL1X150T2
Al mm² 25-150
Color Standard
Cu mm² 25-150
E-Number 1942144
EAN 6419410378748
In (Al) (A) 250
In (Cu) (A) 320
Key size Hex 6
Mounting Direct
Number of Conductors 1
Package size 20
Torque Al/Cu (Nm) 12 (25-50 mm²) / 22 (70-95 mm²) / 38 (120-150 mm²)
Un (V) 690
Weight (lb/kg) 0.161 / 0.073

Dimensional drawing

Product diagram
