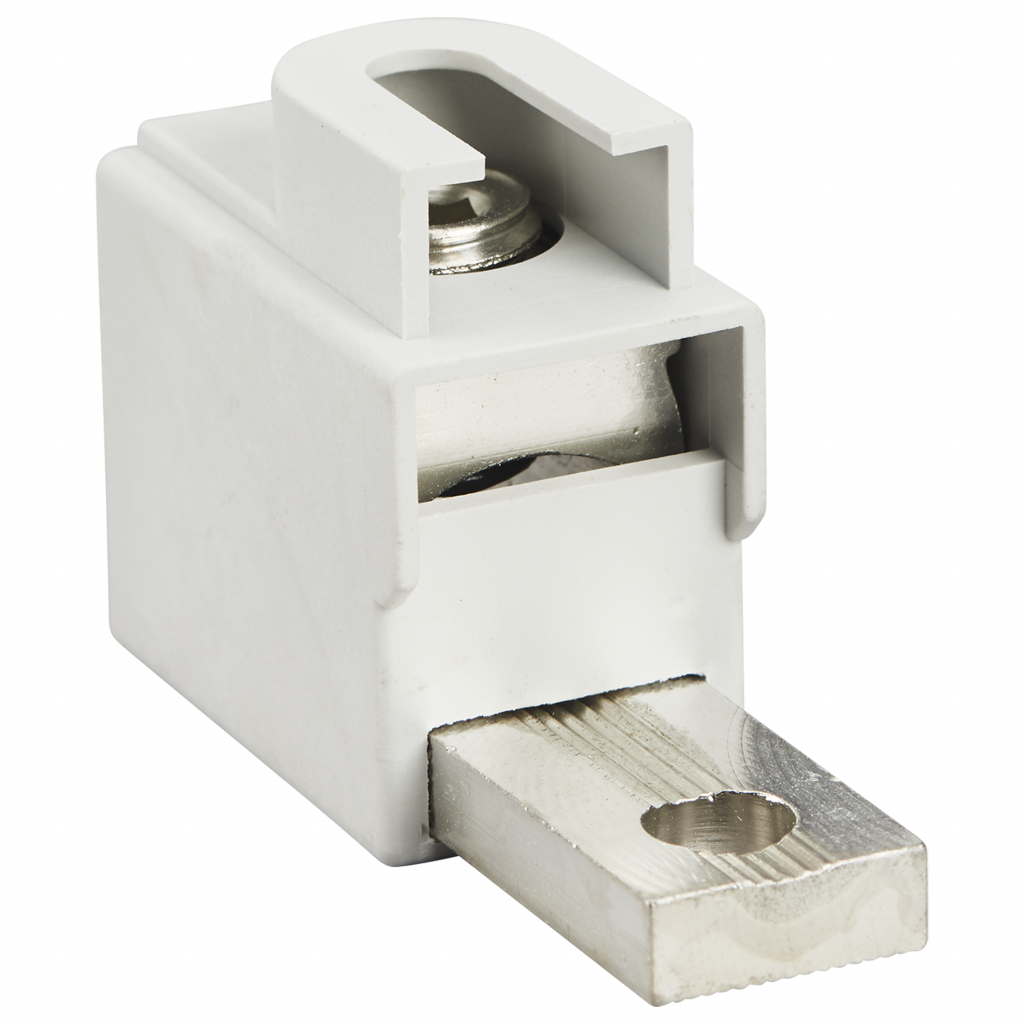

KKL1X120RS
- Sales unit = 1 pc
- Suitable for Al/Cu cables
- Material: tin-coated aluminium
- Environmentally friendly materials
Conductors per cross section (mm2) table >>
KKL Installation Instructions >>
Product details
| SKU | KKL1X120RS |
|---|---|
| Al mm² | 16-120 |
| Color | Standard |
| Cu mm² | 16-120 |
| E-Number | 1942098 |
| EAN | 6419410378687 |
| In (Al) (A) | 200 |
| In (Cu) (A) | 245 |
| Key size | Hex 6 |
| Mounting | Bolt M8 |
| Number of Conductors | 1 |
| Package size | 20 |
| Torque Al/Cu (Nm) | 12 (16-50 mm²) / 22 (70-120 mm²) |
| Un (V) | 690 |
| Weight (lb/kg) | 0.097 / 0.044 |
Dimensional drawing
