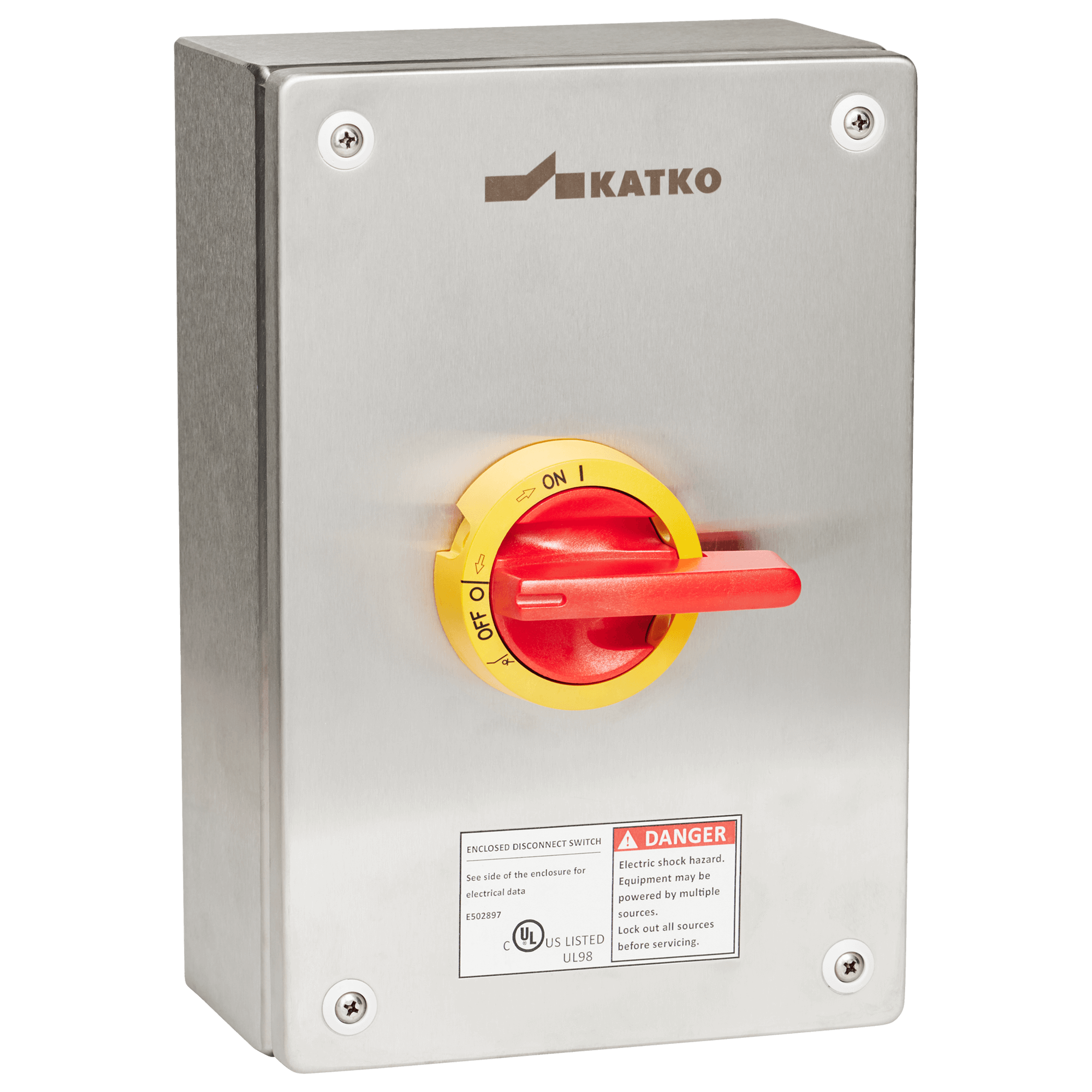

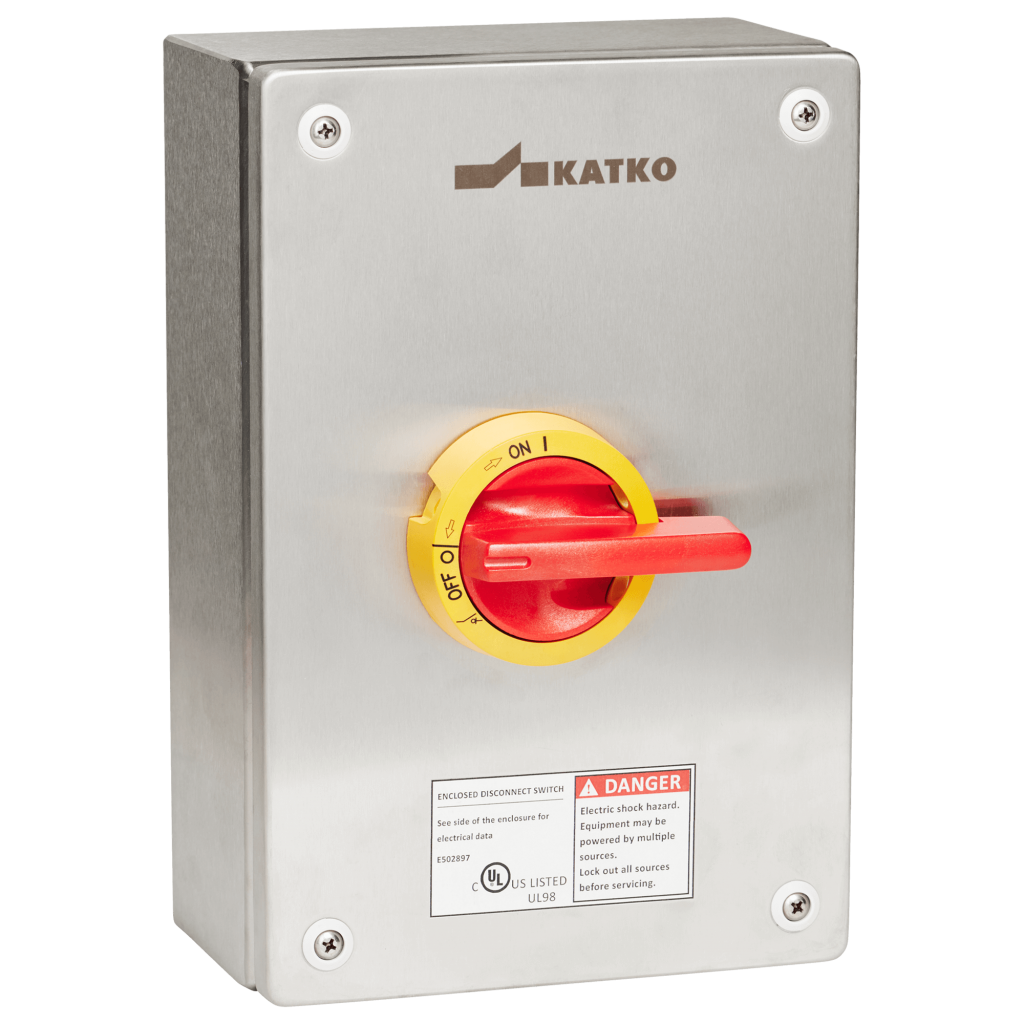

KER 460UL98 YR R4B

Wyłączniki w obudowach poliwęglanowych, ze stali nierdzewnej, z blachy stalowej 60-100A cerytyfikowane UL98

  • Type 4X enclosure: polycarbonate and stainless steel
  • Type 4 enclosure: sheet steel
  • Padlockable
  • General use rating 60 A to 100 A /600VAC, refer to detailed product specifications
  • 208 V rating at 120 V
  • KEM = polycarbonate enclosure
  • KET = sheet steel enclosure
  • KER = stainless steel enclosure

Szczegóły produktu

SKU KER 460UL98 YR R4B
EAN 6419410315811
HP 208V 2HP
HP 240V 25HP
HP 480V 50HP
HP 600V 75HP
Klasyfikacja NEMA 4X
Kolor Yellow / Red
Liczba Pól 4
Obudowa R4B
Prąd znamionowy (600V) 100 A
Rozmiar przewodu (Tylko Cu) 8-1/0 AWG
Waga (lb/kg) 7,27 / 3,3

Mittapiirustus

Product diagram
