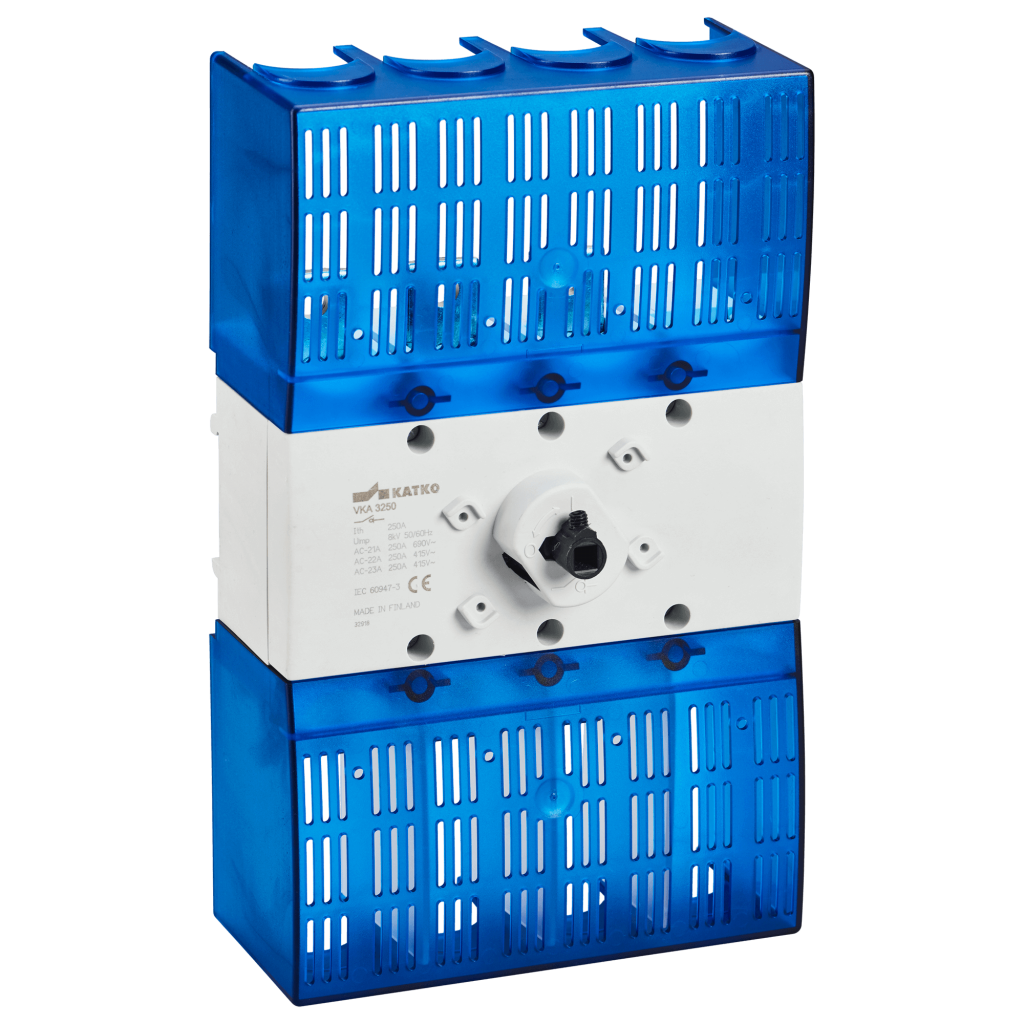

Note: Product images do not represent this product. Actual product may differ from shown images.

Data subject to change without notice. Always confirm the data is correct from the seller.

VKA 4250 LS/VS

VKA Rotary load break switches 200-250A

  • Compact size
  • 3-pole and 4-pole VKA-switches as standard
  • 2-pole upon request
  • Switch technology by means of silver contacts ensures safe and durable operation
  • 4-pole versions with early-make and late-break neutral pole
  • Handle LK12 and shaft L=228 AD12/T6 included, suitable for 250 mm panel board
  • Terminal covers LS/VKAC and phase barriers VS/VKAC enable safe use
  • Tested according to IEC 60947-3

Technical datasheet >>

Product details

SKU VKA 4250 LS/VS
AC-21 400/415 V (A) 250 A
AC-21 690 V (A) 250 A
AC-22 400/415 V (A) 250 A
AC-23 400/415 V (A/kW) 250 A / 132 kW
Cable Area to Switch Terminal (mm2) / Bolt size M8
E-Number 3600229
EAN 6419410219157
Number of Poles 4
Operation Rotary
Switch type Load Break Switch
Weight (kg) 1.7

Dimensional drawing

Product diagram
