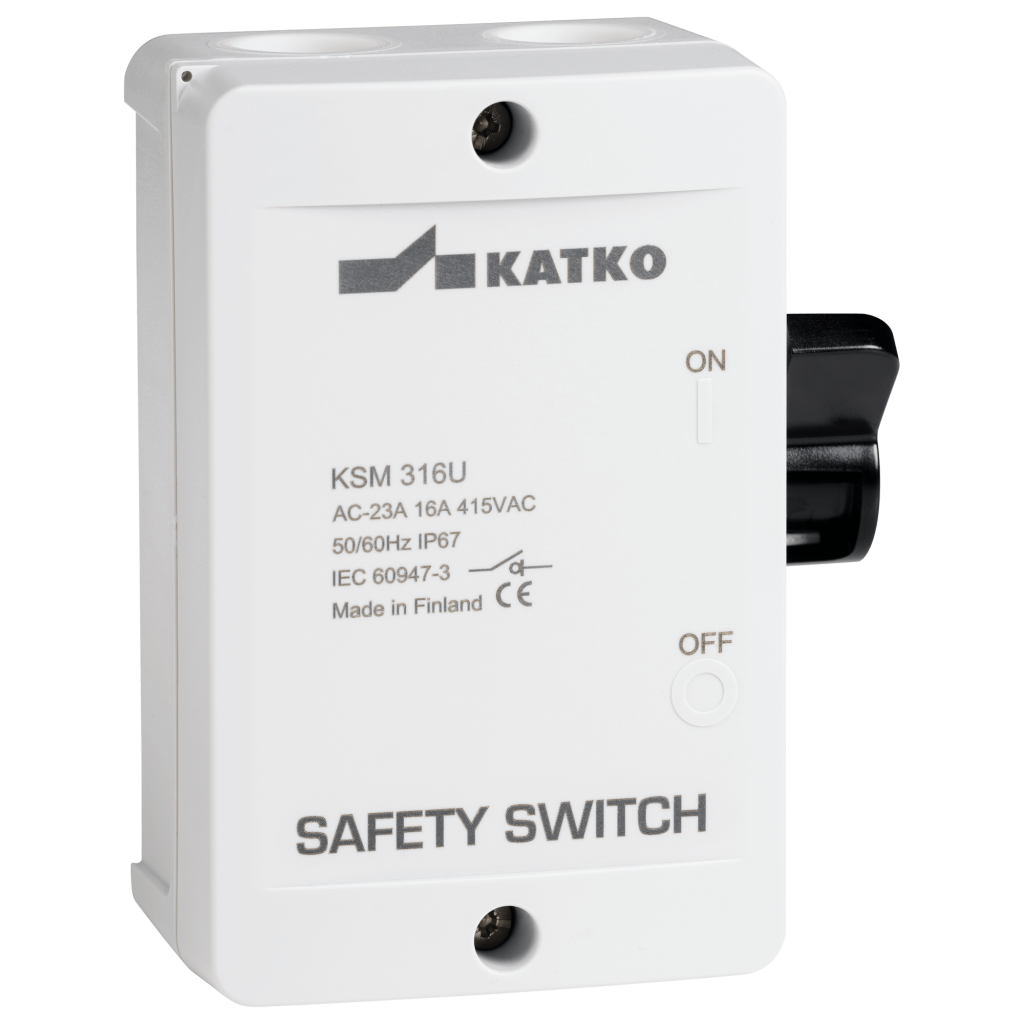

Note: Product images do not represent this product. Actual product may differ from shown images.

Data subject to change without notice. Always confirm the data is correct from the seller.

KSM 325US Y/R

KSM Side operated polycarbonate switches 16A & 25A

  • Easy to install
  • IP67
  • Fully rated Load Break Switch
  • Good resistance against UV and many chemicals
  • Membrane gasket cable entries as standard with strain relief 2 x 20 mm on the top, 2 x 20 mm on the bottom and 2 x 15 mm on the base
  • Possible to install M20 cable glands
  • Wall mounting with membrane gaskets
  • Wall mounting dimensions: 62,0 x 90,0 mm
  • Large cable terminals 1,5 – 16 mm2
  • Padlockable handle to OFF-position
  • Handle sealable to ON-position
  • Enclosure can be sealed to any position
  • Available 2, 3, 4P and 3P with auxiliary contact (S)
  • Large 1,5 – 16 mm2 neutral and earth terminals on 3P switch, earth on 2P and 4P switches

KSM Installation guide video >>

Technical datasheet >>

Product details

SKU KSM 325US Y/R
AC-23 400/415 V (A/kW) 25 A / 11 kW
Cable Area to Switch Terminal (mm2) / Bolt size 1.5-16
Color Yellow / Red
EAN 6419410328491
Enclosure U1
Enclosure Type Polycarbonate
IP Rating 67
Number of Poles 3
Operation Side-operated
Switch type Load Break Switch
Weight (kg) 0.31

Dimensional drawing

Product diagram
