KLM5X1X16 KCS13137PC

Polycarbonate, Sheet Steel and Stainless Steel Junction Boxes

Katko junction boxes are engineered to meet the diverse needs of electrical installations, whether for cable extension, branching, or changing cable types. Manufactured in Finland, these enclosures combine meticulous and stylish design, high quality, and durable construction with user-oriented features, making them an excellent choice for a wide range of applications.

Key Features:

  • Versatility: Suitable for cable extension, branching, and changing cable types. Compatible with Al/Cu cables.
  • Wide Selection: Multiple enclosure options available, including:
    • Polycarbonate enclosures (KLM & KCS)
    • Acid-resistant stainless steel enclosures, AISI 316L (KLR)
    • Steel sheet enclosures (KLT)
    • Aluminum enclosures
    • EMC options are also available.
  • Domestic Manufacturing: Made in Finland, ensuring high quality and reliable delivery.
  • Ease of Installation: User-focused features ensure fast and seamless installation.
  • Modifiability: Flexible installation directions for cable entries; products can be customized to meet application-specific requirements.
  • Certified: Compliant with IEC 60947-7-1
  • IP Ratings:
    • IP66: KLM: 2×16, 1×50, 2×50, KLR: 2×16, 1×50, 2×50, 1×95, 2×95, KCS: PC/PCT
    • IP65: KLM: 1×95, 2×95, 2×150, KLR: 2×150, KCS: ABS
  • Included in All Models:
    • L1, L2, and L3 terminals, grey (1- or 2-piece)
    • N-terminal (1- or 2-piece)
    • PE-terminal (1- or 2-piece)
  • Manufactured with environmentally friendly materials.
  • Terminal Material: Tinned and greased aluminum
  • Includes Cable Glands

Conductors per cross section (mm2) table

Product details

SKU KLM5X1X16 KCS13137PC
Al mm² 1.5-16
Cable glands Different cable glands available on request
Cu mm² 1.5-16
EAN 6419410350645
In (Al) (A) 75
In (Cu) (A) 76
Key size Hex 4
Number of Conductors 2
Torque Al/Cu (Nm) 5
Un (V) 1000
Weight (lb/kg) 1.76/0.8

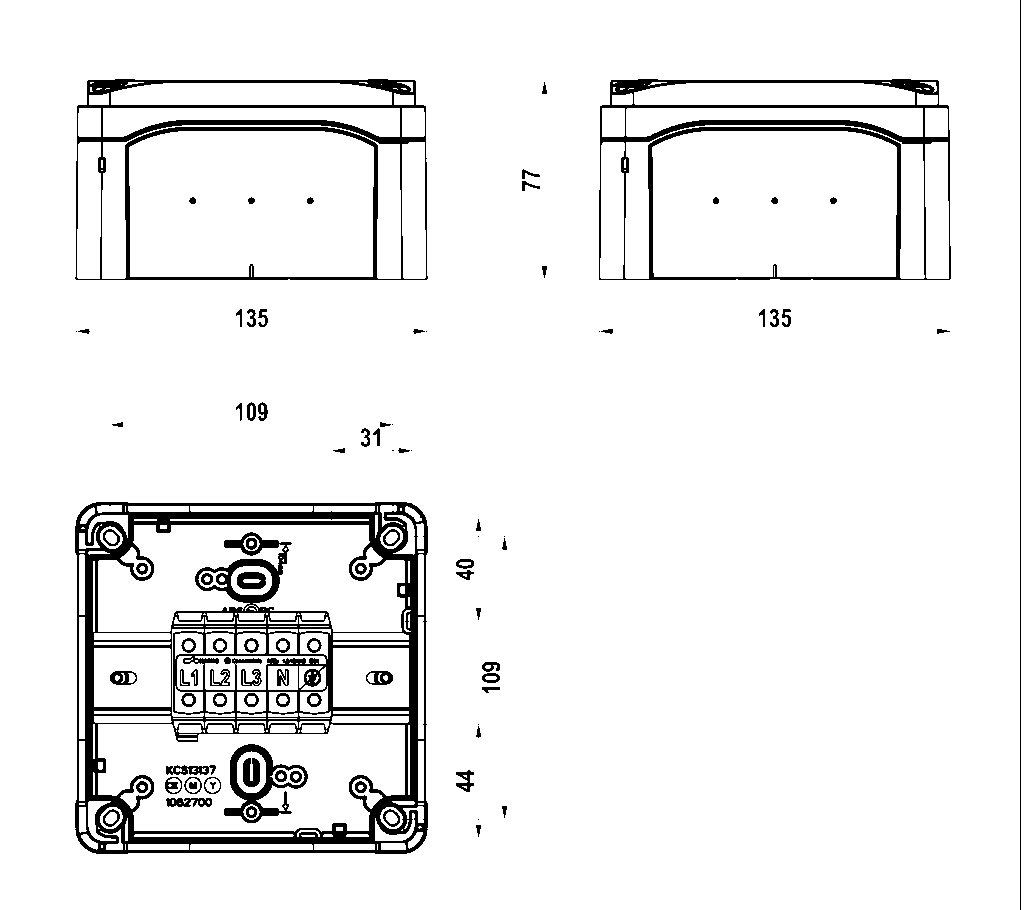

Dimensional drawing

Product diagram
