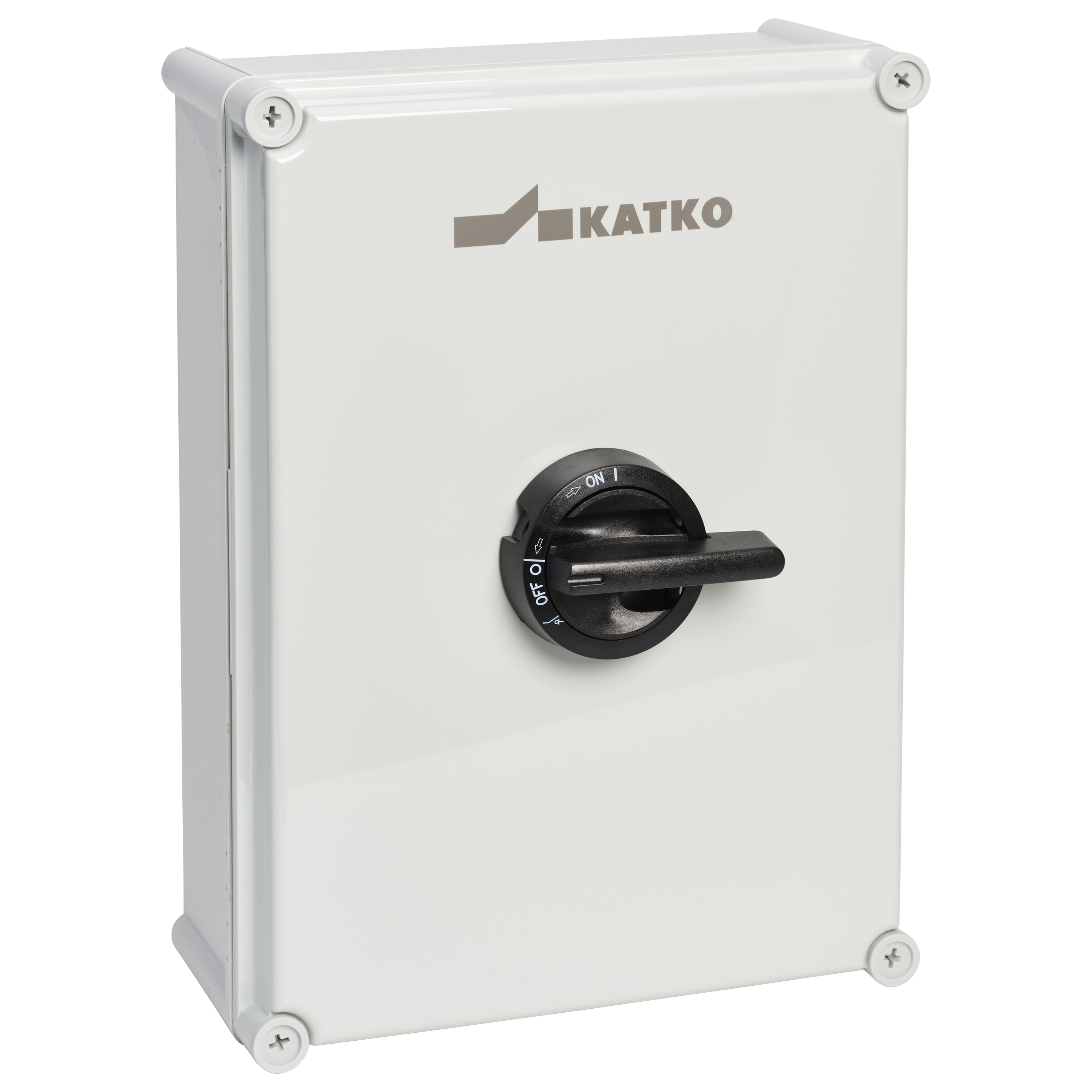

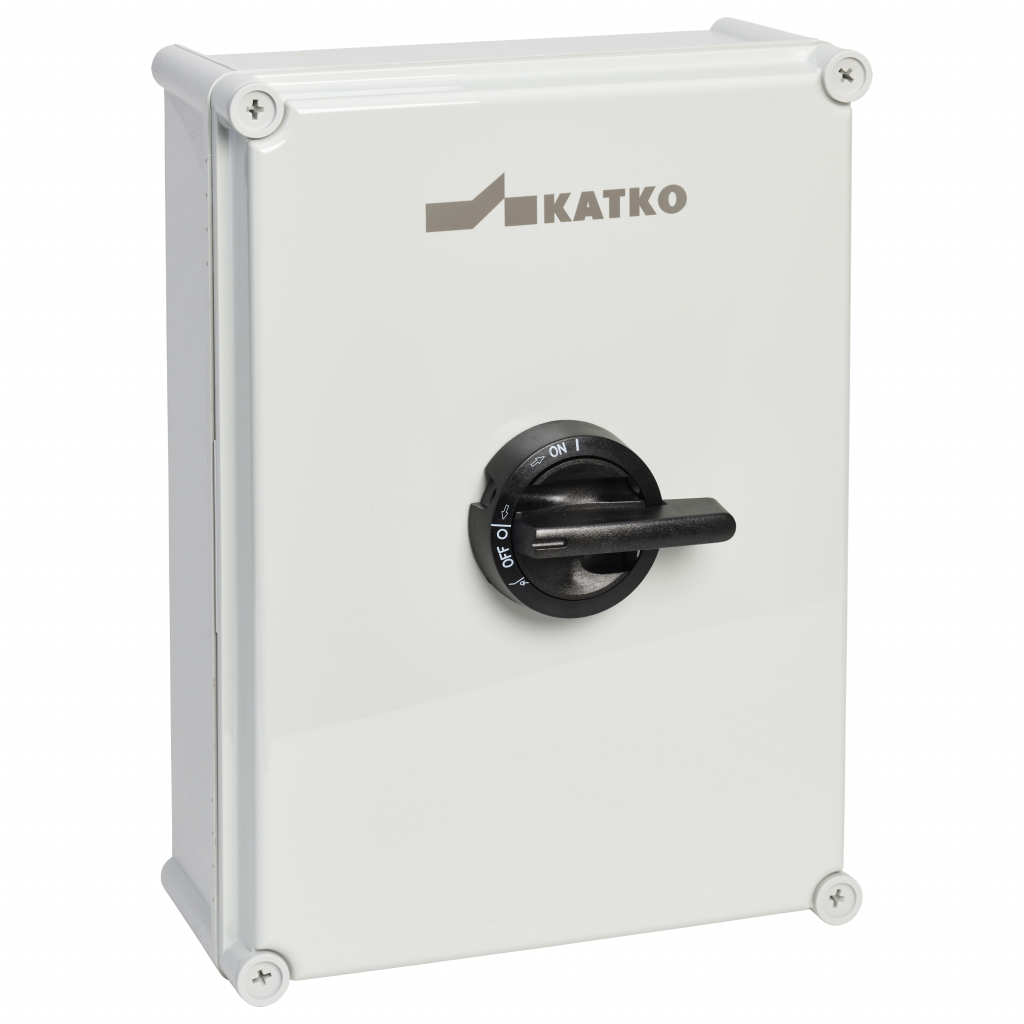

KEM 6125L MF11UL
UL Listed polycarbonate enclosed manual motor controllers 16-150A
- Manual motor controller with disconnector means
- Type 4X enclosure
- Across the line, motor starting up to 75 HP/600 V
- General use rating from 25A to 125A/600V, refer to detailed product specifications
- Retrofit snap on auxiliary contacts
- Padlockable with three locks
- UL 60947-4-1A
Product details
| SKU | KEM 6125L MF11UL |
|---|---|
| Ampere Rating (600V) | 125 A |
| Color | Standard |
| EAN | 6419410344217 |
| Enclosure | MF11UL |
| HP 208V | 20HP |
| HP 415V | 25HP |
| HP 480V | 50HP |
| HP 600V | 60HP |
| NEMA Rating | 4X |
| Number of Poles | 6 |
| Weight (lb/kg) | 8.379 / 3.8 |
| Wire Size (Cu Only) | 8-1/0AWG |
Dimensional drawing
