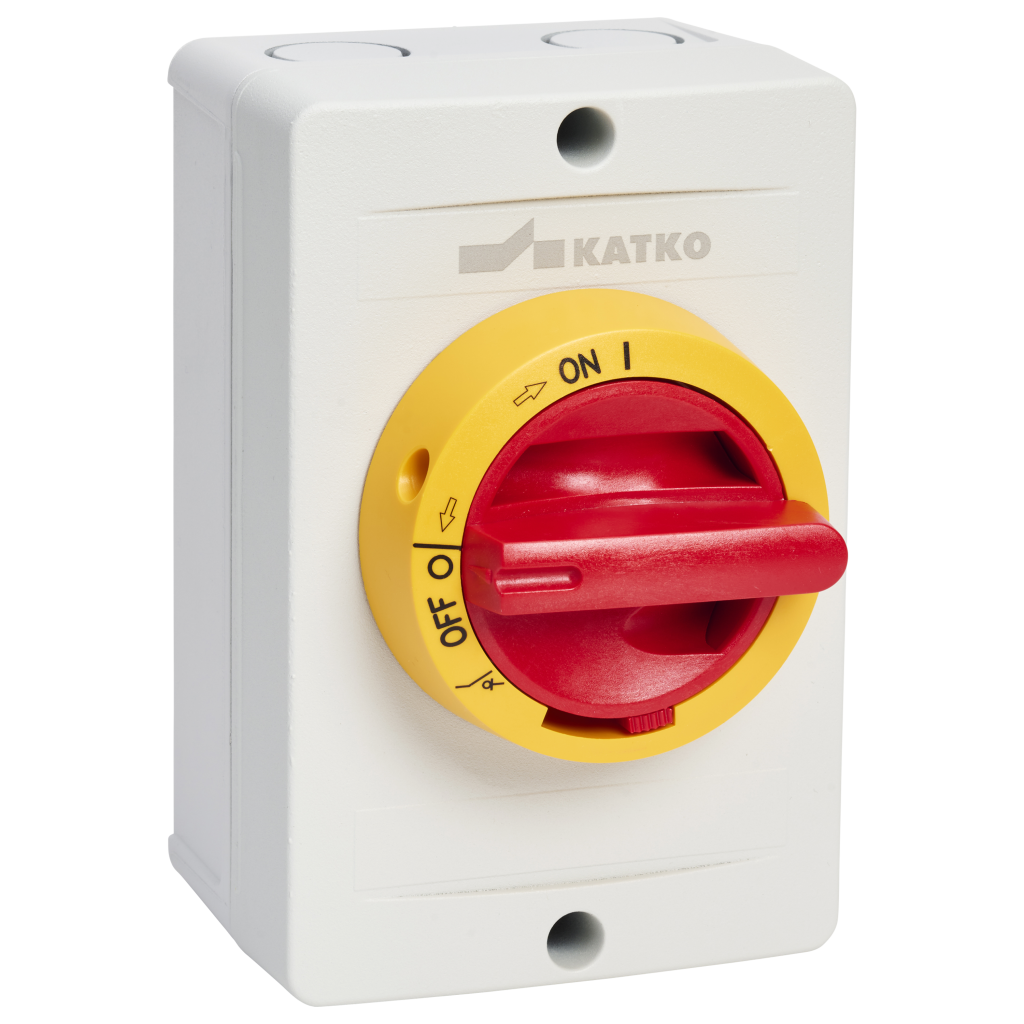

Note: Product images do not represent this product. Actual product may differ from shown images.

Data subject to change without notice. Always confirm the data is correct from the seller.

KEA 4200 Y/R

KEA Aluminium 16-250A

  • IP66; Enclosure types A2, A3
  • IP65; Enclosure types A4, A5
  • IK08; A2, A3 (Degree of mechanical impact)
  • IK10: A4, A5
  • Excellent for hard weather conditions
  • Wide operating temperature range
  • Good resistance against many chemicals
  • Good UV resistance
  • Padlockable
  • Door interlock with defeat mechanism
  • Tested according to IEC 60947-3

Technical datasheet >>

Product details

SKU KEA 4200 Y/R
AC-21 400/415 V (A) 200 A
AC-21 690 V (A) 200 A
AC-22 400/415 V (A) 200 A
AC-22 690 V (A) 200 A
AC-23 400/415 V (A/kW) 200 A / 110 kW
AC-23 690 V (A/kW) 200 A / 160 kW
Cable Area to Switch Terminal (mm2) / Bolt size M10
Color Yellow / Red
EAN 6419410358078
Enclosure A5
Enclosure Type Aluminium
IP Rating 65
Number of Poles 4
Operation Front-operated
Switch type Load Break Switch
Weight (kg) 14.1

Dimensional drawing

Product diagram
