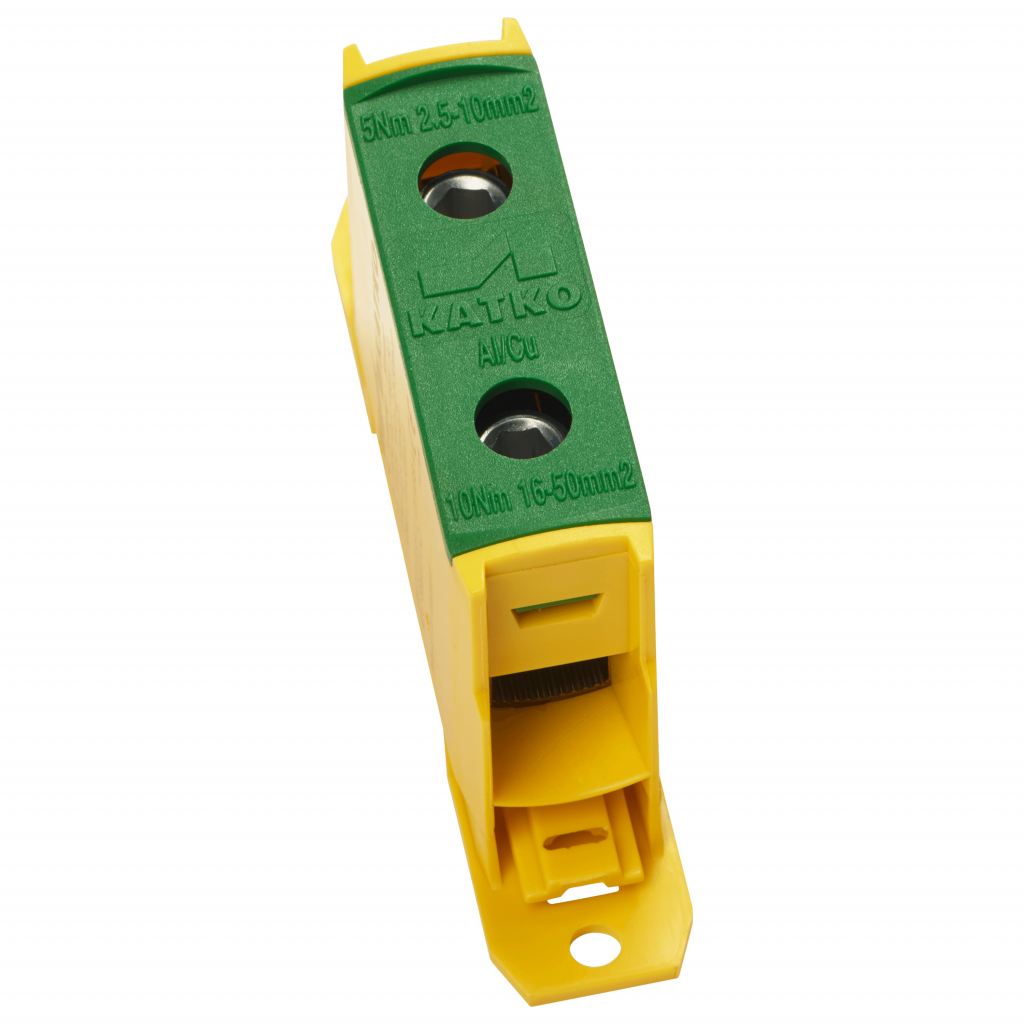

Note: Product images do not represent this product. Actual product may differ from shown images.

Data subject to change without notice. Always confirm the data is correct from the seller.

KC 1×16

Terminal Blocks

  • Bi-metal terminal suitable for Al/Cu cables
  • Available in grey, blue (N) and yellow/green (PE) (KL 1×16 available only as grey and blue)
  • Touchproof, IP20
  • Housing and cover in polyamide
  • Certified according to IEC 61238-1 Class A
  • Terminal material KL tin-coated, greased aluminium
  • Terminal material KC steel and brass
  • KC-terminals 16 – 35 mm2 and KL 1.5-50 mm2 for DIN-rail mounting, refer to detailed product specifications
  • KL-terminals 50 – 300 mm2 for DIN-rail or base mounting, refer to detailed product specifications
  • Environmentally friendly materials
  • Durable laser markings

Product details

SKU KC 1×16
Color L
Cu mm² 1.5-16
E-Number 1942008
EAN 6419410357200
In (Cu) (A) 63
Mounting DIN
Number of Conductors 2
Torque Al/Cu (Nm) 1.8
Un (V) 800
Weight (lb/kg) 0.046 / 0.021

Dimensional drawing

Product diagram
