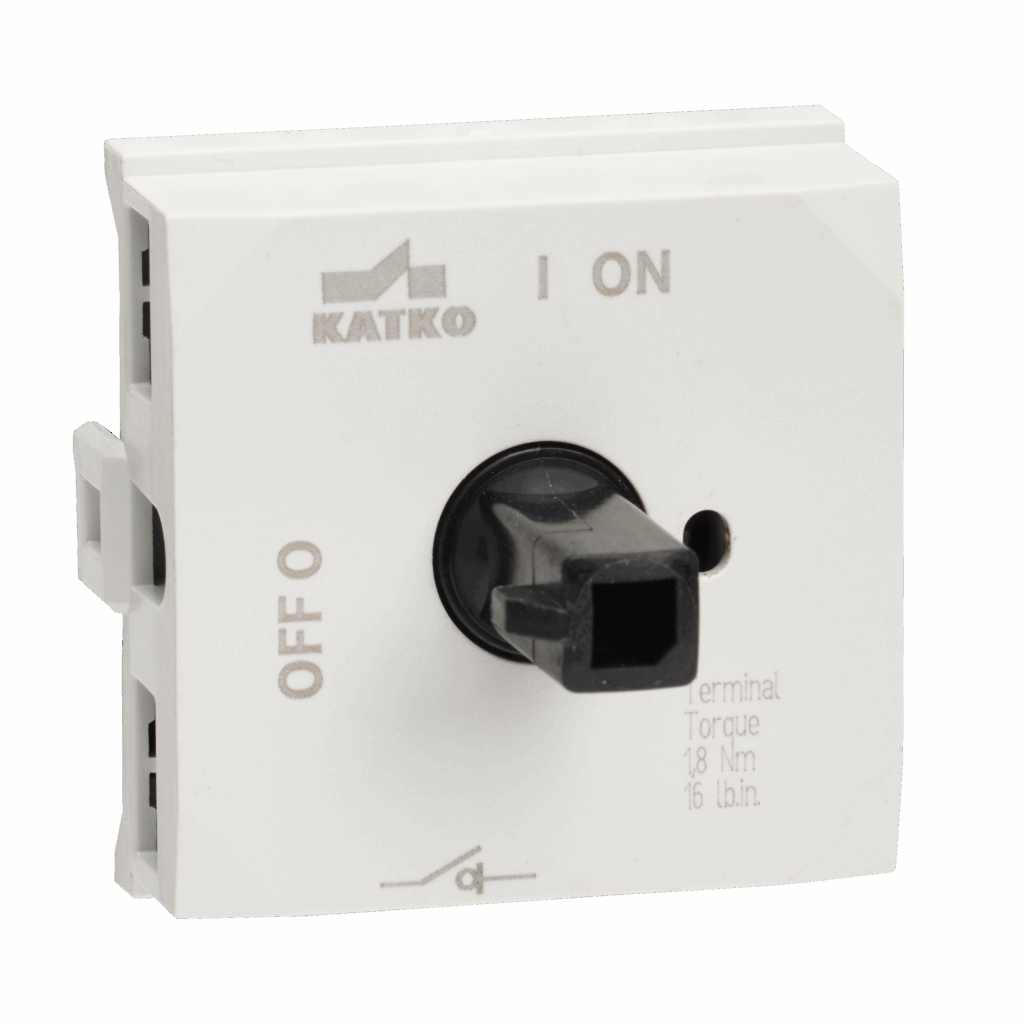

FP40KU4P
The new front plate is designed to complement KATKO’s KU switch series (16–40 A), providing a functional and refined solution especially for electrical distribution boards, DIN panel cut-out installations, and enclosed switch applications where space inside the enclosure is limited. The front plate allows the switch to be installed flush with other panel components, enhancing both usability and appearance.
The front plate serves as an excellent accessory to the KU switch series, particularly in applications requiring a compact structure, clean installation finish, robust functionality, and auxiliary contact options without increasing the overall footprint. Front plates are available for both 3-pole and 4-pole KU switches.
Key Features
- Compatible with DIN panel cut-out installations – enables fast and clean integration into standard enclosures without the need for modifications.
- Flush installation with the panel surface – switch aligns evenly with other components, improving ergonomics and overall usability.
- Auxiliary contact compatibility – micro switch-based auxiliary contacts are integrated directly into the front plate without increasing the total switch width, allowing auxiliary functionality even in enclosures with limited space. Available contact configurations: 1NO+1NC (1OC) or 2NO+2NC (2OC).
- Easy to use and install – clear structure and compact design ensure quick installation and a smooth user experience.
Applications
- Electrical distribution boards and control panels where the switch needs to be mounted as part of a standardized DIN panel cut-out layout.
- Machine control panels and OEM applications requiring a finished and user-friendly interface.
- Compact enclosures and limited installation spaces where auxiliary contact functionality is needed without adding width.
Product details
SKU | FP40KU4P |
---|---|
Accessory Type | Front plate |
Description | Grey front plate for a 4-pole load break switch, includes direct handle, positions 0-1 |
E-Number | 3663155 |
EAN | 6419410338070 |
For | 4-pole KU load break switch (16-40A) |
