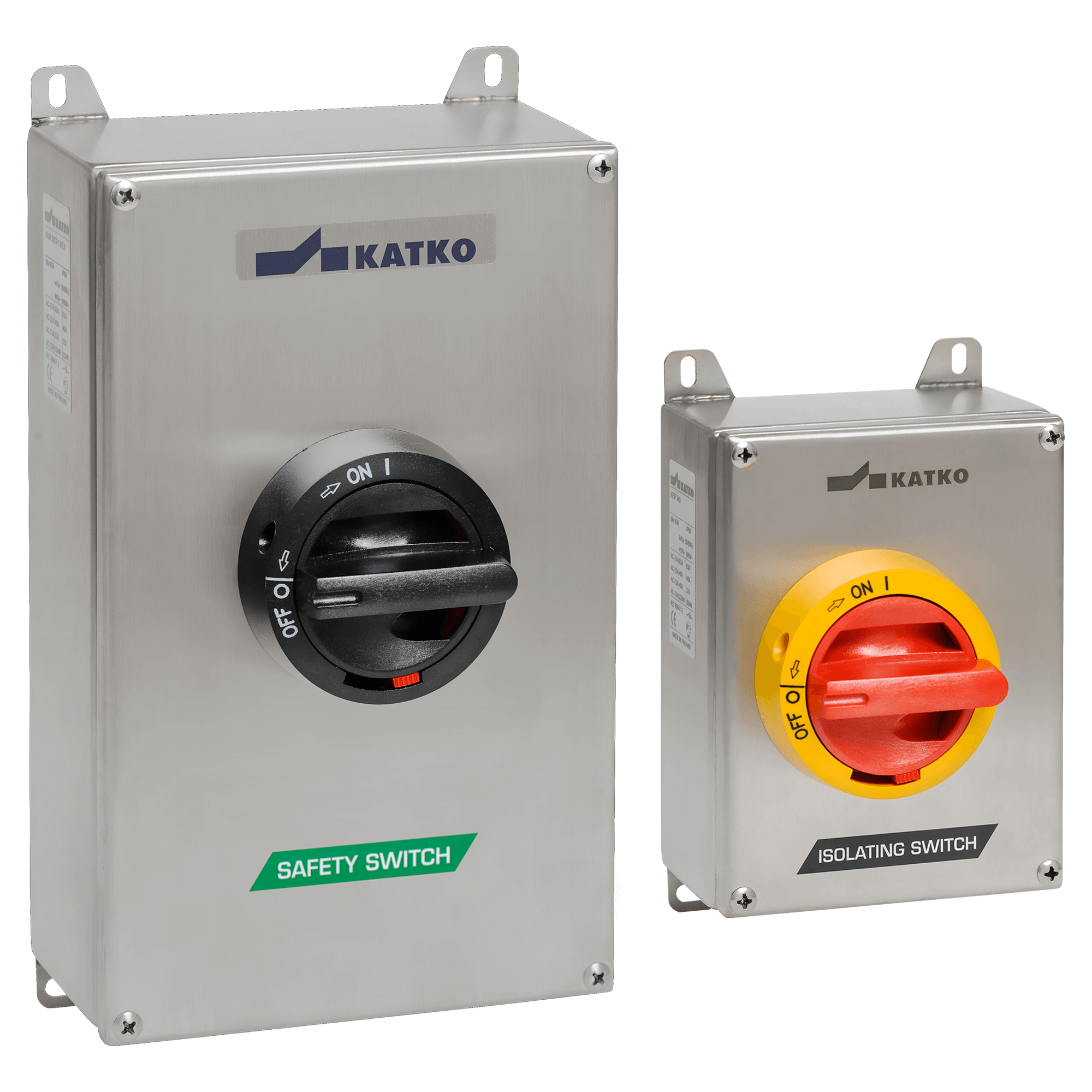

KER Stainless Steel 16-1600A

IP66; AISI 316L Enclosure types RA2, RA4, RA5
IP66; AISI304 Enclosure types R6, R7, R8, R9, R10 (AISI 304 as standard, AISI 316L upon request)
Where hygiene and good protection against corrosion are required
Padlockable with three locks
Door interlock with defeat mechanism
Tested according to IEC 60947-3
Also available as EMC, and EMC/EX -protected
Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.

Technical datasheet >>

Accessories

Note: Certificates may vary between products. Check product specific certificates from the product page.

Data subject to change without notice. Always confirm the data is correct from the seller.

Inquire About This Product Group

Email*
Country*
Company
Phone number
Comments
Request a 3D drawing (.stp)
- Yes
Request a 2D drawing (.dwg)
- Yes
For which product?
Subscribe for a KATKO newsletter
- Yes
CAPTCHA
Comments
This field is for validation purposes and should be left unchanged.

Products

Type	Number of Poles	AC-22 400/415 V	AC-23 400/415 V	AC-23 690 V	EAN	Enclosure	Weight (kg)
KER 316 RA2 2XKST25P KST16M *	3	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410275986	RA2	1.2
KER 325 RA2 2XKST25P KST16M *	3	25 A	25 A / 11 kW	25 A / 22 kW	6419410276020	RA2	1.2
KER 340 RA2 2XKST25P KST16M *	3	40 A	40 A / 22 kW	25 A / 22 kW	6419410276068	RA2	1.2
KER 416 RA2 2XKST25P KST16M *	4	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410276006	RA2	1.3
KER 425 RA2 2XKST25P KST16M *	4	25 A	25 A / 11 kW	25 A / 22 kW	6419410276044	RA2	1.3
KER 440 RA2 2XKST25P KST16M *	4	40 A	40 A / 22 kW	25 A / 22 kW	6419410276082	RA2	1.3
KER 316 YR RA2 2XKST25P KST16M *	3	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410275993	RA2	1.2
KER 325 YR RA2 2XKST25P KST16M *	3	25 A	25 A / 11 kW	25 A / 22 kW	6419410276037	RA2	1.2
KER 340 YR RA2 2XKST25P KST16M *	3	40 A	40 A / 22 kW	25 A / 22 kW	6419410276075	RA2	1.2
KER 416 YR RA2 2XKST25P KST16M *	4	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410276013	RA2	1.3
KER 425 YR RA2 2XKST25P KST16M *	4	25 A	25 A / 11 kW	25 A / 22 kW	6419410276051	RA2	1.3
KER 440 YR RA2 2XKST25P KST16M *	4	40 A	40 A / 22 kW	25 A / 22 kW	6419410276099	RA2	1.3
KER 316 RA2	3	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410343005	RA2	1.2
KER 325 RA2	3	25 A	25 A / 11 kW	25 A / 22 kW	6419410343203	RA2	1.2
KER 340 RA2	3	40 A	40 A / 22 kW	32 A / 30 kW	6419410343401	RA2	1.2
KER 363 RA4	3	63 A	40 A / 22 kW	40 A / 37 kW	6419410343562	RA4	2.3
KER 380 RA4	3	80 A	63 A / 30 kW	40 A / 37 kW	6419410343609	RA4	2.3
KER 3100 RA4	3	100 A	100 A / 55 kW	63 A / 55 kW	6419410315187	RA4	2.3
KER 3125 RA4	3	125 A	125 A / 55 kW	80 A / 75 kW	6419410343647	RA4	2.3
KER 3160 RA5	3	160 A	160 A / 90 kW	100 A / 90 kW	6419410343685	RA5	6.9
KER 3200C RA5	3	200 A	200 A / 110 kW		6419410347805	RA5	7.7
KER 3200 R6	3	200 A	200 A / 110 kW	200 A / 160 kW	6419410343722	R6	15
KER 3250C RA5	3	250 A	250 A / 132 kW		6419410347829	RA5	7.7
KER 3250 R6	3	250 A	250 A / 132 kW	250 A / 250 kW	6419410343784	R6	15
KER 3315 R6	3	315 A	315 A / 160 kW	315 A / 315 kW	6419410343845	R6	16
KER 3400 R6	3	400 A	400 A / 200 kW	400 A / 355 kW	6419410343906	R6	16
KER 3630 R7	3	630 A	630 A / 355 kW	630 A / 630 kW	6419410343968	R7	25
KER 3800 R10	3	800 A	800 A / 400 kW	800 A / 800 kW	6419410331569	R10	75
KER 31000 R10	3	1000 A	1000 A / 560 kW	1000 A / 800 kW	6419410305669	R10	80
KER 31250 R10	3	1250 A	1250 A / 710 kW	1250 A / 1000 kW	6419410305683	R10	90
KER 425 RA2	4	25 A	25 A / 11 kW	25 A / 22 kW	6419410343302	RA2	1.3
KER 31600 R10	3	1600 A	1600 A / 900 kW	1600 A / 1200 kW	6419410305706	R10	100
KER 440 RA2	4	40 A	40 A / 22 kW	32 A / 30 kW	6419410343500	RA2	1.3
KER 416 RA2	4	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410343104	RA2	1.3
KER 463 RA4	4	63 A	40 A / 22 kW	40 A / 37 kW	6419410343586	RA4	2.4
KER 480 RA4	4	80 A	63 A / 30 kW	40 A / 37 kW	6419410343623	RA4	2.4
KER 4100 RA4	4	100 A	100 A / 55 kW	63 A / 55 kW	6419410315194	RA4	2.4
KER 4125 RA4	4	125 A	125 A / 55 kW	80 A / 75 kW	6419410343661	RA4	2.4
KER 4160 RA5	4	160 A	160 A / 90 kW	100 A / 90 kW	6419410343708	RA5	7
KER 4200C RA5	4	200 A	200 A / 110 kW		6419410347843	RA5	7.8
KER 4200 R6	4	200 A	200 A / 110 kW	200 A / 160 kW	6419410343746	R6	16
KER 4250C RA5	4	250 A	250 A / 132 kW		6419410347867	RA5	7.8
KER 4250 R6	4	250 A	250 A / 132 kW	250 A / 250 kW	6419410343807	R6	16
KER 4315 R6	4	315 A	315 A / 160 kW	315 A / 315 kW	6419410343869	R6	16
KER 4400 R6	4	400 A	400 A / 200 kW	400 A / 355 kW	6419410343920	R6	16
KER 4630 R7	4	630 A	630 A / 355 kW	630 A / 630 kW	6419410344002	R7	26
KER 4800 R10	4	800 A	800 A / 400 kW	800 A / 800 kW	6419410331583	R10	77
KER 41000 R10	4	1000 A	1000 A / 560 kW	1000 A / 800 kW	6419410363867	R10	82
KER 41250 R10	4	1250 A	1250 A / 710 kW	1250 A / 1000 kW	6419410363881	R10	92
KER 41600 R10	4	1600 A	1600 A / 900 kW	1600 A / 1200 kW	6419410363904	R10	102
KER 616 RA4	6	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410342879	RA4	2.5
KER 625 RA4	6	25 A	25 A / 11 kW	25 A / 22 kW	6419410342893	RA4	2.5
KER 640 RA4	6	40 A	40 A / 22 kW	32 A / 30 kW	6419410342916	RA4	2.5
KER 663 RA4	6	63 A	40 A / 22 kW	40 A / 37 kW	6419410342930	RA4	2.5
KER 680 RA4	6	80 A	63 A / 30 kW	40 A / 37 kW	6419410342954	RA4	2.5
KER 6100 RA5	6	100 A	100 A / 55 kW	63 A / 55 kW	6419410315200	RA5	7.3
KER 6125 RA5	6	125 A	125 A / 55 kW	80 A / 75 kW	6419410342978	RA5	7.3
KER 6160 RA5	6	160 A	160 A / 90 kW	100 A / 90 kW	6419410342992	RA5	7.3
KER 6200 R7	6	200 A	200 A / 110 kW	200 A / 160 kW	6419410343760	R7	25
KER 6250 R7	6	250 A	250 A / 132 kW	250 A / 250 kW	6419410343821	R7	25
KER 6315 R8	6	315 A	315 A / 160 kW	315 A / 315 kW	6419410343883	R8	26
KER 6400 R8	6	400 A	400 A / 200 kW	400 A / 355 kW	6419410343944	R8	26
KER 816 RA4	8	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410342886	RA4	2.6
KER 825 RA4	8	25 A	25 A / 11 kW	25 A / 22 kW	6419410342909	RA4	2.6
KER 840 RA4	8	40 A	40 A / 22 kW	32 A / 30 kW	6419410342923	RA4	2.6
KER 863 RA4	8	63 A	40 A / 22 kW	40 A / 37 kW	6419410342947	RA4	2.6
KER 880 RA4	8	80 A	63 A / 30 kW	40 A / 37 kW	6419410342961	RA4	2.6
KER 8100 RA5	8	100 A	100 A / 55 kW	63 A / 55 kW	6419410315217	RA5	7.5
KER 8125 RA5	8	125 A	125 A / 55 kW	80 A / 75 kW	6419410342985	RA5	7.5
KER 8160 RA5	8	160 A	160 A / 90 kW	100 A / 90 kW	6419410343012	RA5	7.5
KER 316 YR RA2	3	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410343050	RA2	1.2
KER 325 YR RA2	3	25 A	25 A / 11 kW	25 A / 22 kW	6419410343258	RA2	1.2
KER 340 YR RA2	3	40 A	40 A / 22 kW	32 A / 30 kW	6419410343456	RA2	1.2
KER 363 YR RA4	3	63 A	40 A / 22 kW	40 A / 37 kW	6419410343579	RA4	2.3
KER 380 YR RA4	3	80 A	63 A / 30 kW	40 A / 37 kW	6419410343616	RA4	2.3
KER 3100 YR RA4	3	100 A	100 A / 55 kW	63 A / 55 kW	6419410315224	RA4	2.3
KER 3125 YR RA4	3	125 A	125 A / 55 kW	80 A / 75 kW	6419410343654	RA4	2.3
KER 3160 YR RA5	3	160 A	160 A / 90 kW	100 A / 90 kW	6419410343692	RA5	6.9
KER 3200C YR RA5	3	200 A	200 A / 110 kW		6419410347812	RA5	7.7
KER 3200 YR R6	3	200 A	200 A / 110 kW	200 A / 160 kW	6419410343739	R6	15
KER 3250C YR RA5	3	250 A	250 A / 132 kW		6419410347836	RA5	7.7
KER 3250 YR R6	3	250 A	250 A / 132 kW	250 A / 250 kW	6419410343791	R6	15
KER 3315 YR R6	3	315 A	315 A / 160 kW	315 A / 315 kW	6419410343852	R6	16
KER 3400 YR R6	3	400 A	400 A / 200 kW	400 A / 355 kW	6419410343913	R6	16
KER 3630 YR R7	3	630 A	630 A / 355 kW	630 A / 630 kW	6419410343975	R7	25
KER 3800 YR R10	3	800 A	800 A / 400 kW	800 A / 800 kW	6419410331576	R10	75
KER 31000 YR R10	3	1000 A	1000 A / 560 kW	1000 A / 800 kW	6419410305676	R10	80
KER 31250 YR R10	3	1250 A	1250 A / 710 kW	1250 A / 1000 kW	6419410305690	R10	90
KER 31600 YR R10	3	1600 A	1600 A / 900 kW	1600 A / 1200 kW	6419410305713	R10	100
KER 416 YR RA2	4	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410343159	RA2	1.3
KER 425 YR RA2	4	25 A	25 A / 11 kW	25 A / 22 kW	6419410343357	RA2	1.3
KER 440 YR RA2	4	40 A	40 A / 22 kW	32 A / 30 kW	6419410343555	RA2	1.3
KER 463 YR RA4	4	63 A	40 A / 22 kW	40 A / 37 kW	6419410343593	RA4	2.4
KER 480 YR RA4	4	80 A	63 A / 30 kW	40 A / 37 kW	6419410343630	RA4	2.4
KER 4100 YR RA4	4	100 A	100 A / 55 kW	63 A / 55 kW	6419410315231	RA4	2.4
KER 4125 YR RA4	4	125 A	125 A / 55 kW	80 A / 75 kW	6419410343678	RA4	2.4
KER 4160 YR RA5	4	160 A	160 A / 90 kW	100 A / 90 kW	6419410343715	RA5	7
KER 4200C YR RA5	4	200 A	200 A / 110 kW		6419410347850	RA5	7.8
KER 4200 YR R6	4	200 A	200 A / 110 kW	200 A / 160 kW	6419410343753	R6	16
KER 4250C YR RA5	4	250 A	250 A / 132 kW		6419410347874	RA5	7.8
KER 4250 YR R6	4	250 A	250 A / 132 kW	250 A / 250 kW	6419410343814	R6	16
KER 4315 YR R6	4	315 A	315 A / 160 kW	315 A / 315 kW	6419410343876	R6	16
KER 4400 YR R6	4	400 A	400 A / 200 kW	400 A / 355 kW	6419410343937	R6	16
KER 4630 YR R7	4	630 A	630 A / 355 kW	630 A / 630 kW	6419410344019	R7	26
KER 4800 YR R10	4	800 A	800 A / 400 kW	800 A / 800 kW	6419410324578	R10	77
KER 41000 YR R10	4	1000 A	1000 A / 560 kW	1000 A / 800 kW	6419410363874	R10	82
KER 41250 YR R10	4	1250 A	1250 A / 710 kW	1250 A / 1000 kW	6419410363898	R10	92
KER 41600 YR R10	4	1600 A	1600 A / 900 kW	1600 A / 1200 kW	6419410363911	R10	102
KER 616 YR RA4	6	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410342237	RA4	2.5
KER 625 YR RA4	6	25 A	25 A / 11 kW	25 A / 22 kW	6419410342251	RA4	2.5
KER 640 YR RA4	6	40 A	40 A / 22 kW	32 A / 30 kW	6419410342275	RA4	2.5
KER 663 YR RA4	6	63 A	40 A / 22 kW	40 A / 37 kW	6419410342299	RA4	2.5
KER 680 YR RA4	6	80 A	63 A / 30 kW	40 A / 37 kW	6419410342312	RA4	2.5
KER 6100 YR RA5	6	100 A	100 A / 55 kW	63 A / 55 kW	6419410315248	RA5	7.3
KER 6125 YR RA5	6	125 A	125 A / 55 kW	80 A / 75 kW	6419410342336	RA5	7.3
KER 6160 YR RA5	6	160 A	160 A / 90 kW	100 A / 90 kW	6419410342367	RA5	7.3
KER 6200 YR R7	6	200 A	200 A / 110 kW	200 A / 160 kW	6419410343777	R7	25
KER 6250 YR R7	6	250 A	250 A / 132 kW	250 A / 250 kW	6419410343838	R7	25
KER 6315 YR R8	6	315 A	315 A / 160 kW	315 A / 315 kW	6419410343890	R8	26
KER 6400 YR R8	6	400 A	400 A / 200 kW	400 A / 355 kW	6419410343951	R8	26
KER 816 YR RA4	8	16 A	16 A / 7.5 kW	16 A / 11 kW	6419410342244	RA4	2.6
KER 825 YR RA4	8	25 A	25 A / 11 kW	25 A / 22 kW	6419410342268	RA4	2.6
KER 840 YR RA4	8	40 A	40 A / 22 kW	32 A / 30 kW	6419410342282	RA4	2.6
KER 863 YR RA4	8	63 A	40 A / 22 kW	40 A / 37 kW	6419410342305	RA4	2.6
KER 880 YR RA4	8	80 A	63 A / 30 kW	40 A / 37 kW	6419410342329	RA4	2.6
KER 8100 YR RA5	8	100 A	100 A / 55 kW	63 A / 55 kW	6419410315255	RA5	7.5
KER 8125 YR RA5	8	125 A	125 A / 55 kW	80 A / 75 kW	6419410342350	RA5	7.5
KER 8160 YR RA5	8	160 A	160 A / 90 kW	100 A / 90 kW	6419410342374	RA5	7.5
