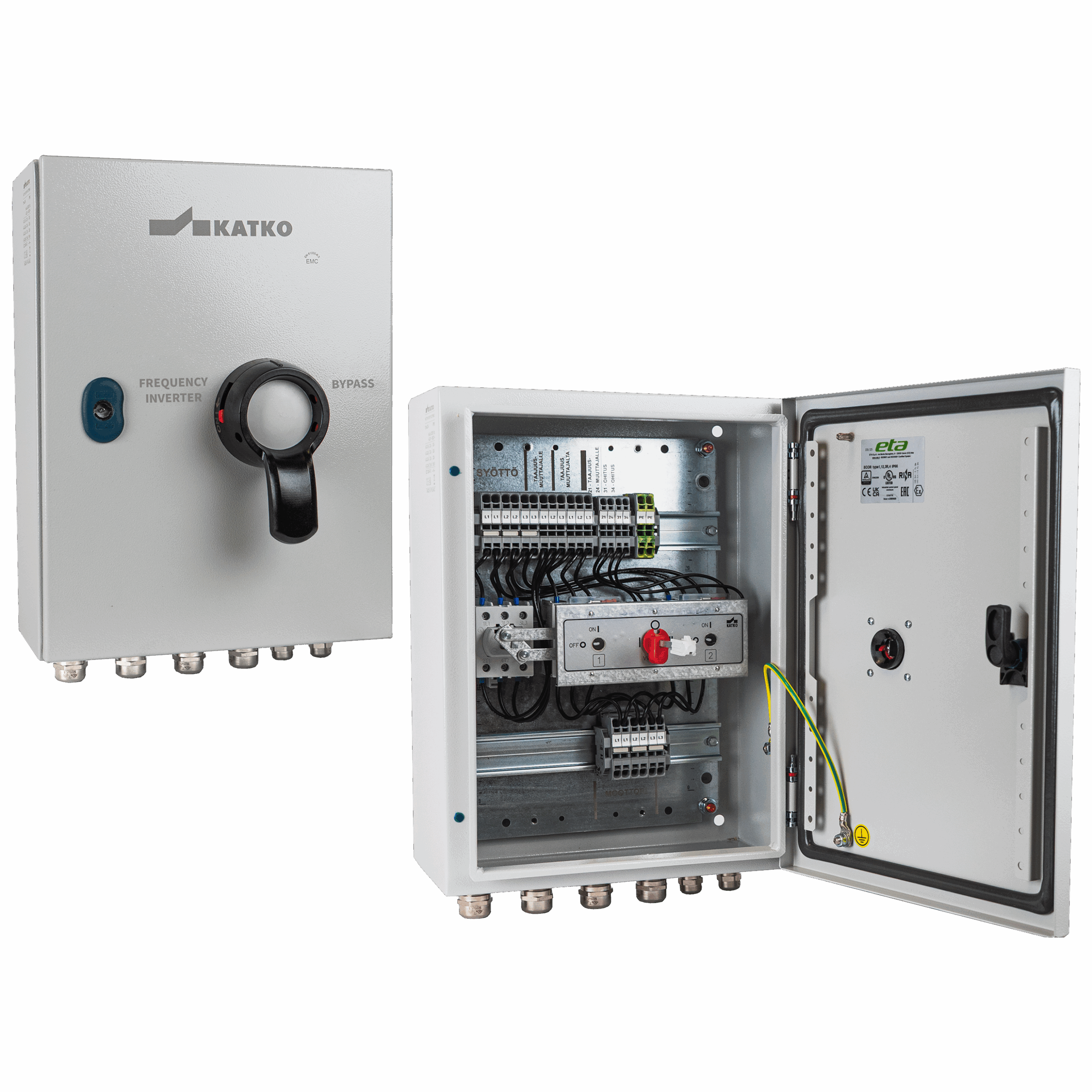

Bypass switch for frequency inverter 16-63A

Polycarbonate (IP65), sheet steel (IP65) or aluminium (IP66) enclosed
R.M.S value 50kA
Padlockable with three locks
Door interlock with defeat mechanism
Tested according to IEC 60 947-3
CB certificates
Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.

Accessories

Note: Certificates may vary between products. Check product specific certificates from the product page.

Data subject to change without notice. Always confirm the data is correct from the seller.

Inquire About This Product Group

Email*
Country*
Company
Phone number
Comments
Request a 3D drawing (.stp)
- Yes
Request a 2D drawing (.dwg)
- Yes
For which product?
Subscribe for a KATKO newsletter
- Yes
Comments
This field is for validation purposes and should be left unchanged.

Products

Type	Number of Poles	AC-22 400/415 V	AC-23 400/415 V	AC-23 690 V	EAN	Enclosure	Weight (kg)
KUM 663 363VV102 2X1V MF11 4XM40P 2XM16P	6	80 A	63 A / 30 kW	40 A / 37 kW	6419410302903	MF11	3.6
KUT 616 316VV102 2X1V T5EMC 4XM25MEMC 2XM16M	6	25 A	20 A / 7.5 kW	20 A / 15 kW	6419410311509	T5	8.5
KUT 625 325VV102 2X1V T5EMC 4XM25MEMC 2XM16M	6	40 A	25 A / 11 kW	25 A / 22 kW	6419410311554	T5	8.5
KUT 663 363VV102 2X1V T5EMC 4XM40MEMC 2XM16M	6	80 A	63 A / 30 kW	40 A / 37 kW	6419410311653	T5	8.5
KUT 640 340VV102 2X1V T5EMC 4XM32MEMC 2XM16M	6	70 A	50 A / 22 kW	32 A / 30 kW	6419410311608	T5	8.5
TKA 616 316SSVV A4EMC 4XM25MEMC M16M	6	16 A	16 A / 7.5 kW		6419410311684	A4	3.1
KUM 616 316VV102 2X1V MF11 4XM25P 2XM16P	6	25 A	20 A / 7.5 kW	20 A / 15 kW	6419410301661	MF11	3.6
KUM 625 325VV102 2X1V MF11 4XM25P 2XM16P	6	40 A	25 A / 11 kW	25 A / 22 kW	6419410302057	MF11	3.6
KUM 640 340VV102 2X1V MF11 4XM32P 2XM16P	6	70 A	50 A / 22 kW	32 A / 30 kW	6419410302453	MF11	3.6
