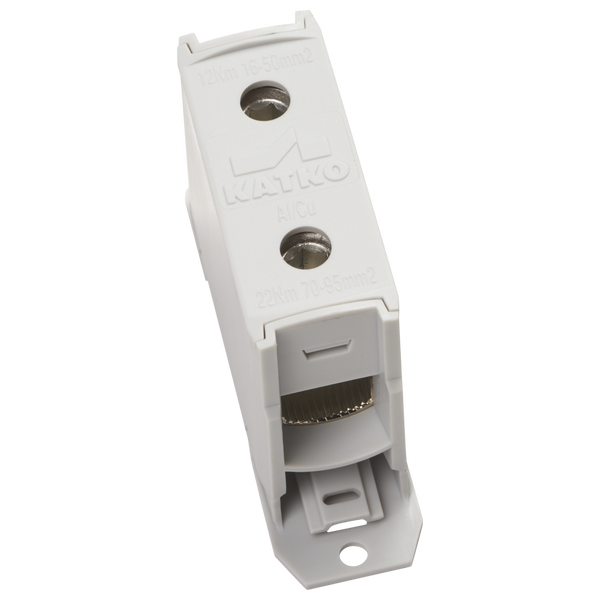

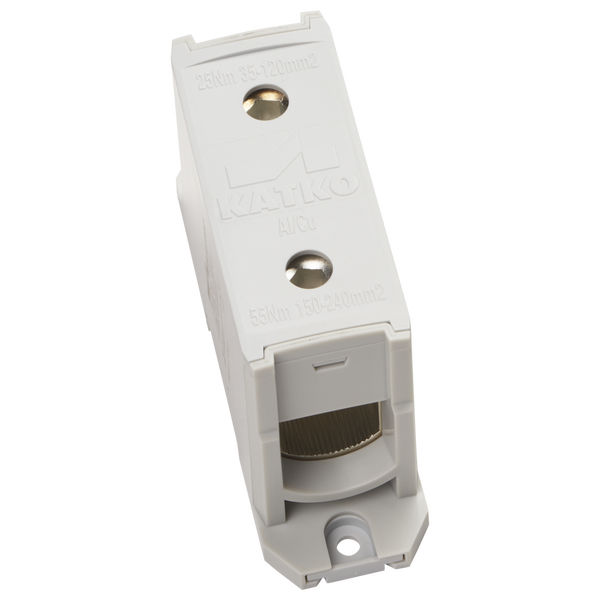

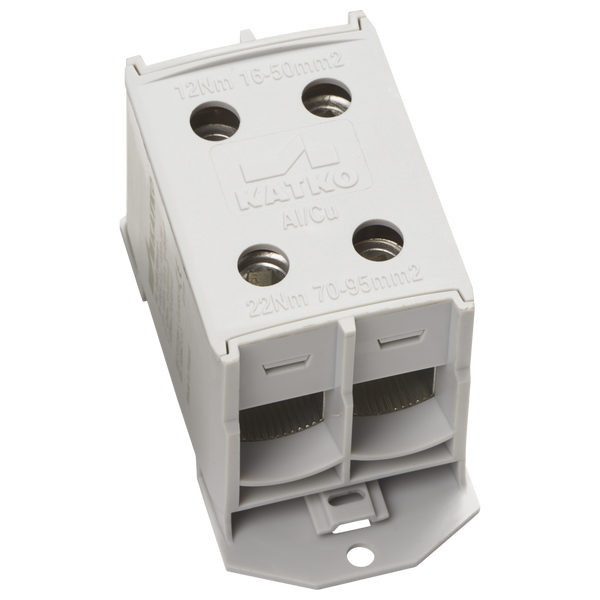

Terminal Blocks
- UL listed connectors, see link below
- Bi-metal terminal suitable for Al (KL terminals) / Cu (KL and KC terminals) cables

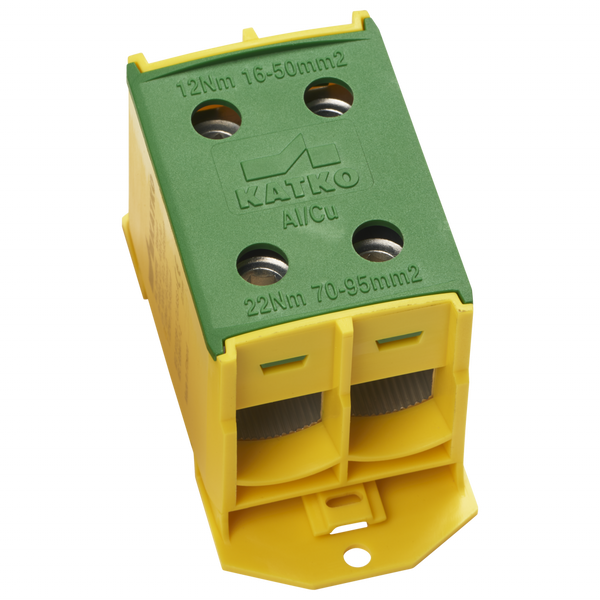

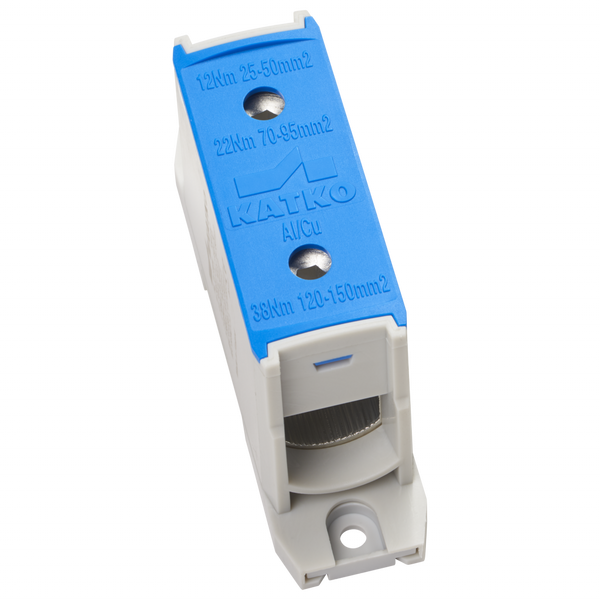

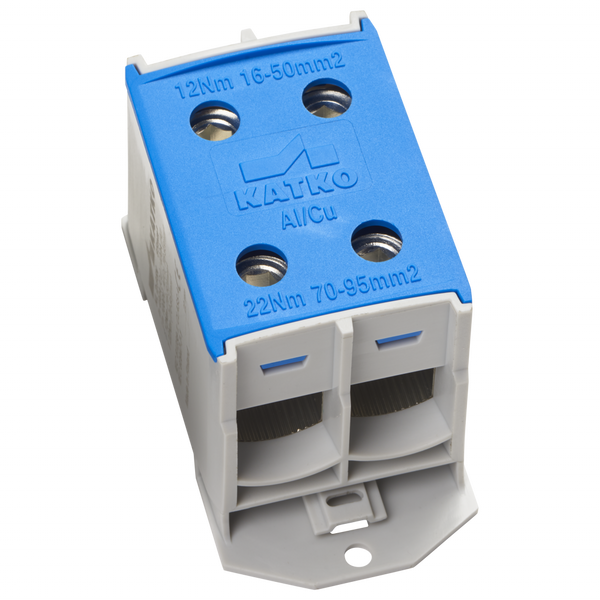

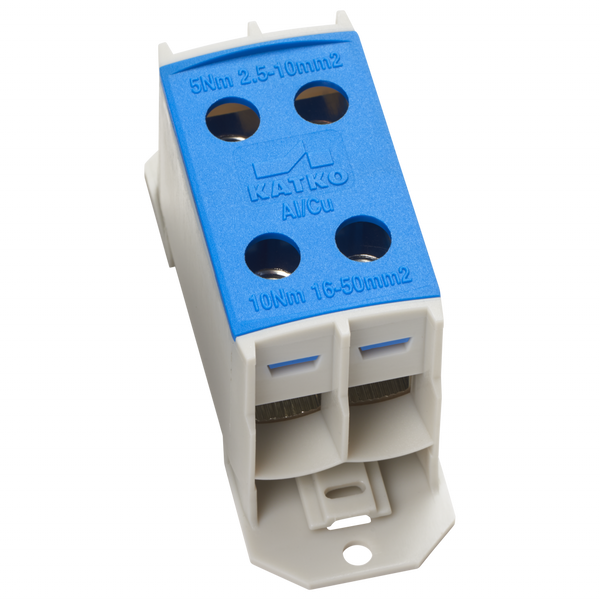

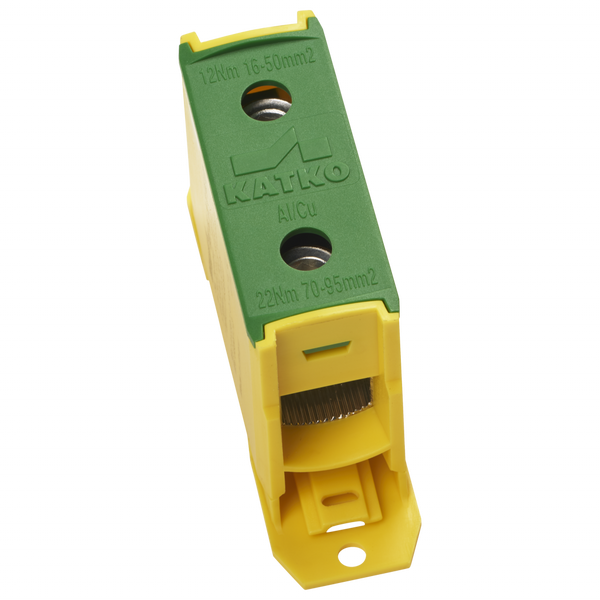

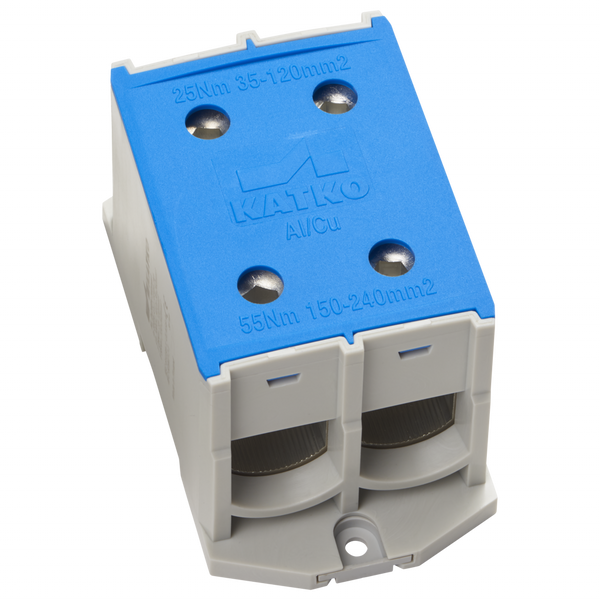

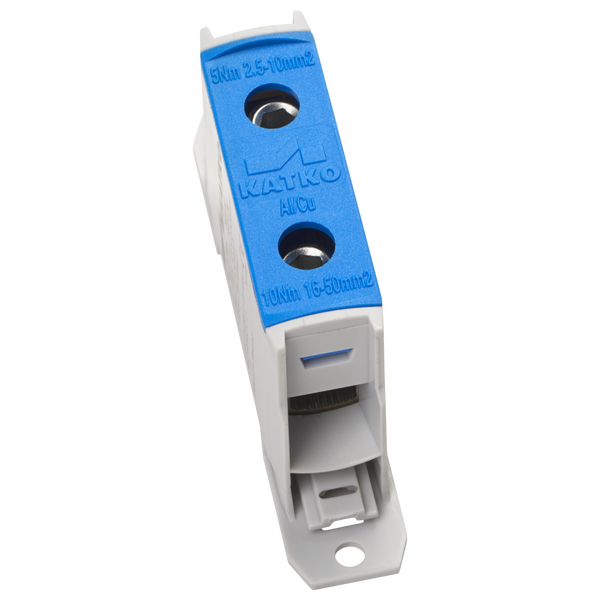

- Available in grey, blue (N) yellow/green (PE), red (P) and black (M)

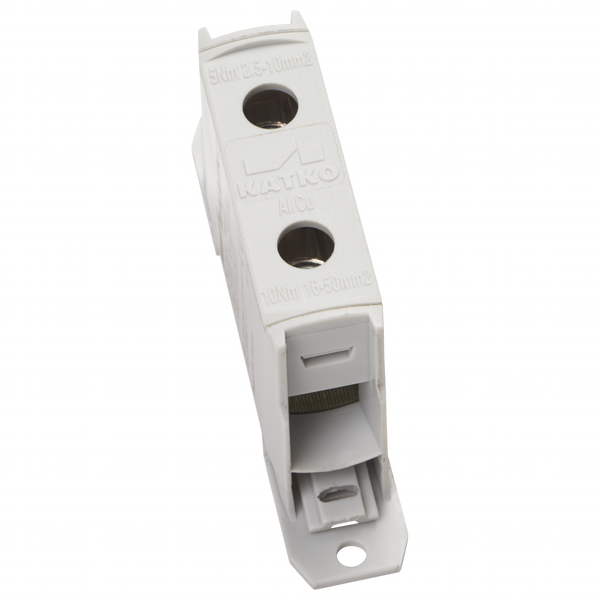

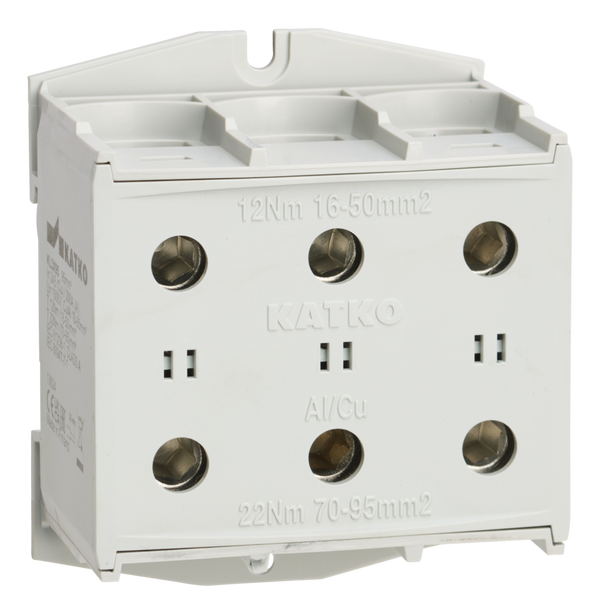

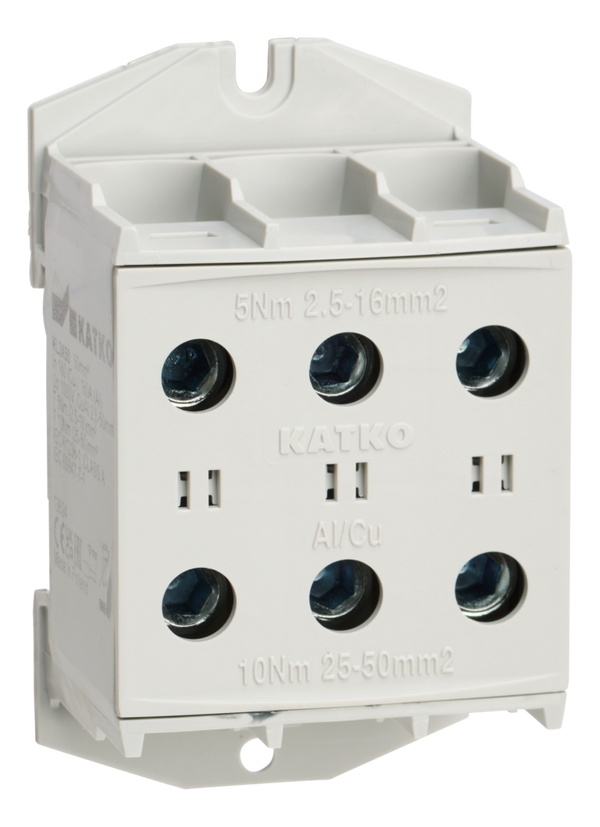

- 50 and 95 mm2 connectors also available as 1-pole branching connector (3x) and 3-pole connector (3x1x)
- 1000 VAC and 1500 VDC
- Touchproof, IP20
- Operating temperature is -25 ℃ …+80 ℃

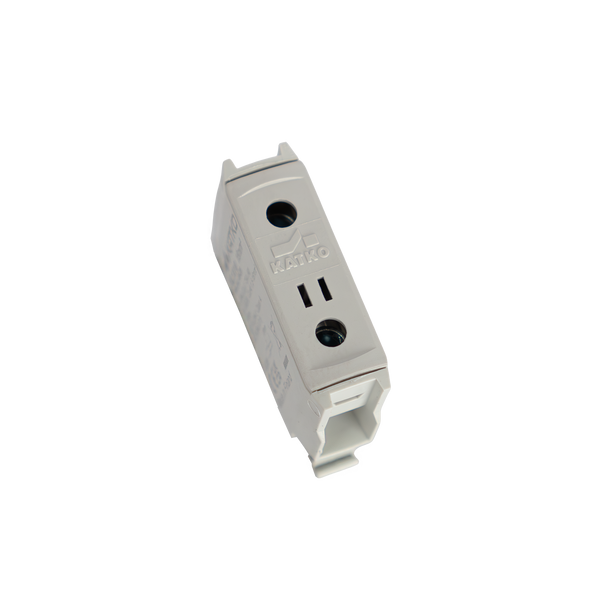

- KC-terminals and KL1X16 models for DIN-rail mounting, refer to detailed product specifications

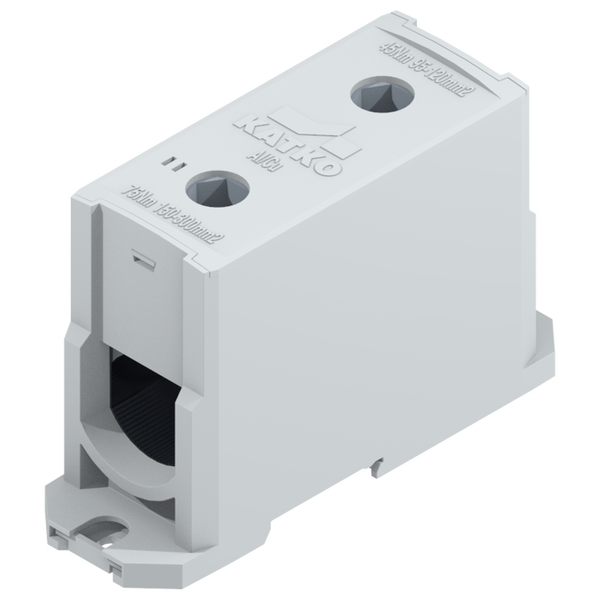

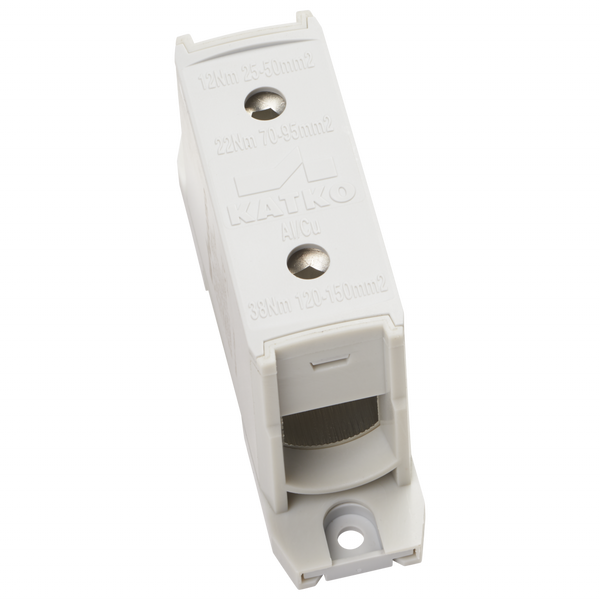

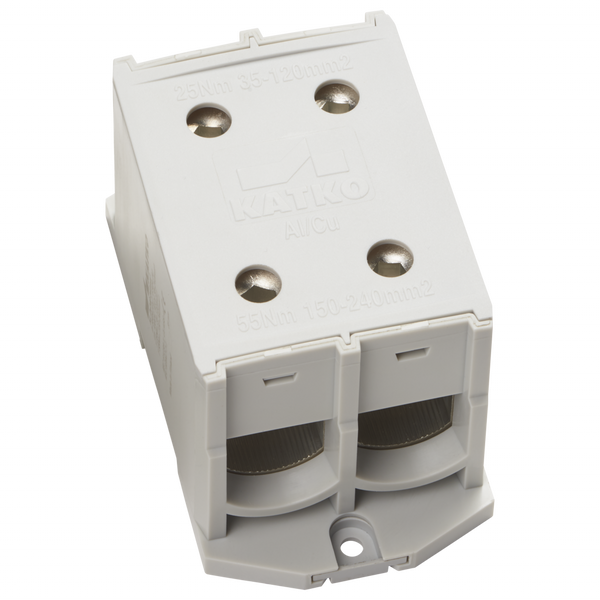

- KL-terminals (excl. KL1X16 models) for DIN-rail or base mounting, refer to detailed product specifications
- Housing and cover in polyamide
- Terminal material KL tin-coated, greased aluminium
- Terminal material KC steel and brass
- Environmentally friendly materials
- Durable laser markings
- Sales unit = 1 piece
Certificates:
- KL range: Certified according to IEC 61238-1 Class A
-
KL range: Certified according to IEC 60947-7-1
Accessories:
- KLTS50 – 300 terminal shrouds available
Related materials:
Conductors per cross section (mm2) table >>
UL 1059 listed Terminal Blocks >>
Note: Certificates may vary between products. Check product specific certificates from the product page.
Data subject to change without notice. Always confirm the data is correct from the seller.
