KU 8200W SV

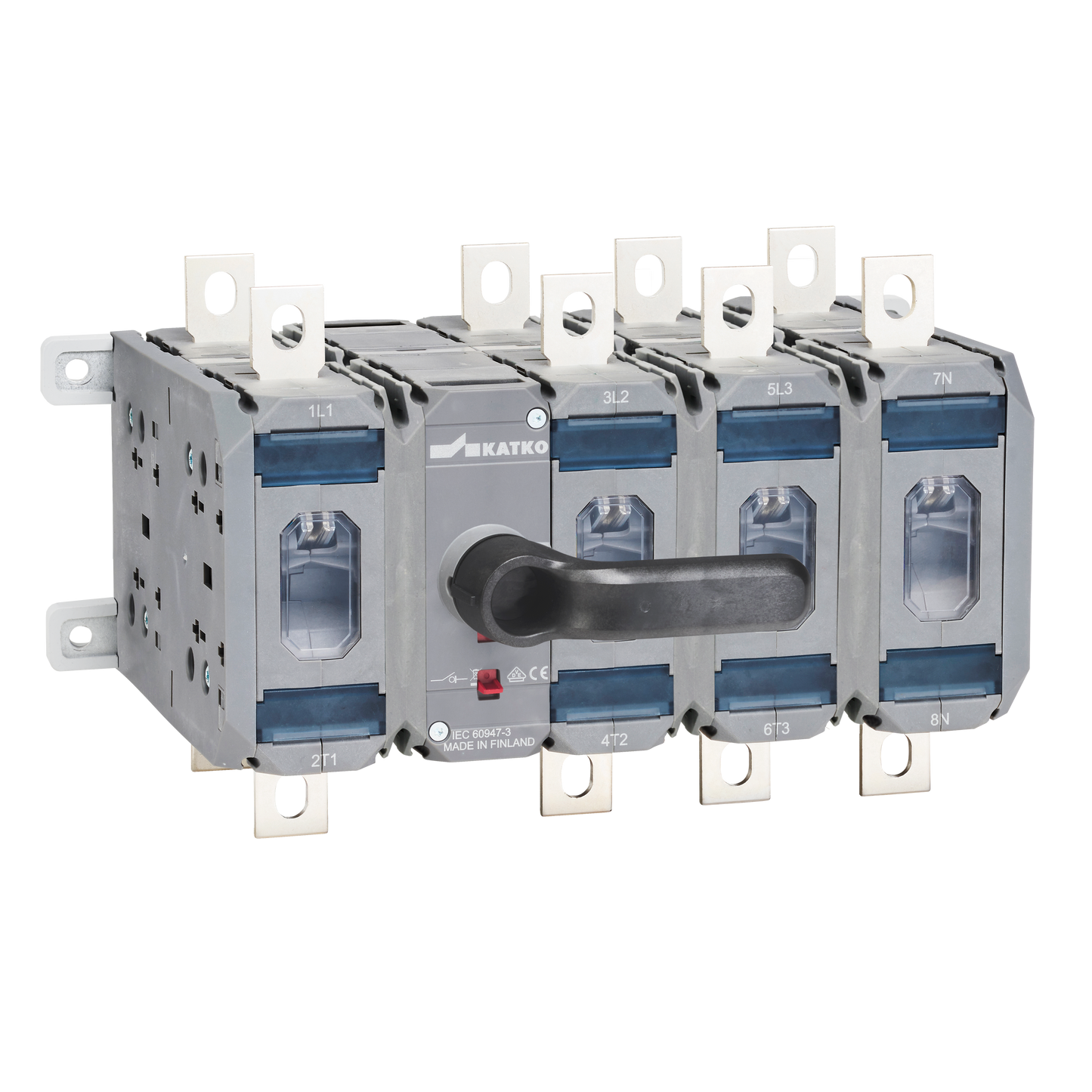

Load break switch 8x200A with direct handle

KU 8200W SV

Katko LoadSafe load break switches 160–800A are high-capacity solutions built for demanding industrial and power distribution networks up to 800 A. They support heavy-duty load switching, motor isolation and backup power transfer applications. These switches are engineered for reliability and durability, ensuring dependable operation where continuity and performance matter most.

GTIN
6419410205440
Rated operational current AC-22A 415V (A)
200
Rated operational current AC-22A 690V (A)
200

Looking for more information about this product?

Our team is here to help.

 View full details

Product details and documents

Technical data

Depth
150 mm
ETIM Class
EC000216
E-number FI
3609221
GTIN
6419410205440
Height
113 mm
Long product name
Rotary switch, 8-pole, Includes direct handle mechanism
Max. term. torque (Nm)
15..22
Mech. endurance (no. of oper.)
16000
Net weight
3.83 kg
Nom. values w/cable size (mm²)
95
Number of poles
8
Product type
KU 8200W SV
Rated breaking cap. ICN AC-23A 415V (A)
1600
Rated breaking cap. ICN AC-23A 500V (A)
1600
Rated breaking cap. ICN AC-23A 690V (A)
1600
Rated fused short-ckt current back-up fuse opt 1 (A)
250
Rated fused short-ckt current back-up fuse opt 2 (A)
315
Rated fused short-ckt current peak value (kA)
26
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt current RMS Ik opt 2 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
200
Rated operational current AC-21A 500V (A)
200
Rated operational current AC-21A 690V (A)
200
Rated operational current AC-22A 415V (A)
200
Rated operational current AC-22A 500V (A)
200
Rated operational current AC-22A 690V (A)
200
Rated operational current AC-23A 415V (A)
200
Rated operational current AC-23A 500V (A)
200
Rated operational current AC-23A 690V (A)
200
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
110
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
132
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
160
Rated short-ckt. making cap. Icm 690V (kA)
14
Rated short-time withstand current 1s Icw 1000V (kA)
8
Rated therm. current Ith (A)
250
Short product description
Load break switch 8x200A with direct handle
Switch type
Load Break Switch
Technical name
8x200A 690V AC-22
Terminals bolt size (Cu mm²)
M8
Volume
3.2544 l
Width
192 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
150 mm
Package size 1 GTIN code
6419410205440
Package size 1 height
113 mm
Package size 1 volume
2.5425 l
Package size 1 weight
3.83 kg
Package size 1 width
150 mm
Sales unit
1
