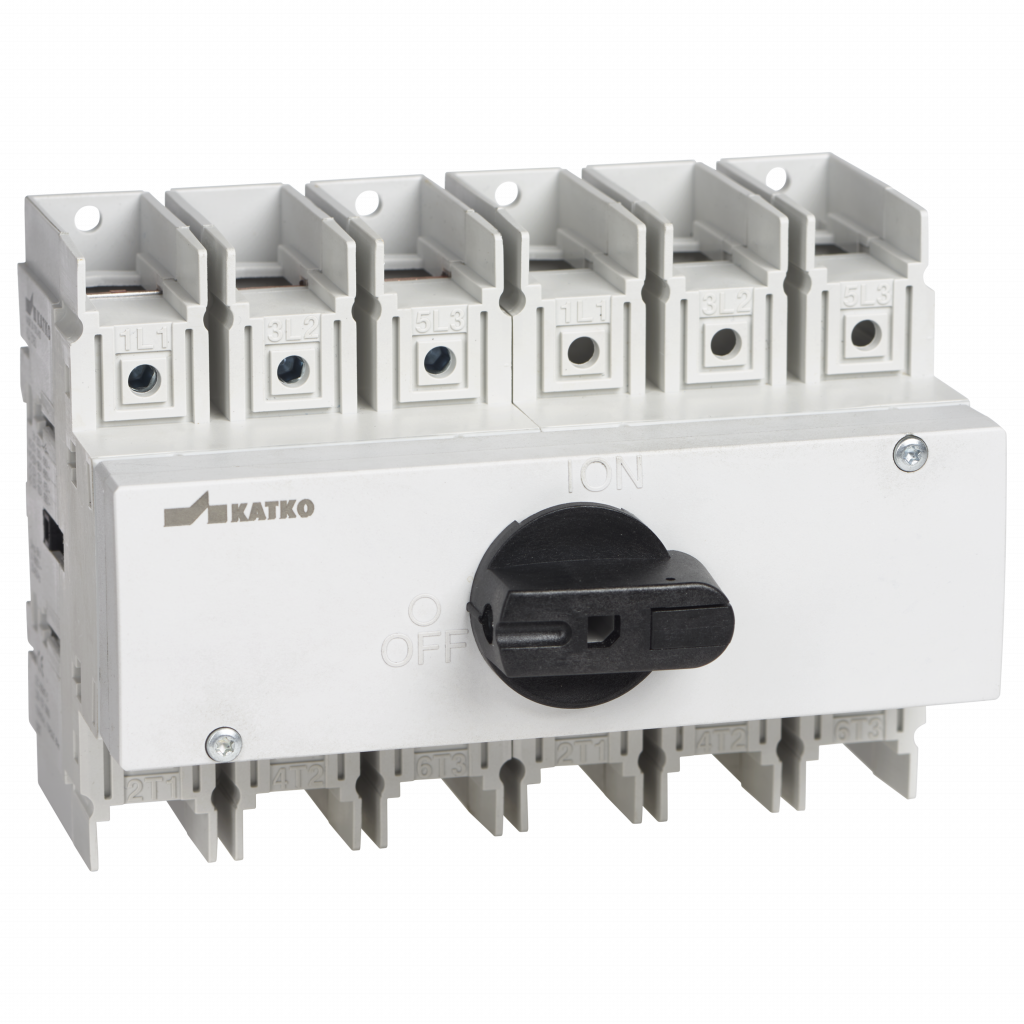

KU 6160

KU Rotary switches and change-over switches 100-160A

  • Modular design
  • DIN-rail mounting
  • 3-pole and 4-pole KU-switches as standard
  • Change-over switches: CO included in type name
  • 6-pole and 8-pole versions consist of two 3-pole or 4-pole KU-switches connected by a parallel kit
  • Switch technology by means of silver contacts ensures safe and durable operation
  • Compatible with handles LK10 and LK11 (3 and 4 poles) and LK12 (6 and 8 poles) and LK12CO102 (change-over switch)
  • Shafts L=100/200/300 AD11 and L=100/200/300 AD11/VT (3 and 4 poles), L=100/200/300 AD12/VT (6 and 8 poles and change-over switch)
  • Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.
Technical Data Accessories Handle & Shaft

Product details

SKU KU 6160
AC-22 400/415 V (A) 160 A
AC-22 690 V (A) 160 A
AC-23 400/415 V (A/kW) 160 A / 90 kW
AC-23 690 V (A/kW) 100 A / 90 kW
Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size 6-70
E-Number 3600796
EAN 6419410203545
Number of Poles 6
Operation Rotary
Switch type Load Break Switch
Weight (kg) 0.97

Dimensional drawing

Product diagram
