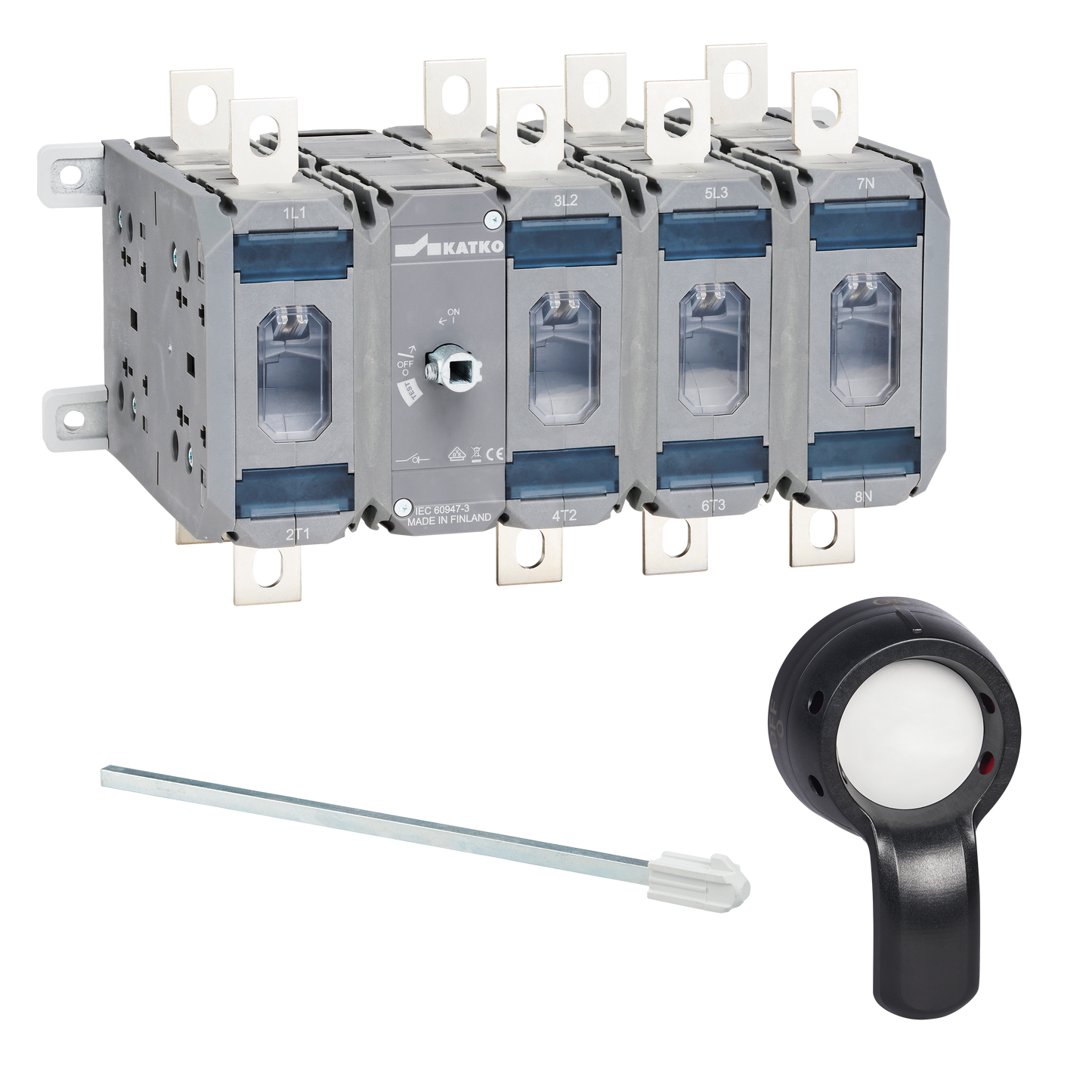

KU 4160PWCO L200AD12T6LKX100

Change-over switch 1-0-2 4x160A

KU 4160PWCO L200AD12T6LKX100

Katko LoadSafe load break switches 160–800A are high-capacity solutions built for demanding industrial and power distribution networks up to 800 A. They support heavy-duty load switching, motor isolation and backup power transfer applications. These switches are engineered for reliability and durability, ensuring dependable operation where continuity and performance matter most.

E-number FI
3609228
GTIN
6419410205518
Rated operational current AC-22A 415V (A)
160
Rated operational current AC-22A 690V (A)
160

Looking for more information about this product?

Our team is here to help.

 View full details

Product details and documents

Technical data

Depth
150 mm
ETIM Class
EC000216
E-number FI
3609228
GTIN
6419410205518
Height
163 mm
Long product name
Rotary switch, Changeover switch with 1-0-2 positions, 4-pole, Includes shaft 200 mm, Handle
Max. term. torque (Nm)
15..22
Mech. endurance (no. of oper.)
16000
Net weight
4.4446 kg
Nom. values w/cable size (mm²)
95
Number of poles
4
Product type
KU 4160PWCO L200AD12T6LKX100
Rated breaking cap. ICN AC-23A 415V (A)
1280
Rated breaking cap. ICN AC-23A 500V (A)
1280
Rated breaking cap. ICN AC-23A 690V (A)
1280
Rated fused short-ckt current back-up fuse opt 1 (A)
250
Rated fused short-ckt current back-up fuse opt 2 (A)
315
Rated fused short-ckt current peak value (kA)
26
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt current RMS Ik opt 2 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
160
Rated operational current AC-21A 500V (A)
160
Rated operational current AC-21A 690V (A)
160
Rated operational current AC-22A 415V (A)
160
Rated operational current AC-22A 500V (A)
160
Rated operational current AC-22A 690V (A)
160
Rated operational current AC-23A 415V (A)
160
Rated operational current AC-23A 500V (A)
160
Rated operational current AC-23A 690V (A)
160
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
90
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
110
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
132
Rated short-ckt. making cap. Icm 690V (kA)
14
Rated short-time withstand current 1s Icw 1000V (kA)
8
Rated therm. current Ith (A)
200
Short product description
Change-over switch 1-0-2 4x160A
Switch type
Load Break Switch
Technical name
4x160A 690V AC-22
Terminals bolt size (Cu mm²)
M8
Volume
4.6944 l
Width
192 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
150 mm
Package size 1 GTIN code
6419410205518
Package size 1 height
163 mm
Package size 1 volume
3.6675 l
Package size 1 weight
4.4446 kg
Package size 1 width
150 mm
Sales unit
1
