KU 3250W SV

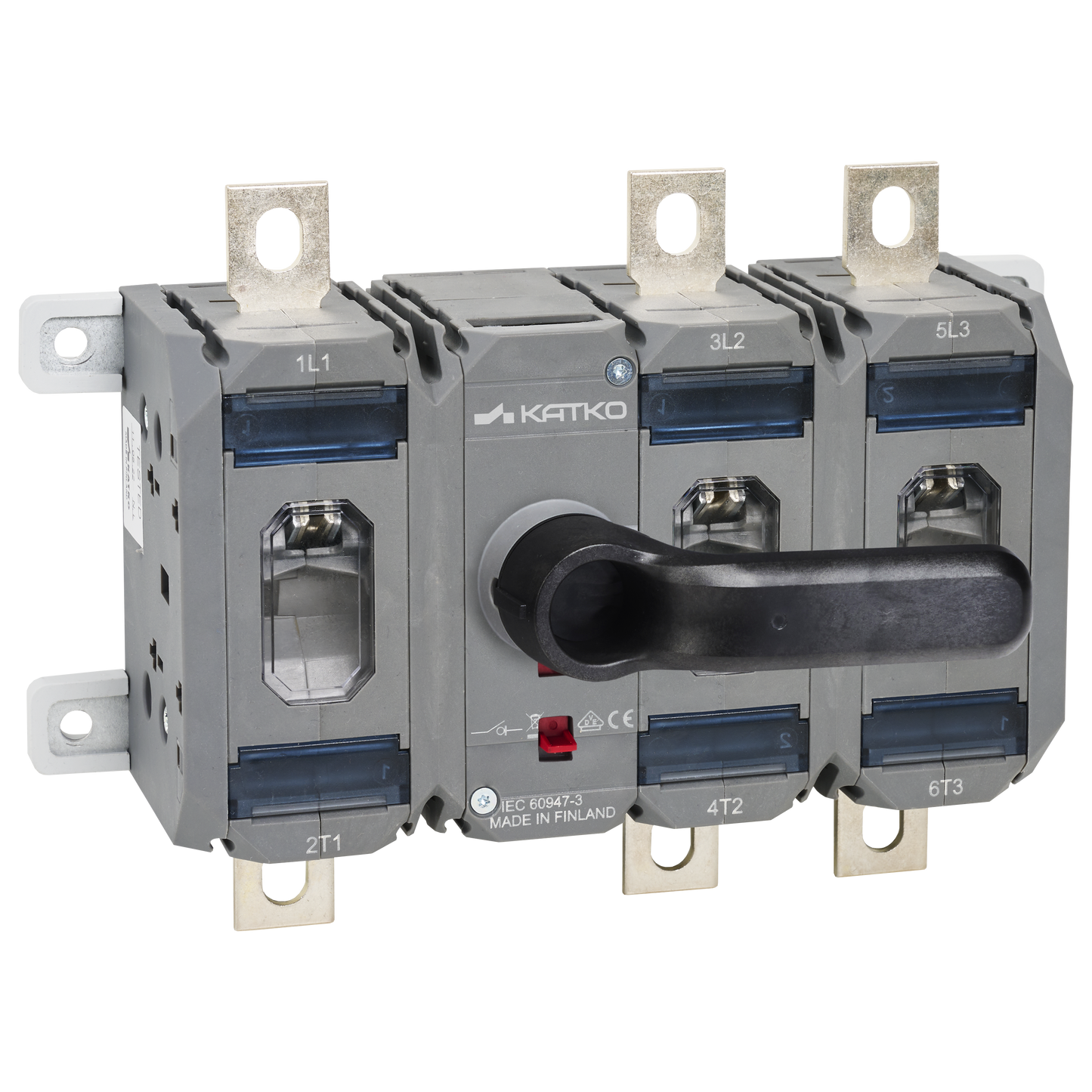

Load break switch 3x250A with direct handle

KU 3250W SV

Katko LoadSafe load break switches 160–800A are high-capacity solutions built for demanding industrial and power distribution networks up to 800 A. They support heavy-duty load switching, motor isolation and backup power transfer applications. These switches are engineered for reliability and durability, ensuring dependable operation where continuity and performance matter most.

E-number FI
3602997
GTIN
6419410205327
Rated operational current AC-22A 415V (A)
250
Rated operational current AC-22A 690V (A)
250

Looking for more information about this product?

Our team is here to help.

 View full details

Product details and documents

Technical data

Depth
150 mm
ETIM Class
EC000216
E-number FI
3602997
GTIN
6419410205327
Height
113 mm
Long product name
Rotary switch, 3-pole, Includes direct handle mechanism
Max. term. torque (Nm)
15..22
Mech. endurance (no. of oper.)
16000
Net weight
1.4679 kg
Nom. values w/cable size (mm²)
120
Number of poles
3
Product type
KU 3250W SV
Rated breaking cap. ICN AC-23A 415V (A)
2000
Rated breaking cap. ICN AC-23A 500V (A)
2000
Rated breaking cap. ICN AC-23A 690V (A)
2000
Rated fused short-ckt current back-up fuse opt 1 (A)
250
Rated fused short-ckt current back-up fuse opt 2 (A)
315
Rated fused short-ckt current peak value (kA)
26
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt current RMS Ik opt 2 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
250
Rated operational current AC-21A 500V (A)
250
Rated operational current AC-21A 690V (A)
250
Rated operational current AC-22A 415V (A)
250
Rated operational current AC-22A 500V (A)
250
Rated operational current AC-22A 690V (A)
250
Rated operational current AC-22A 800V (A)
250
Rated operational current AC-23A 1000V (A)
135
Rated operational current AC-23A 415V (A)
250
Rated operational current AC-23A 500V (A)
250
Rated operational current AC-23A 690V (A)
250
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
132
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
160
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
250
Rated short-ckt. making cap. Icm 690V (kA)
14
Rated short-time withstand current 1s Icw 1000V (kA)
8
Rated therm. current Ith (A)
315
Short product description
Load break switch 3x250A with direct handle
Switch type
Load Break Switch
Technical name
3x250A 690V AC-22
Terminals bolt size (Cu mm²)
M8
Volume
2.6612 l
Width
157 mm
