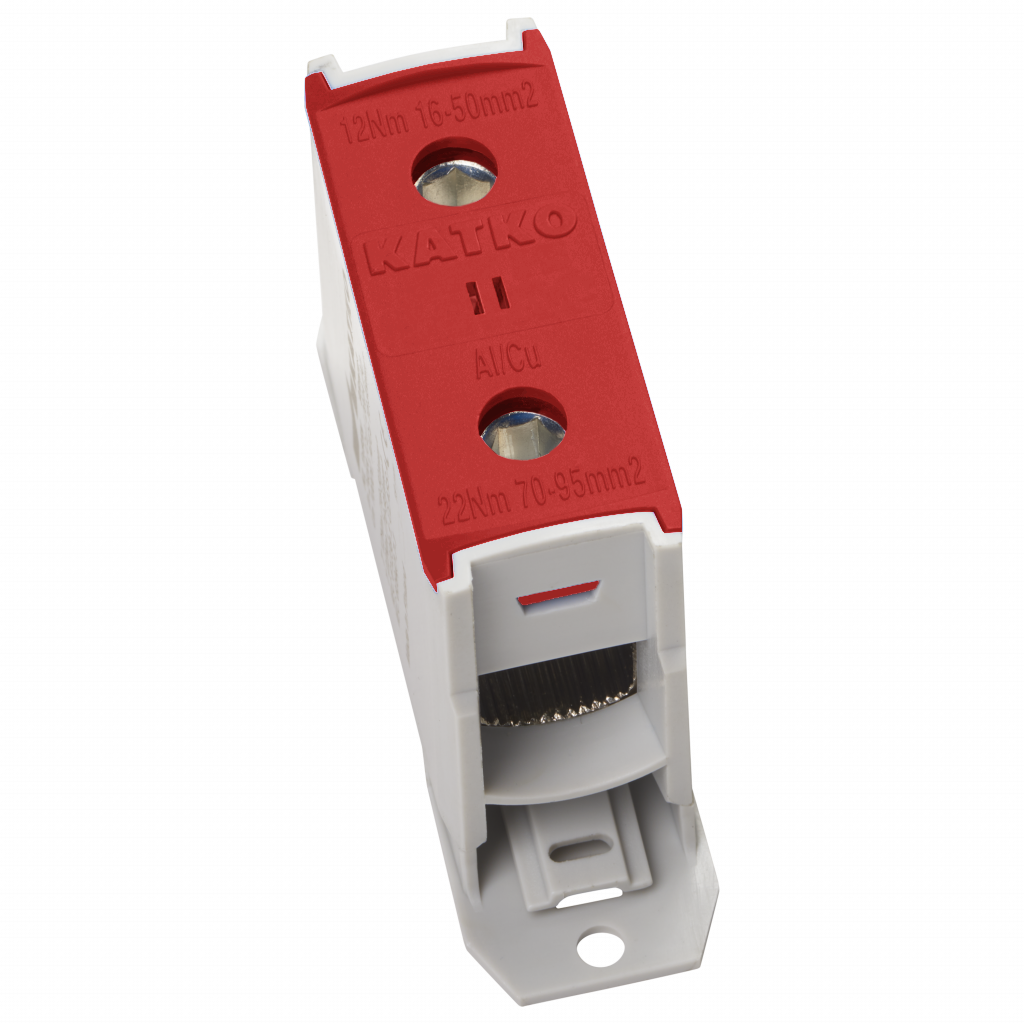

Katko ConnectSafe terminal blocks provide safe, reliable and durable electrical connections for industrial and building installations. Designed for aluminium and copper conductors, the range includes screw and DIN-rail mounted terminal blocks that ensure secure, maintenance-free connections and efficient installation. Robust construction and clear design support long service life and dependable performance in demanding electrical systems.
Technical data
Al (mm²)
6-95
Cu (mm²)
6-95
Depth
49 mm
ETIM Class
EC000897
E-number FI
1942153
GTIN
6419410338148
Height
62.5 mm
In Al
200.0
In Cu
245.0
Key size
Hex 6
Nominal voltage
1000V AC / 1500V DC
Product type
KL1X95P
Short product description
Terminal block KL 1xAl/Cu 6-95mm2 Red
Torque Al/Cu (Nm)
12 (16 - 50 mm²) / 22 (70 - 95 mm²)
Volume
0.0735 l
Width
24 mm
Dimensional drawing
Logistical data
Package size 1
22
Package size 1 GTIN code
6419410338148
Downloadables
- Dimensional drawings media (ConnectSafe_KL1X95_Dim.png)
- Brochures (Katko ConnectSafe Catalogue - Terminal Blocks and Cable Connectors EN)
- Brochures (Katko ConnectSafe Tuoteluettelo - Liittimet ja Kojeliittimet FI)
- Installation manuals (KATKO_ConnectSafe_KL_range_installation_manual_79_en.pdf)
- Installation manuals (KATKO_ConnectSafe_KL_range_installation_manual_79_fi.pdf)
- Installation manuals (KATKO_ConnectSafe_KL1X50_KL1X95_installation_manual_79_en.pdf)
- Installation manuals (KATKO_ConnectSafe_KL1X50_KL1X95_installation_manual_79_fi.pdf)
- Installation manuals (KATKO_ConnectSafe_KL1X50_KL1X95_UL_installation_manual_81.pdf)
