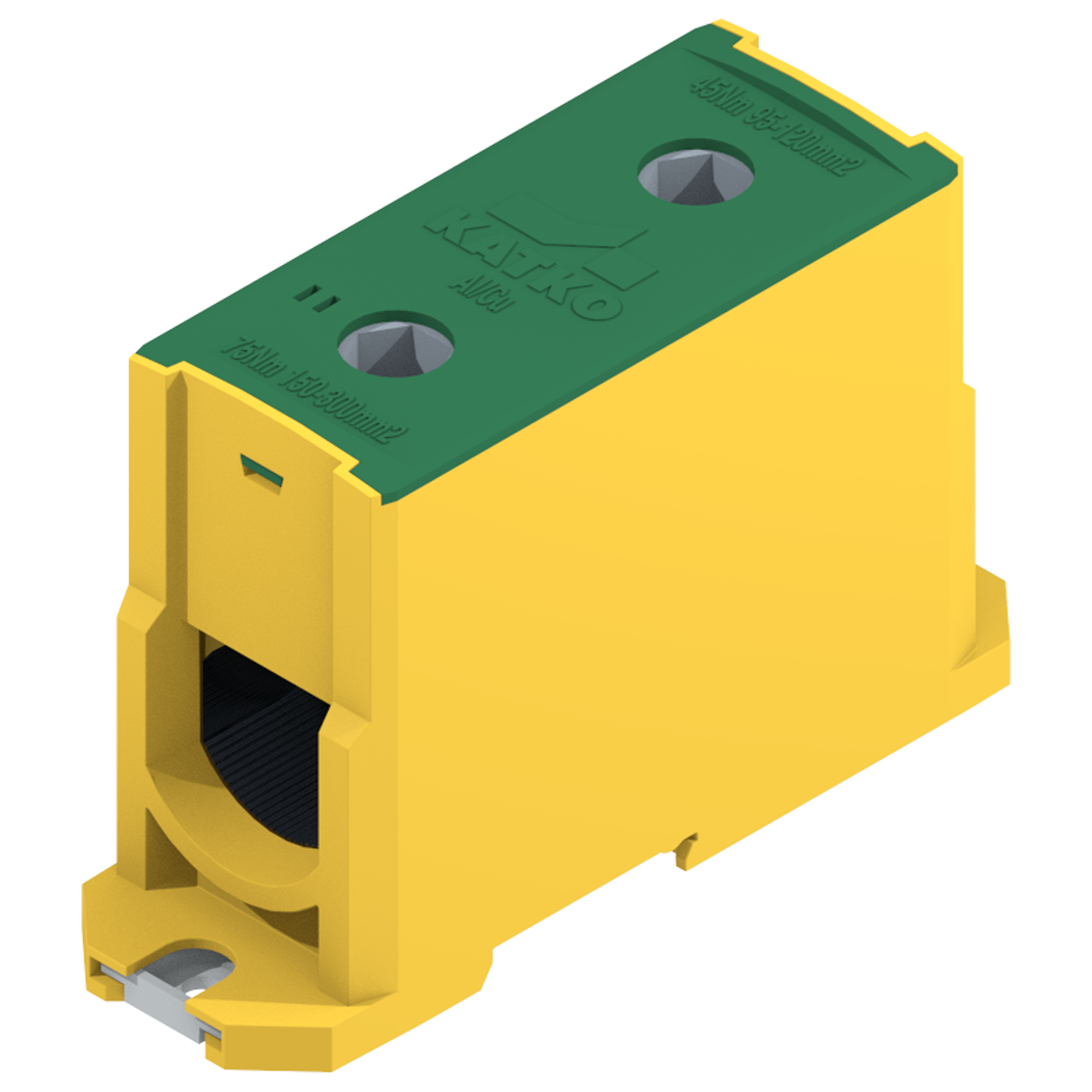

Katko ConnectSafe terminal blocks provide safe and reliable electrical connections for demanding industrial and building applications. Suitable for both copper and aluminum conductors, they are available with screw and DIN-rail mounting options, enabling fast and easy installation. Their robust construction and clear design ensure long service life and trouble-free operation. ConnectSafe terminals meet high industry standards and international approvals, delivering dependable performance for professional use.
Technical data
Al (mm²)
95-300
Cu (mm²)
95-300
Depth
83.5 mm
ETIM Class
EC000897
E-number FI
1942126
GTIN
6419410378816
Height
109 mm
In Al
400.0
In Cu
520.0
Key size
Hex 12
Net weight
0.6576 kg
Nominal voltage
1000V AC / 1500V DC
Product type
KL1X300PE
Short product description
Terminal block KL 1xAl/Cu 95-300mm2 Yellow/Green
Torque Al/Cu (Nm)
45 (95-120 mm²) / 75 (150-300 mm²)
Volume
0.4005 l
Width
44 mm
Dimensional drawing
Logistical data
Package size 1
12
Package size 1 GTIN code
6419410378816
Package size 1 weight
0.6576 kg
