Katko ConnectSafe terminal blocks provide safe, reliable and durable electrical connections for industrial and building installations. Designed for aluminium and copper conductors, the range includes screw and DIN-rail mounted terminal blocks that ensure secure, maintenance-free connections and efficient installation. Robust construction and clear design support long service life and dependable performance in demanding electrical systems.
Technical data
Al (mm²)
95-300
Cu (mm²)
95-300
Depth
83.5 mm
ETIM Class
EC000897
E-number FI
1942165
GTIN
6419410338261
Height
109 mm
In Al
400.0
In Cu
520.0
Key size
Hex 12
Nominal voltage
1000V AC / 1500V DC
Product type

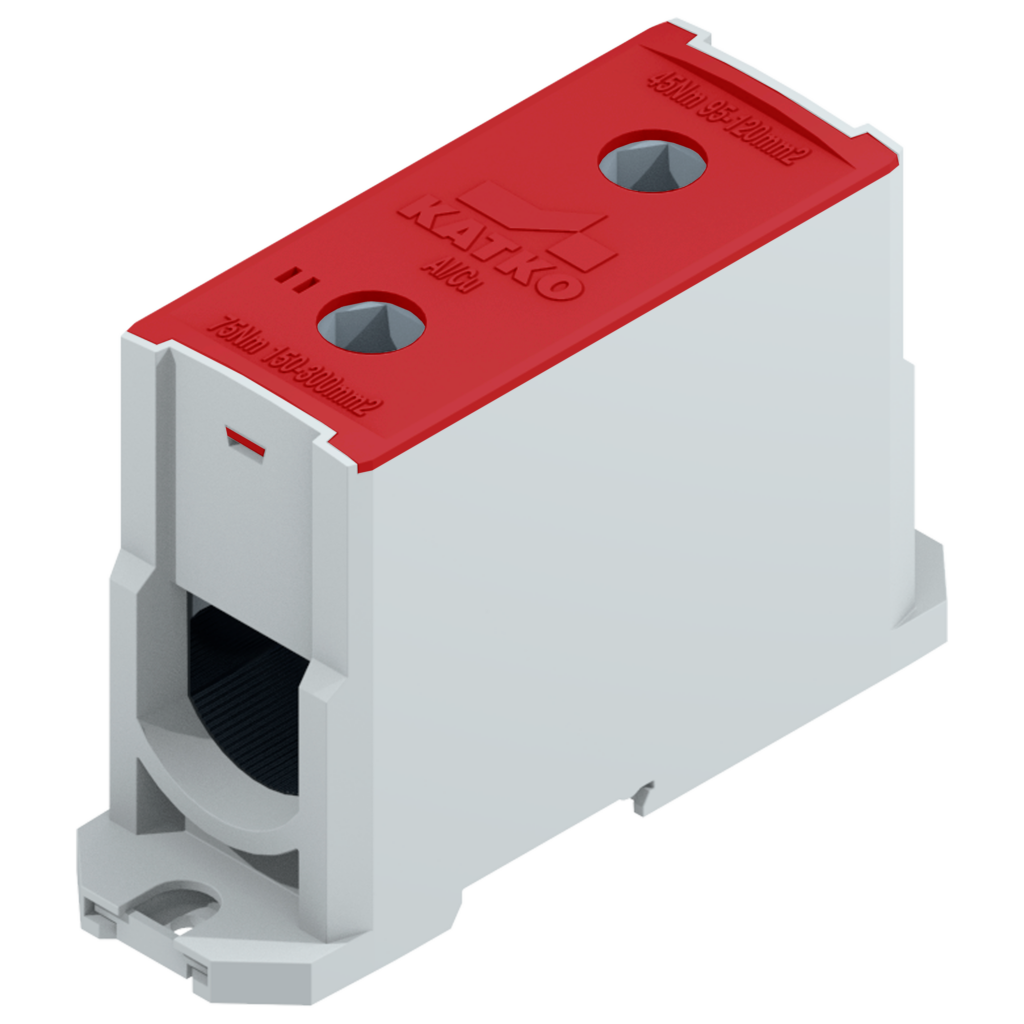

KL1X300P
Short product description
Terminal block KL 1xAl/Cu 95-300mm2 Red
Torque Al/Cu (Nm)
45 (95-120 mm²) / 75 (150-300 mm²)
Volume
0.4005 l
Width
44 mm
Dimensional drawing
Logistical data
Package size 1
12
Package size 1 GTIN code
6419410338261
Downloadables
- Dimensional drawings media (ConnectSafe_KL1X300_Dim.png)
- Brochures (Katko ConnectSafe Catalogue - Terminal Blocks and Cable Connectors EN)
- Brochures (Katko ConnectSafe Tuoteluettelo - Liittimet ja Kojeliittimet FI)
- DWG files (ConnectSafe_KL1X300P.zip)
- Installation manuals (KATKO_ConnectSafe_KL_range_installation_manual_79_en.pdf)
- Installation manuals (KATKO_ConnectSafe_KL_range_installation_manual_79_fi.pdf)
- Installation manuals (KATKO_ConnectSafe_KL1X300_installation_manual_79_en.pdf)
- Installation manuals (KATKO_ConnectSafe_KL1X300_installation_manual_79_fi.pdf)
