Data subject to change without notice. Always confirm the data is correct from the seller.

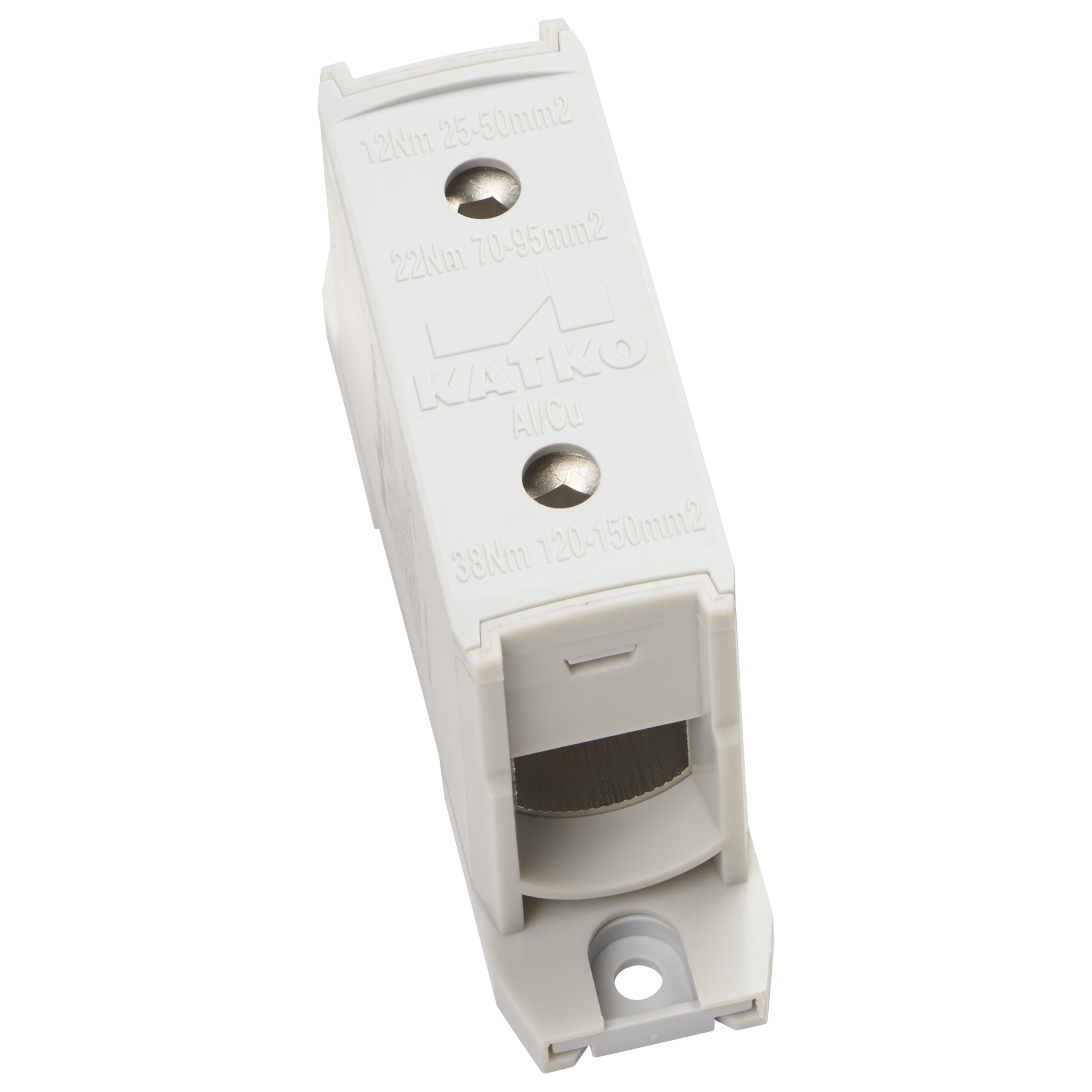

KL1X150

UL Listed Terminal Blocks

  • UL listed connector
  • Sales unit = 1 piece
  • Bi-metal terminal suitable for Al (KL terminals) / Cu (KL and KC terminals) cables
  • Available in grey, blue (N) and yellow/green (PE)
  • Touchproof, IP20
  • Housing and cover in polyamide
  • Terminal material KL tin-coated, greased aluminium
  • Environmentally friendly materials
  • Durable laser markings

UL CATALOGUE PAGE>>

Terminal Blocks

  • UL listed connectors, see link below
  • Sales unit = 1 piece
  • Bi-metal terminal suitable for Al (KL terminals) / Cu (KL and KC terminals) cables
  • Available in grey, blue (N) and yellow/green (PE)
  • 50 and 95 mm2 connectors also available as 1-pole branching connector (3x) and 3-pole connector (3x1x)
  • Touchproof, IP20
  • Housing and cover in polyamide
  • KL range: Certified according to IEC 61238-1 Class A
  • KL range: Certified according to IEC 60947-7-1
  • Terminal material KL tin-coated, greased aluminium
  • Terminal material KC steel and brass
  • KC-terminals and KL1X16 models for DIN-rail mounting, refer to detailed product specifications
  • KL-terminals (excl. KL1X16 models) for DIN-rail or base mounting, refer to detailed product specifications
  • Environmentally friendly materials
  • Durable laser markings
  • More information and package sizes from the catalogue
  • KLTS50 – 300 terminal shrouds available

Connector catalogue >>

Conductors per cross section (mm2) table >>

UL 1059 listed Terminal Blocks >>

Product details

SKU KL1X150
Al mm² 25 - 150
Color L
Cu mm² 25 - 150
E-Number 1942055
EAN 6419410378373
In (Al) (A) 250
In (Cu) (A) 320
Key size Hex 6
Mounting Screw / DIN
Number of Conductors 2
Package size 18
Torque Al/Cu (Nm) 12 (25 - 50 mm²) / 22 (70 - 95 mm²) / 38 (120 - 150 mm²)
Un (V) 1000
Weight (lb/kg) 0.399 / 0.181

Dimensional drawing

Product diagram
