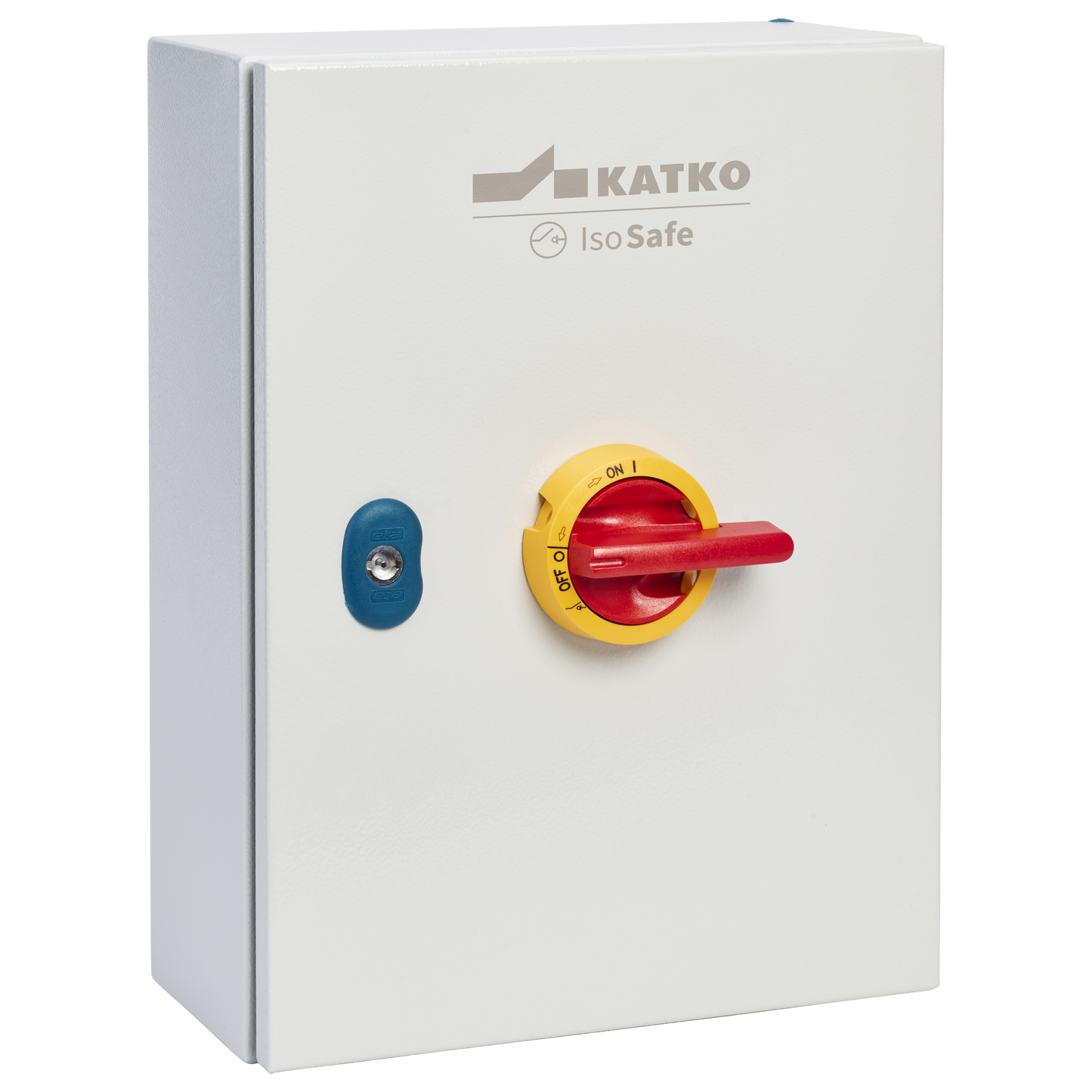

KET 4200C YR T5

Isolating switch 4x200A IP66

KET 4200C YR T5

Katko IsoSafe sheet steel enclosed safety switches are designed for demanding industrial applications where mechanical strength and operational reliability are critical. The robust sheet steel enclosure provides excellent protection against impact and external stress, ensuring safe and dependable operation in harsh environments.

Clear construction and reliable safety features support safe use and maintenance even in heavy-duty applications. Designed and manufactured in Finland, IsoSafe sheet steel switches reflect decades of industrial experience, meet international safety and quality standards, and are trusted wherever reliability cannot be compromised.

GTIN
6419410341353
Rated operational current AC-23A 415V (A)
200
Enclosure type
Painted sheet steel
Enclosure
T5 (300 x 400 x 150 mm)

Looking for more information about this product?

Our team is here to help.

 View full details

Product details and documents

Technical data

Depth
150 mm
EMC
false
Enclosure
T5 (300 x 400 x 150 mm)
Enclosure type
Painted sheet steel
ETIM Class
EC000216
GTIN
6419410341353
Height
400 mm
IP rating
IP66
Long product name
4-pole, Yellow-red handle, Sheet steel enclosure; W300 x H400 x D150
Max. term. torque (Nm)
15..22
Mech. endurance (no. of oper.)
16000
Net weight
8.7229 kg
Nom. values w/cable size (mm²)
95
Number of poles
4
Product type
KET 4200C YR T5
Rated breaking cap. ICN AC-23A 415V (A)
1600
Rated fused short-ckt current back-up fuse opt 1 (A)
250
Rated fused short-ckt current peak value (kA)
22
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
200
Rated operational current AC-21A 500V (A)
200
Rated operational current AC-21A 690V (A)
200
Rated operational current AC-22A 415V (A)
200
Rated operational current AC-23A 415V (A)
200
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
110
Rated short-ckt. making cap. Icm 415V (kA)
11.4
Rated short-time withstand current 1s Icw 415V (kA)
6.5
Rated therm. current Ithe (A)
200
Rated therm. current Ith (A)
200
Short product description
Isolating switch 4x200A IP66
Switch type
Load Break Switch
Technical name
4x200A 400V 110kW
Terminals bolt size (Cu mm²)
M8
Volume
18 l
Width
300 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 GTIN code
6419410341353
Package size 1 weight
8.7229 kg
Sales unit
1
