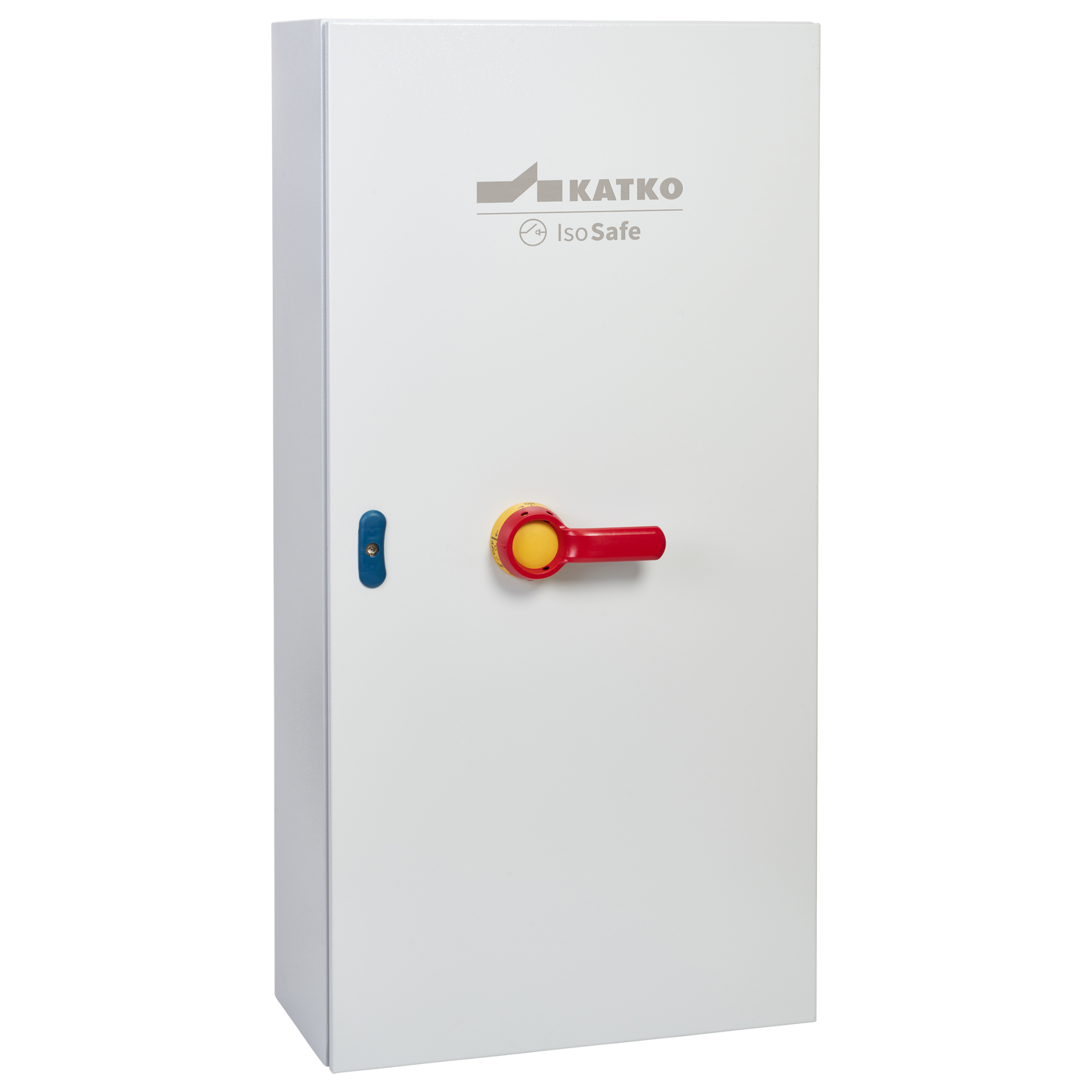

KET 31600T YR T10A

KET Sheet Steel 16-1600A

  • IP66
  • Good corrosion resistance
  • Wide operating temperature range
  • Padlockable
  • Door interlock with defeat mechanism
  • Excellent insulating properties
  • Good UV resistance
  • Good resistance against many chemicals
  • Tested according to IEC 60947-3
  • Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.

Technical datasheet >>


Product details

SKU KET 31600T YR T10A
AC-21 400/415 V (A) 1600 A
AC-21 690 V (A) 1600 A
AC-22 400/415 V (A) 1600 A
AC-22 690 V (A) 1600 A
AC-23 400/415 V (A/kW) 1600 A / 900 kW
AC-23 690 V (A/kW) 1600 A / 1200 kW
Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size M12
Color Yellow / Red
EAN 6419410338438
Enclosure T10A
Enclosure Type Sheet Steel
IP Rating 65
Number of Poles 3
Operation Front-operated
Switch type Load Break Switch
Weight (kg) 85

Dimensional drawing

Product diagram
