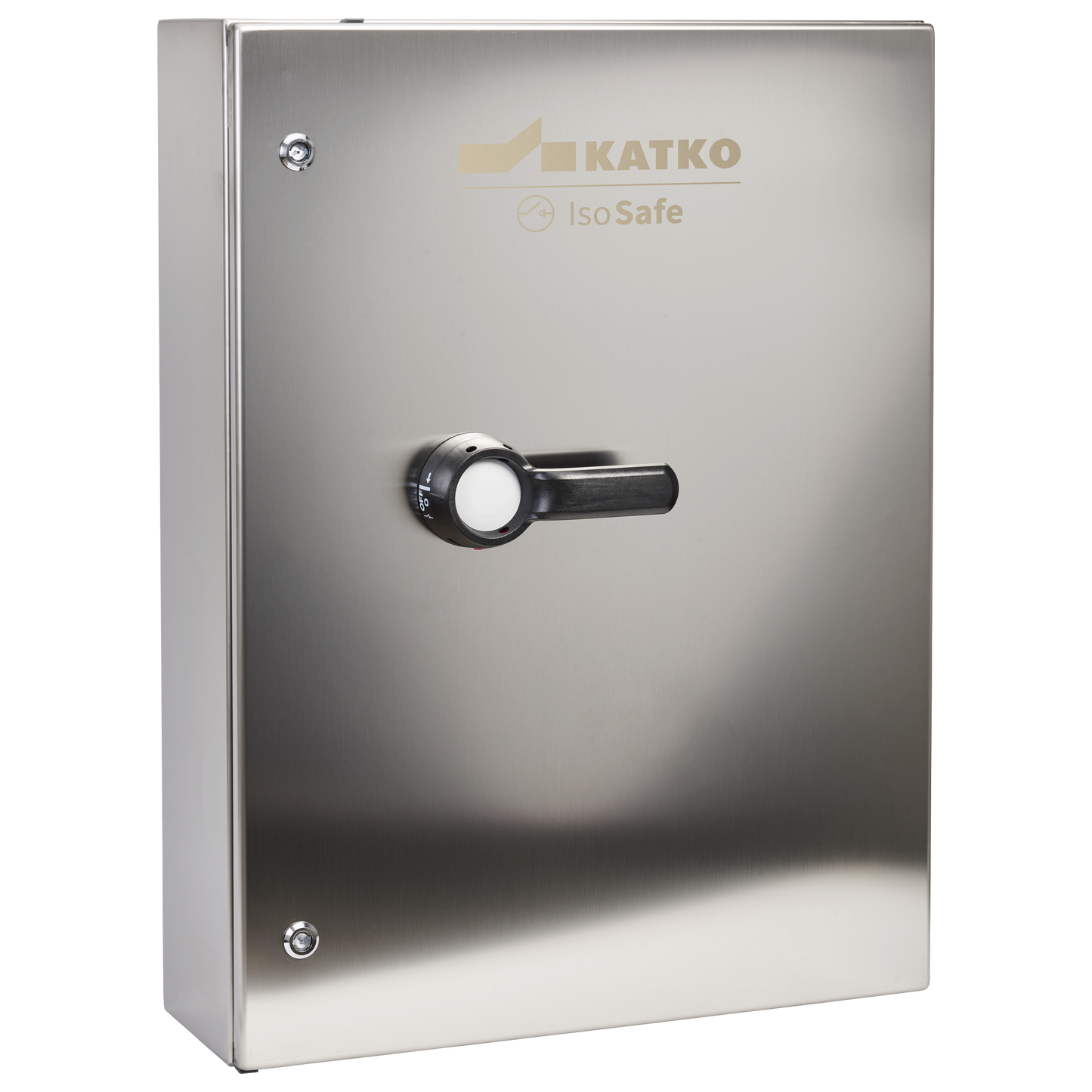

Isolating switch 6x200A IP66

KER 6200 R7

Isolating switch 6x200A IP66

Katko IsoSafe stainless steel enclosed safety switches are available in AISI 304 and AISI 316L, providing reliable isolation for demanding environments where corrosion resistance, hygiene and long service life are essential. The stainless steel enclosure withstands moisture, chemicals and aggressive cleaning agents, making it well suited for food, pharmaceutical and process industry applications, as well as harsh industrial environments.

A practical design and dependable safety features support safe operation and easy maintenance. Designed and manufactured in Finland, IsoSafe stainless steel switches are based on Katko’s extensive experience in demanding applications, meet international safety and quality standards, and deliver reliable electrical distribution where durability and performance matter.

GTIN
6419410343760
Rated operational current AC-23A 415V (A)
200
Enclosure type
Stainless steel (AISI 304)
Enclosure
R7 (600 x 800 x 200 mm)
View full details

Product details and documents

Technical data

Depth
200 mm
EMC
false
Enclosure
R7 (600 x 800 x 200 mm)
Enclosure type
Stainless steel (AISI 304)
ETIM Class
EC000216
GTIN
6419410343760
Height
800 mm
IP rating
IP66
Long product name
6-pole, Stainless steel enclosure (AISI 304); W600 x H800 x D200
Max. term. torque (Nm)
15..22
Mech. endurance (no. of oper.)
16000
Net weight
31.3915 kg
Nom. values w/cable size (mm²)
95
Number of poles
6
Product type
KER 6200 R7
Rated breaking cap. ICN AC-23A 415V (A)
1600
Rated breaking cap. ICN AC-23A 500V (A)
1600
Rated breaking cap. ICN AC-23A 690V (A)
1600
Rated fused short-ckt current back-up fuse opt 1 (A)
250
Rated fused short-ckt current back-up fuse opt 2 (A)
315
Rated fused short-ckt current peak value (kA)
26
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt current RMS Ik opt 2 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
200
Rated operational current AC-21A 500V (A)
200
Rated operational current AC-21A 690V (A)
200
Rated operational current AC-22A 415V (A)
200
Rated operational current AC-22A 500V (A)
200
Rated operational current AC-22A 690V (A)
200
Rated operational current AC-23A 415V (A)
200
Rated operational current AC-23A 500V (A)
200
Rated operational current AC-23A 690V (A)
200
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
110
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
132
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
160
Rated short-ckt. making cap. Icm 690V (kA)
14
Rated short-time withstand current 1s Icw 1000V (kA)
8
Rated therm. current Ithe (A)
250
Rated therm. current Ith (A)
250
Short product description
Isolating switch 6x200A IP66
Switch type
Load Break Switch
Technical name
6x200A 400V 110kW
Terminals bolt size (Cu mm²)
M8
Volume
96 l
Width
600 mm

Dimensional drawing

Logistical data

Package size 1
1
Sales unit
1
