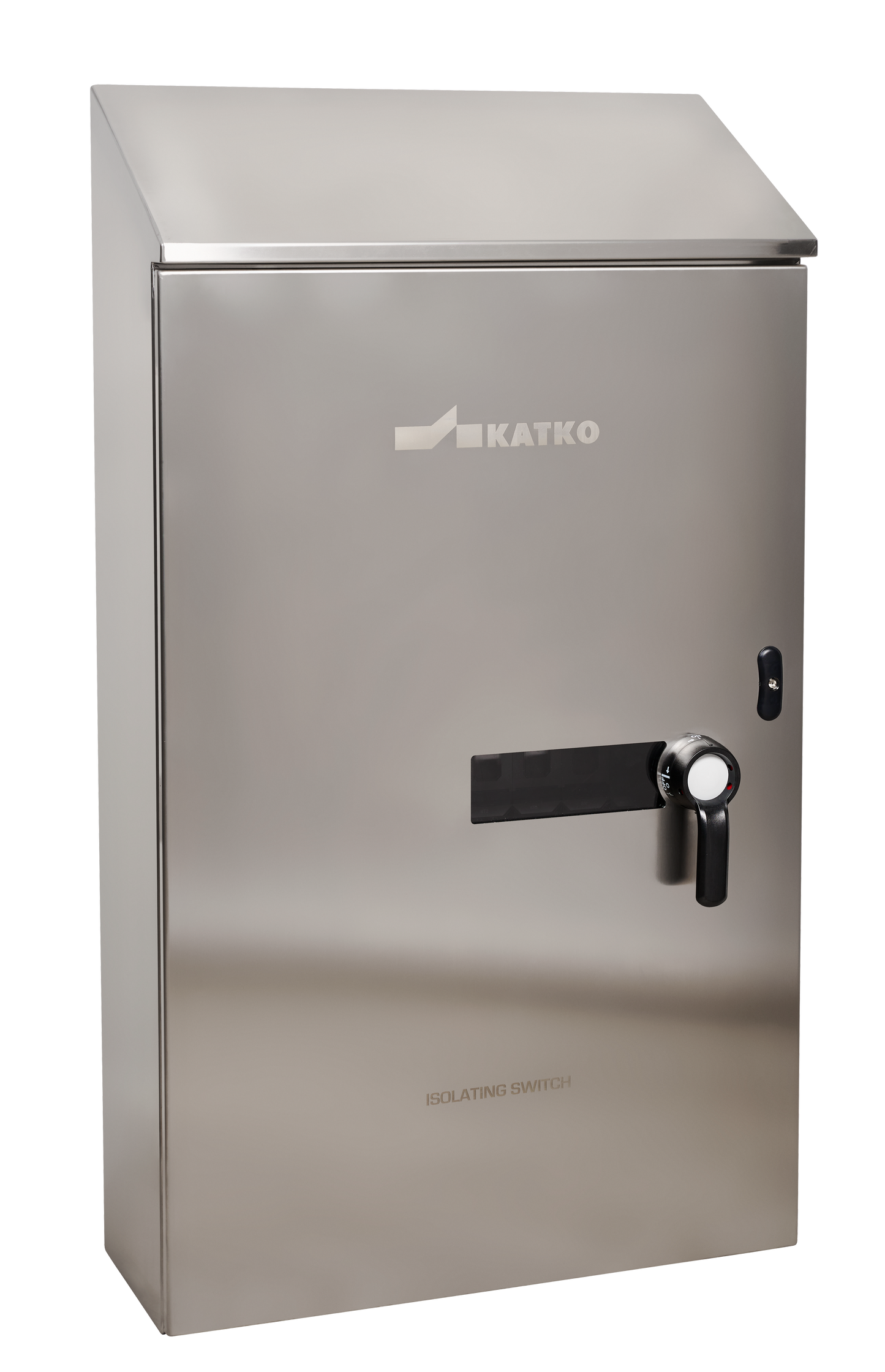

KER 4800 RA10VS

Isolating switch 4x800A IP66

KER 4800 RA10VS

Katko IsoSafe stainless steel visual isolating safety switches are built for heavy-duty industrial applications, particularly in the mining industry, where clear visibility of switch status and durable performance are critical. Featuring AISI 316L enclosures with IP66 protection, these switches include a visual status indication window for clear position feedback and are designed to withstand the rigours of mining, infrastructure and other demanding environments.

Padlockable handles, door interlocks and robust stainless steel construction ensure dependable safety and long service life, making them a trusted choice wherever reliable isolation and protection are essential.

GTIN
6419410207260
Rated operational current AC-23A 415V (A)
800
Enclosure type
Stainless steel enclosure (AISI 316L)
Enclosure
RA10VS (800 x 1414 x 332 mm)

Looking for more information about this product?

Our team is here to help.

 View full details

Product details and documents

Technical data

Depth
332 mm
EMC
false
Enclosure
RA10VS (800 x 1414 x 332 mm)
Enclosure type
Stainless steel enclosure (AISI 316L)
ETIM Class
EC000216
GTIN
6419410207260
Height
1414 mm
IP rating
IP66
Long product name
4-pole, Acid-resistant stainless steel enclosure with rain hood (AISI 316L); W800 x H1414 x D332
Max. term. torque (Nm)
50..75
Mech. endurance (no. of oper.)
10000
Nom. values w/cable size (mm²)
2*300
Number of poles
4
Product type
KER 4800 RA10VS
Rated breaking cap. ICN AC-23A 415V (A)
6400
Rated breaking cap. ICN AC-23A 500V (A)
6400
Rated breaking cap. ICN AC-23A 690V (A)
6400
Rated fused short-ckt current back-up fuse opt 1 (A)
800
Rated fused short-ckt current peak value (kA)
76
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
800
Rated operational current AC-21A 500V (A)
800
Rated operational current AC-21A 690V (A)
800
Rated operational current AC-22A 415V (A)
800
Rated operational current AC-22A 500V (A)
800
Rated operational current AC-22A 690V (A)
800
Rated operational current AC-23A 1000V (A)
400
Rated operational current AC-23A 415V (A)
800
Rated operational current AC-23A 500V (A)
800
Rated operational current AC-23A 690V (A)
800
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
400
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
560
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
800
Rated short-ckt. making cap. Icm 690V (kA)
60
Rated short-time withstand current 1s Icw 1000V (kA)
28
Rated therm. current Ithe (A)
800
Rated therm. current Ith (A)
800
Short product description
Isolating switch 4x800A IP66
Switch type
Load Break Switch
Technical name
4x800A 400V 400kW
Terminals bolt size (Cu mm²)
M12
Volume
375.5584 l
Width
800 mm

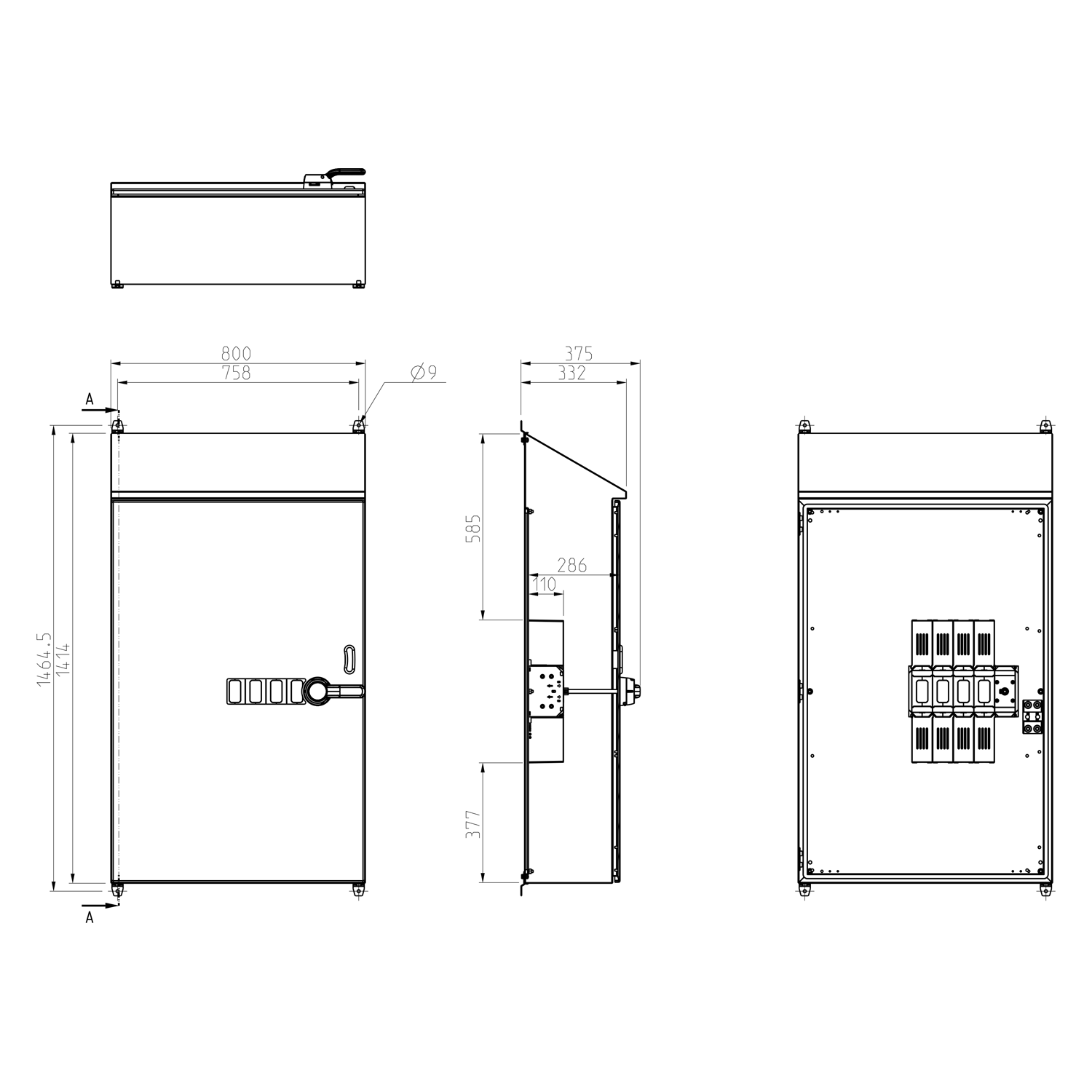

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
108 mm
Package size 1 GTIN code
6419410207260
Package size 1 height
262 mm
Package size 1 volume
4.584 l
Package size 1 width
162 mm
Sales unit
1
