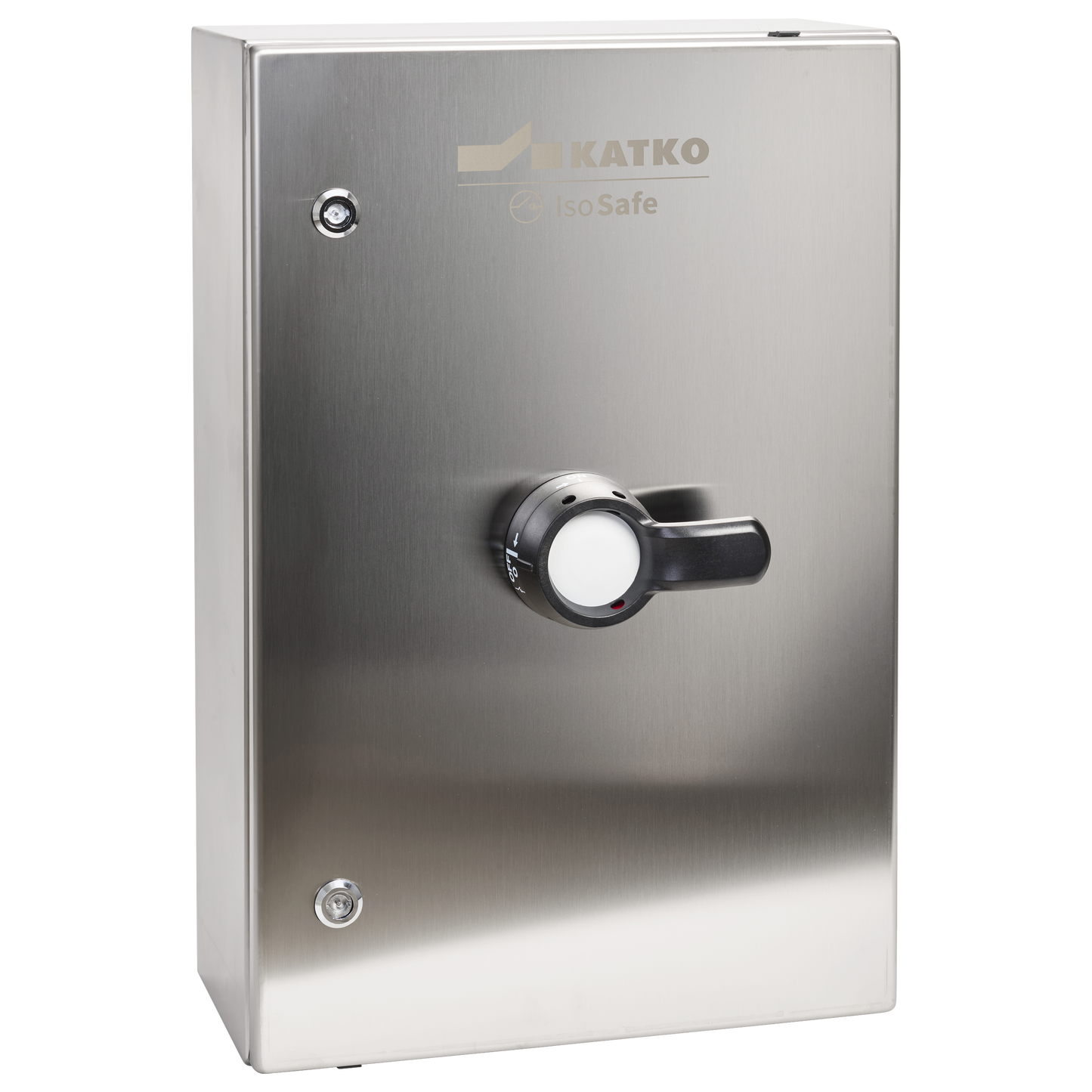

KER 4315 R6

KER Stainless Steel 16-1600A

  • IP66; Enclosure types RA2, RA4, RA5 (AISI 316, acid proof)
  • IP65; Enclosure types R6, R7, R8, R9, R10 (AISI 304 as standard, AISI 316 upon request)
  • Where hygiene and good protection against corrosion are required
  • Padlockable with three locks
  • Door interlock with defeat mechanism
  • Tested according to IEC 60947-3
  • Also available as EMC, and EMC/EX -protected
  • Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.

Technical datasheet >>

Accessories

Product details

SKU KER 4315 R6
AC-21 400/415 V (A) 315 A
AC-21 690 V (A) 315 A
AC-22 400/415 V (A) 315 A
AC-22 690 V (A) 315 A
AC-23 400/415 V (A/kW) 315 A / 160 kW
AC-23 690 V (A/kW) 315 A / 315 kW
Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size M10
Color Standard
EAN 6419410343869
Enclosure R6
Enclosure Type Stainless Steel: Polycarbonate Handle
IP Rating 65
Number of Poles 4
Operation Front-operated
Switch type Load Break Switch
Weight (kg) 16

Dimensional drawing

Product diagram
