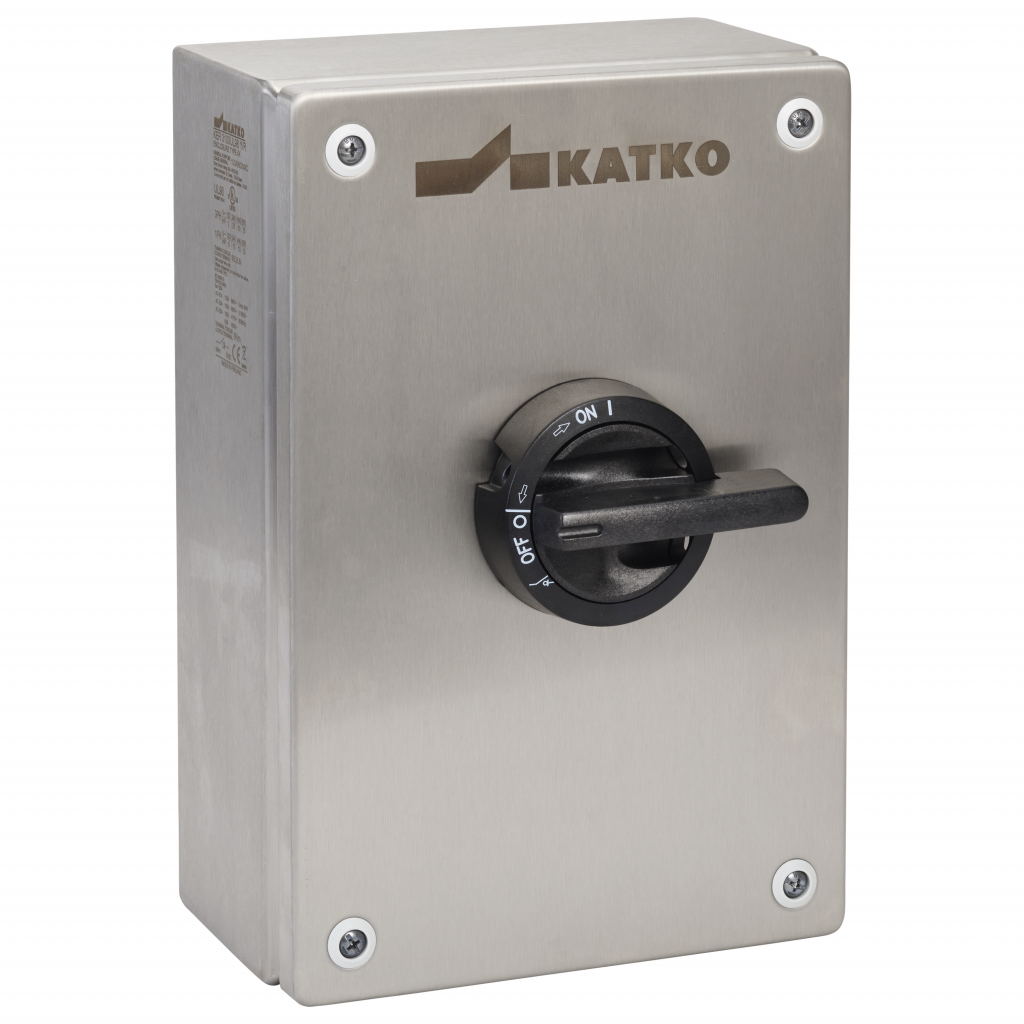

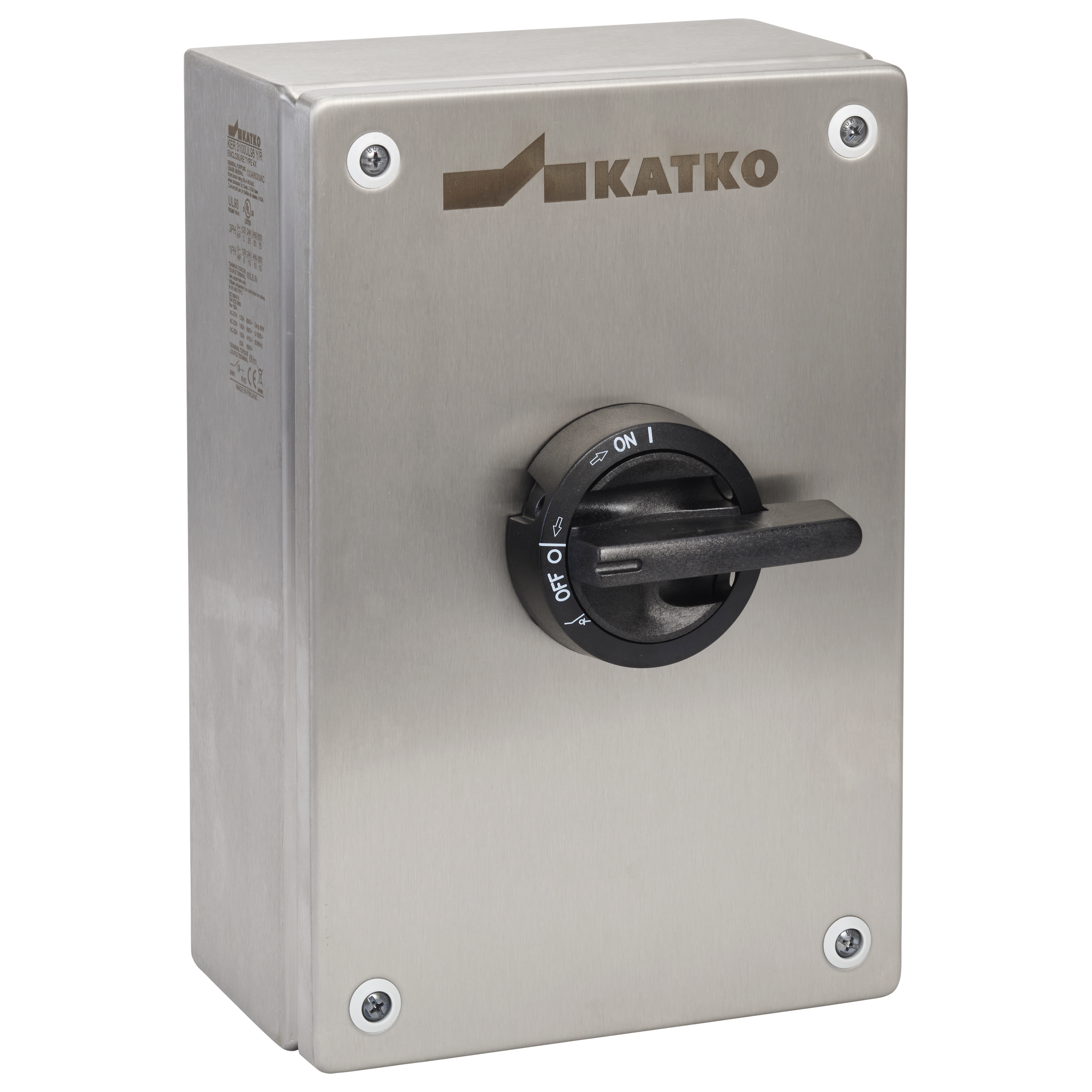

KER 360UL98 R4B

UL98 listed enclosed switches polycarbonate, stainless steel, sheet steel 60-100A

  • Type 4X enclosure: polycarbonate and stainless steel
  • Type 4 enclosure: sheet steel
  • Padlockable
  • General use rating 60 A to 100 A /600VAC, refer to detailed product specifications
  • 208 V rating at 120 V
  • KEM = polycarbonate enclosure
  • KET = sheet steel enclosure
  • KER = stainless steel enclosure

Product details

Ampere Rating (600V) 60 A
Color Standard
EAN 6419410315682
Enclosure R4B
HP 208V 1.5HP
HP 240V 20HP
HP 480V 40HP
HP 600V 60HP
NEMA Rating 4X
Number of Poles 3
Weight (lb/kg) 7.27 / 3.3
Wire Size (Cu Only) 8-1/0 AWG

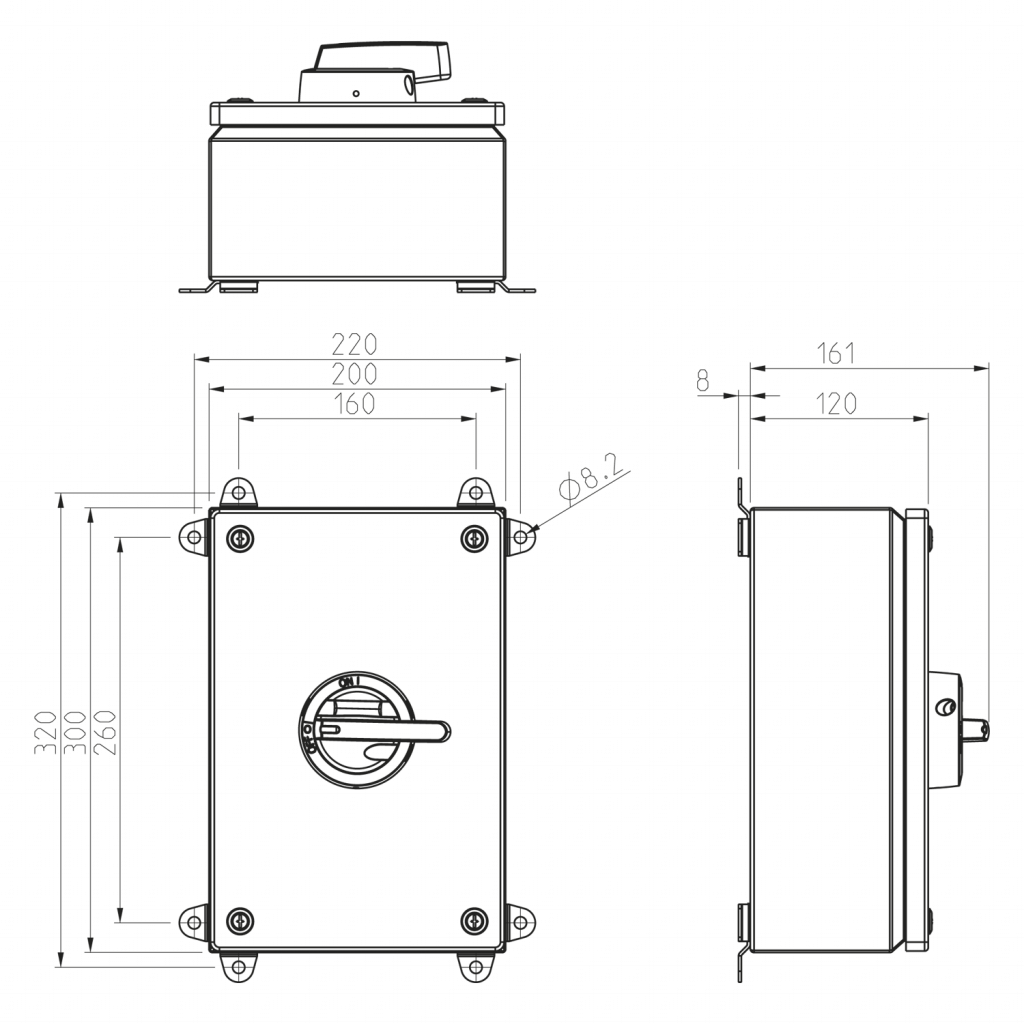

Dimensional drawing

Product diagram
