Katko IsoSafe stainless steel visual isolating safety switches are built for heavy-duty industrial applications, particularly in the mining industry, where clear visibility of switch status and durable performance are critical. Featuring AISI 316L enclosures with IP66 protection, these switches include a visual status indication window for clear position feedback and are designed to withstand the rigours of mining, infrastructure and other demanding environments.
Padlockable handles, door interlocks and robust stainless steel construction ensure dependable safety and long service life, making them a trusted choice wherever reliable isolation and protection are essential.
GTIN
Rated operational current AC-23A 415V (A)
Enclosure type
Enclosure
Technical data
Depth
222 mm
EMC
false
Enclosure
RA6AVS (345 x 657 x 222 mm)
Enclosure type
Stainless steel enclosure (AISI 316L)
ETIM Class
EC000216
GTIN
6419410266229
Height
657 mm
IP rating
IP66
Long product name
3-pole, Acid-resistant stainless steel enclosure with rain hood (AISI 316L); W345 x H657 x D222
Max. term. torque (Nm)
6
Mech. endurance (no. of oper.)
16000
Nom. values w/cable size (mm²)
95
Number of poles
3
Product type
KER 3160P RA6AVS
Rated breaking cap. ICN AC-23A 415V (A)
1280
Rated breaking cap. ICN AC-23A 500V (A)
800
Rated breaking cap. ICN AC-23A 690V (A)
800
Rated fused short-ckt current back-up fuse opt 1 (A)
160
Rated fused short-ckt current peak value (kA)
15
Rated fused short-ckt current RMS Ik opt 1 (kA)
65
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
160
Rated operational current AC-21A 500V (A)
160
Rated operational current AC-21A 690V (A)
160
Rated operational current AC-22A 415V (A)
160
Rated operational current AC-22A 500V (A)
160
Rated operational current AC-22A 690V (A)
160
Rated operational current AC-23A 415V (A)
160
Rated operational current AC-23A 500V (A)
100
Rated operational current AC-23A 690V (A)
100
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
90
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
55
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
90
Rated short-ckt. making cap. Icm 690V (kA)
8
Rated short-time withstand current 1s Icw 690V (kA)
5
Rated therm. current Ithe (A)
200
Rated therm. current Ith (A)
200
Short product description
Isolating switch 3x160A IP66
Switch type
Load Break Switch
Technical name
3x160A 400V 90kW
Terminals bolt size (Cu mm²)
6..70
Volume
50.3196 l
Width
345 mm

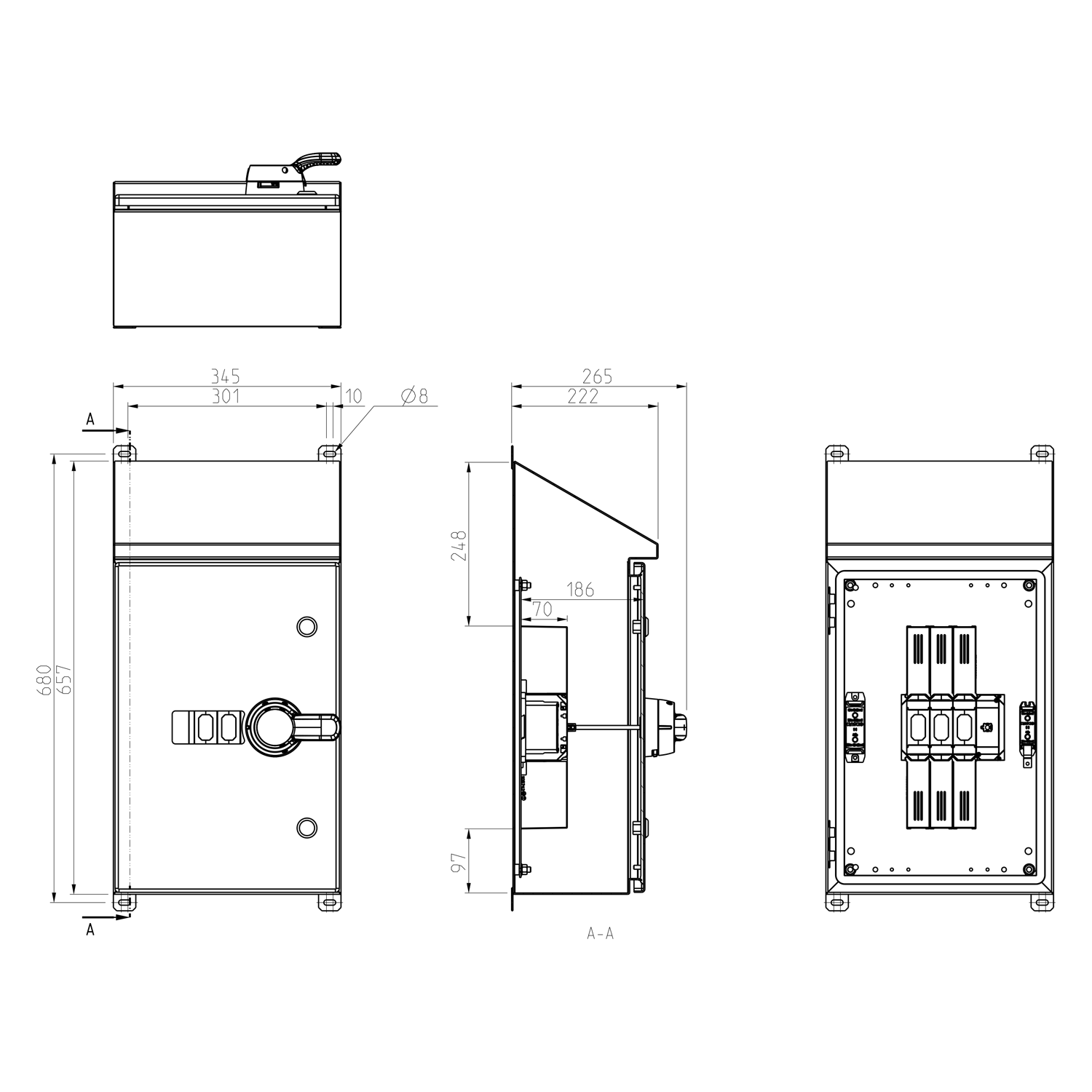

Dimensional drawing
Logistical data
Package size 1
1
Package size 1 depth
108 mm
Package size 1 GTIN code
6419410266229
Package size 1 height
262 mm
Package size 1 volume
4.584 l
Package size 1 width
162 mm
Sales unit
1
Downloadables
- Dimensional drawings media (IsoSafe_KER_3P_200_800_RA6AVS_Dim.png)
- Connection diagram media (KATKO_KU3P_diagram)
- Brochures (Katko IsoSafe Catalogue - Safety Switches & Isolators)
- Brochures (Katko IsoSafe Tuoteluettelo - Turvakytkimet FI)
- Brochures (Katalog Wyrobów KATKO IsoSafe – Wyłączniki bezpieczeństwa i rozłączniki PL)
