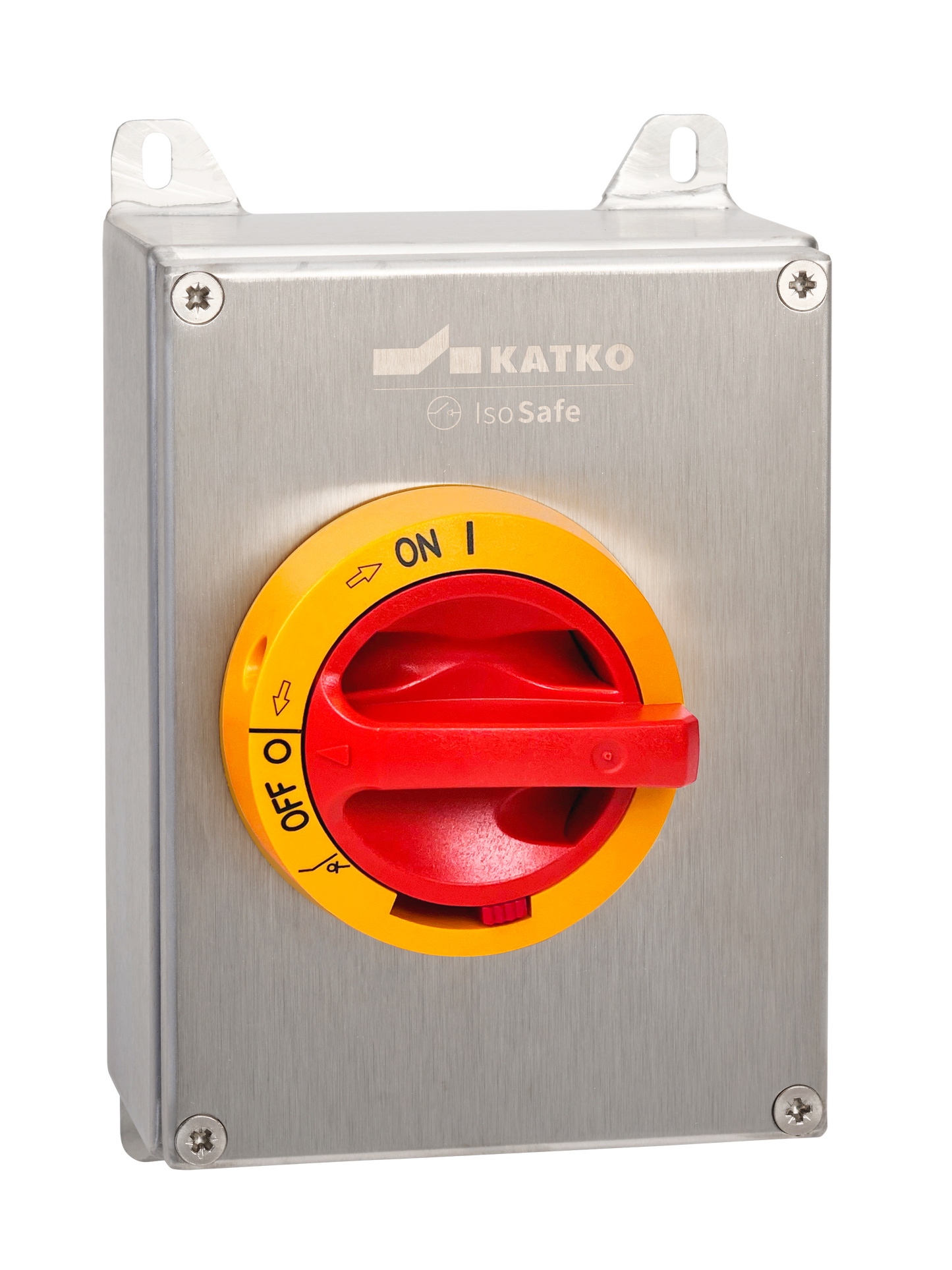

KER 316 YR RA2EMC 2XM25MEMC KST16M

Isolating switch EMC 3x16A IP66

KER 316 YR RA2EMC 2XM25MEMC KST16M

Katko EMC isolators (10-1600A) are engineered to ensure reliable isolation while maintaining electromagnetic compatibility in sensitive installations. They are designed to meet the requirements of environments where electrical interference must be carefully controlled.

By combining effective shielding with durable construction, EMC isolators support stable system performance in industrial, commercial, and infrastructure applications where EMC compliance is critical.

GTIN
6419410274965
Rated operational current AC-23A 415V (A)
16
Enclosure type
Stainless steel enclosure (AISI 316L)
Enclosure
RA2 (120 x 160 x 77 mm)
View full details

Product details and documents

Technical data

Cable entries
2 x M25 (11,0-17,0 mm), metal EMC; 1 x plug, metal
Depth
77 mm
EMC
true
Enclosure
RA2 (120 x 160 x 77 mm)
Enclosure type
Stainless steel enclosure (AISI 316L)
ETIM Class
EC000216
GTIN
6419410274965
Height
160 mm
IP rating
IP66
Long product name
3-pole, Yellow-red handle, Acid-resistant stainless steel enclosure (AISI 316L); W120 x H160 x D77,EMC shielded, Cable entries: 2 x M25 (11,0-17,0 mm), metal EMC; 1 x plug, metal
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
50000
Net weight
0.7551 kg
Nom. values w/cable size (mm²)
4
Number of poles
3
Product type
KER 316 YR RA2EMC 2XM25MEMC KST16M
Rated breaking cap. ICN AC-23A 415V (A)
128
Rated breaking cap. ICN AC-23A 500V (A)
128
Rated breaking cap. ICN AC-23A 690V (A)
128
Rated fused short-ckt current back-up fuse opt 1 (A)
25
Rated fused short-ckt current peak value (kA)
3.8
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
25
Rated operational current AC-21A 500V (A)
25
Rated operational current AC-21A 690V (A)
25
Rated operational current AC-22A 415V (A)
16
Rated operational current AC-22A 500V (A)
16
Rated operational current AC-22A 690V (A)
16
Rated operational current AC-23A 415V (A)
16
Rated operational current AC-23A 500V (A)
16
Rated operational current AC-23A 690V (A)
16
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
7.5
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
7.5
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
11
Rated short-ckt. making cap. Icm 690V (kA)
1
Rated short-time withstand current 1s Icw 690V (kA)
0.7
Rated therm. current Ithe (A)
25
Rated therm. current Ith (A)
25
Short product description
Isolating switch EMC 3x16A IP66
Switch type
Load Break Switch
Technical name
3x16A 400V 7.5kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.4784 l
Width
120 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
170 mm
Package size 1 GTIN code
6419410332962
Package size 1 height
400 mm
Package size 1 volume
20.4 l
Package size 1 weight
9.578 kg
Package size 1 width
300 mm
Sales unit
1
