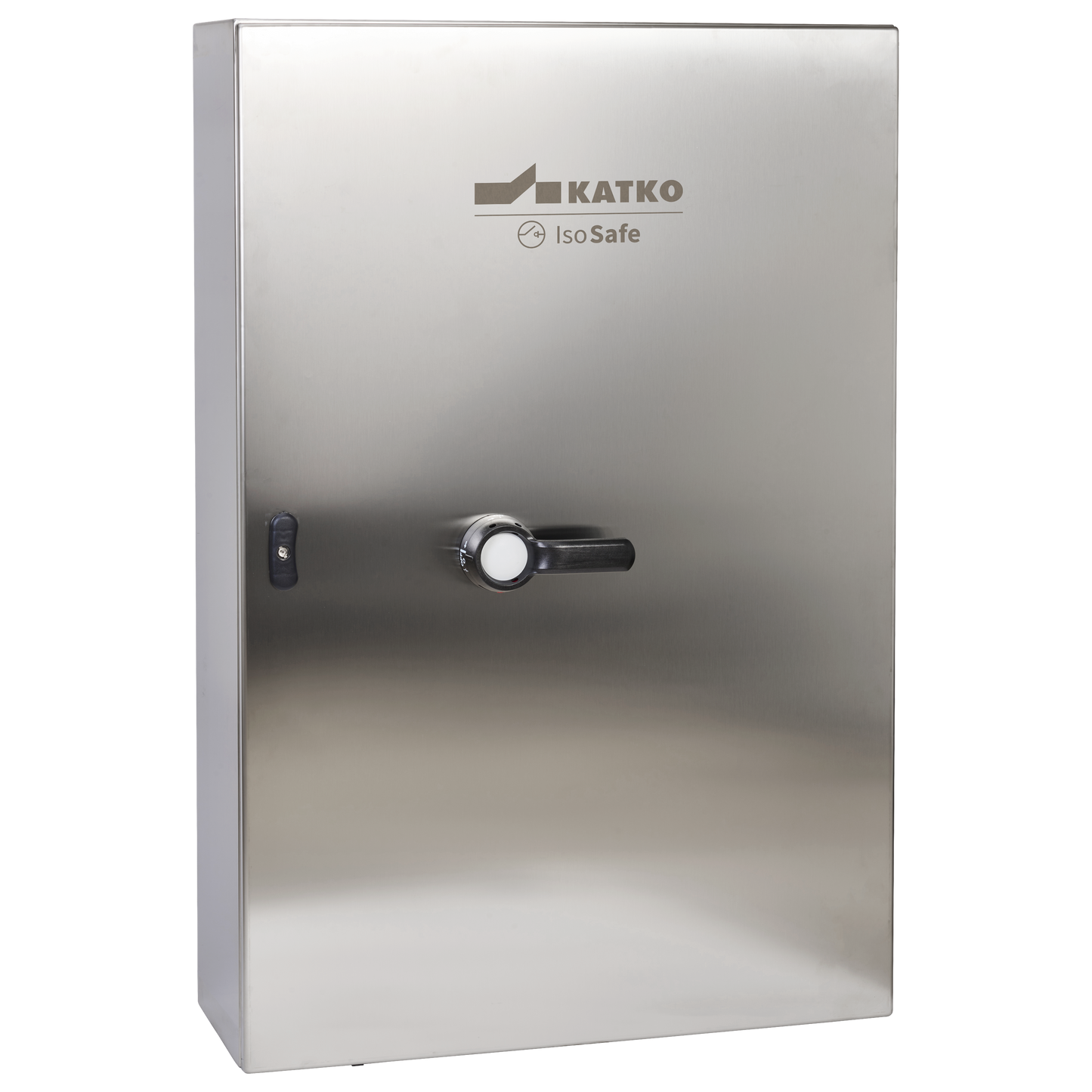

KER 31250 R10
KER Stainless Steel 16-1600A
- IP66; Enclosure types RA2, RA4, RA5 (AISI 316, acid proof)
- IP65; Enclosure types R6, R7, R8, R9, R10 (AISI 304 as standard, AISI 316 upon request)
- Where hygiene and good protection against corrosion are required
- Padlockable with three locks
- Door interlock with defeat mechanism
- Tested according to IEC 60947-3
- Also available as EMC, and EMC/EX -protected
- Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.
|SKU||KER 31250 R10|
|AC-21 400/415 V (A)||1250 A|
|AC-21 690 V (A)||1250 A|
|AC-22 400/415 V (A)||1250 A|
|AC-22 690 V (A)||1250 A|
|AC-23 400/415 V (A/kW)||1250 A / 710 kW|
|AC-23 690 V (A/kW)||1250 A / 1000 kW|
|Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size||6-70|
|Enclosure Type||Stainless Steel: Polycarbonate Handle|
|Number of Poles||3|
|Switch type||Load Break Switch|
