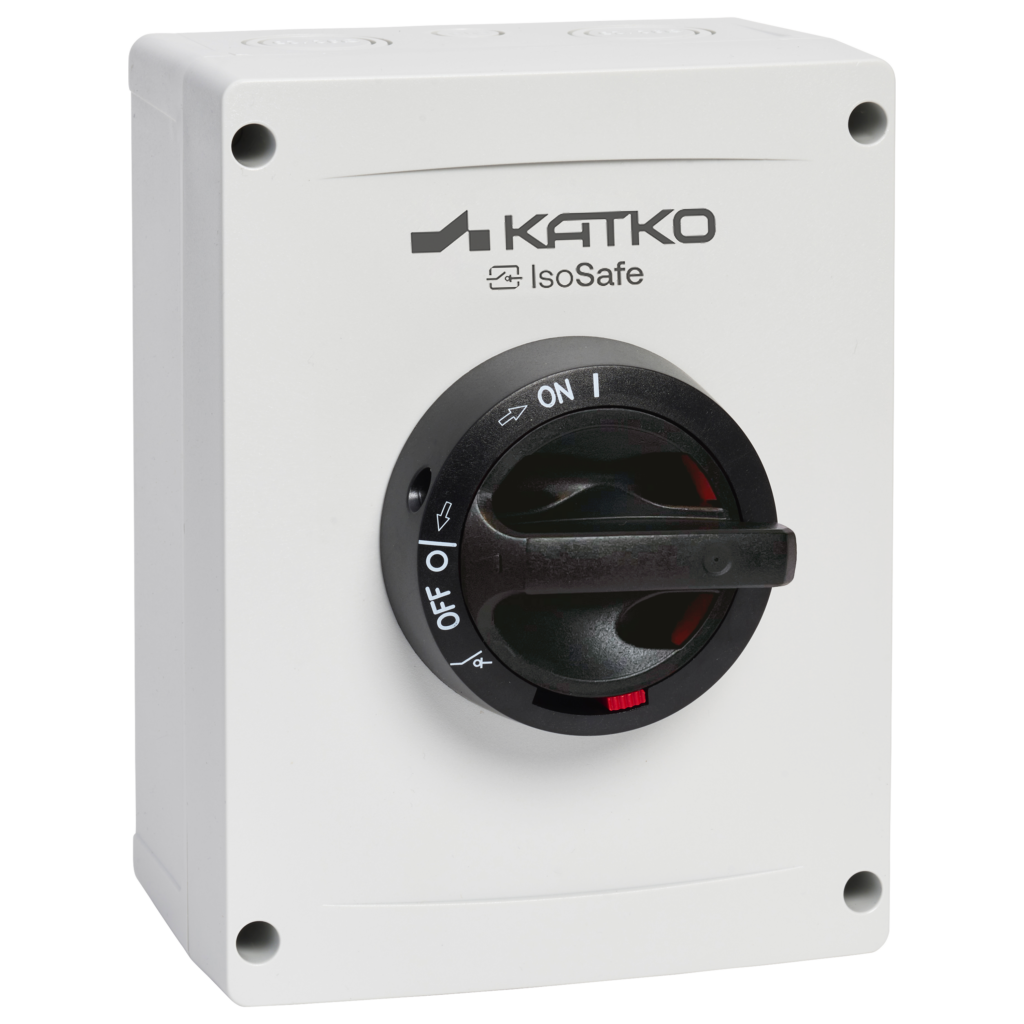

KEM 363 M3

KEM Polycarbonate 10-630A

  • IP66; Enclosure types M2, M3, M4, MF11, MF01, MF02 MF03, MF04
  • Self-extinguishing material
  • Wide operating temperature range
  • Padlockable with 3 locks
  • Door interlock with defeat mechanism
  • Excellent insulating properties
  • Good UV resistance
  • Good resistance against many chemicals
  • Tested according to IEC 60947-3
  • Note! Al-cables cannot be connected directly to switch terminals. For Al-cable connection please use a bi-metal cable connector, available here.

KEM 16-40 A Installation guide video >>

KEM 63-80 A Installation guide video >>

Technical datasheet >>

Accessories

Product details

SKU KEM 363 M3
AC-21 400/415 V (A) 80 A
AC-21 690 V (A) 80 A
AC-22 400/415 V (A) 63 A
AC-22 690 V (A) 63 A
AC-23 400/415 V (A/kW) 40 A / 22 kW
AC-23 690 V (A/kW) 40 A / 37 kW
Cable Area to Switch Terminal (only Cu) (mm2) / Bolt size 2.5-35
Color Standard
EAN 6419410399637
Enclosure M3
Enclosure Type Polycarbonate
IP Rating 66
Number of Poles 3
Operation Front-operated
Switch type Load Break Switch
Weight (kg) 0.6

Dimensional drawing

Product diagram
