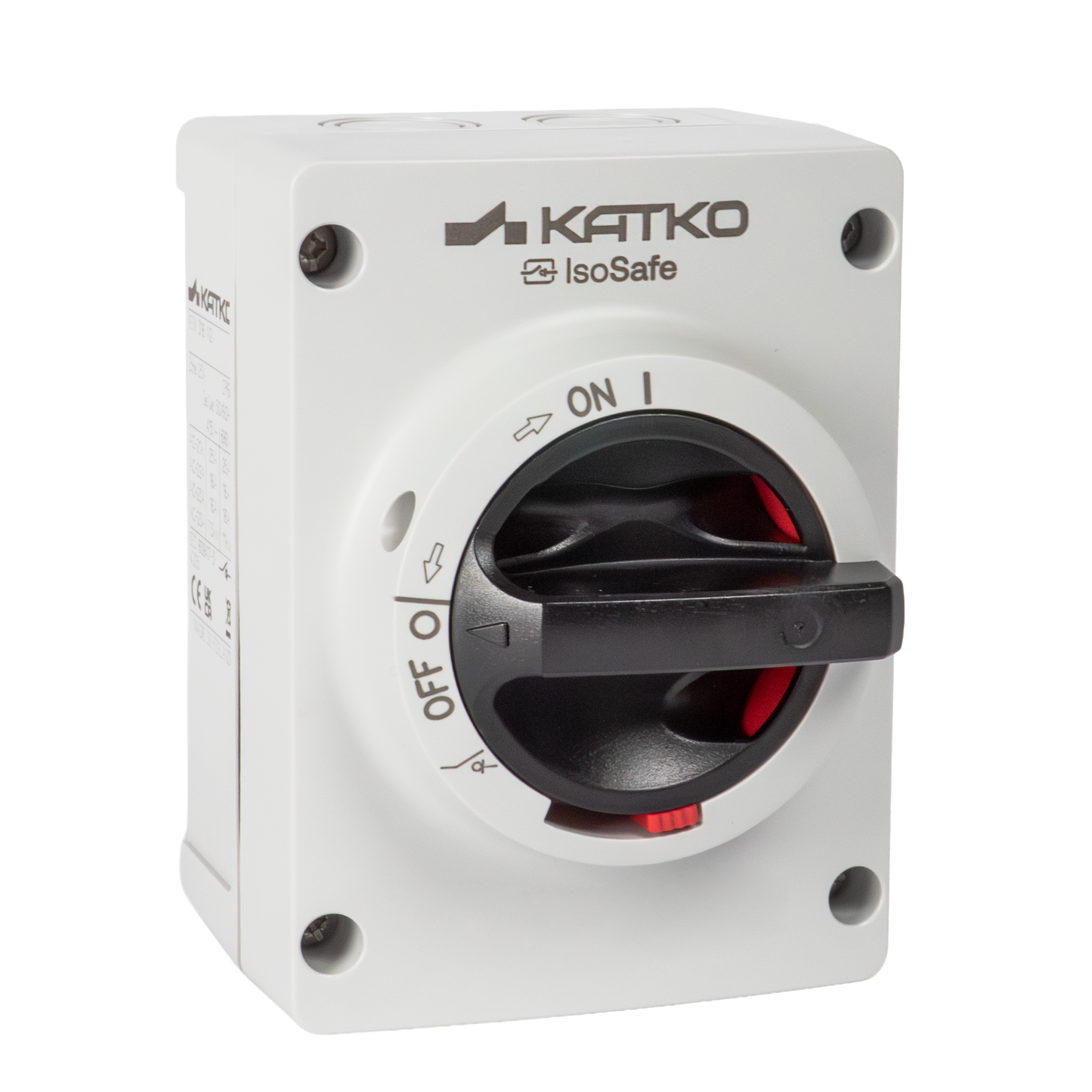

Isolating switch 3x25A IP66

- KEM 325 M2

Isolating switch 3x25A IP66

Katko IsoSafe polycarbonate enclosed safety switches are designed for real-world applications where safety and reliability are essential, from demanding industrial environments to ordinary buildings. The durable polycarbonate enclosure provides high protection and excellent insulation while resisting UV radiation and many chemicals, ensuring reliable performance both indoors and outdoors.

Advanced safety features, including self-extinguishing materials, secure door interlocking defeat mechanisms and a padlockable handle, support safe operation and maintenance. Designed and manufactured in Finland, IsoSafe switches reflect decades of application-driven engineering and are trusted in installations where dependable electrical distribution is critical.

E-number FI
GTIN
6419410327685
Rated operational current AC-23A 415V (A)
25
Enclosure type
Polycarbonate
Enclosure
M2 (96 x 130 x 74 mm)
View full details

Product details and documents

Technical data

Depth
104 mm
EMC
false
Enclosure
M2 (96 x 130 x 74 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
E-number FI
3610307
GTIN
6419410327685
Height
130 mm
IP rating
IP66
Long product name
3-pole, Polycarbonate enclosure; W96.4 x H130.4 x D106
Max. term. torque (Nm)
1.8
Mech. endurance (no. of oper.)
50000
Net weight
0.4765 kg
Nom. values w/cable size (mm²)
10
Number of poles
3
Product type
- KEM 325 M2
Rated breaking cap. ICN AC-23A 415V (A)
200
Rated breaking cap. ICN AC-23A 500V (A)
200
Rated breaking cap. ICN AC-23A 690V (A)
200
Rated fused short-ckt current back-up fuse opt 1 (A)
40
Rated fused short-ckt current peak value (kA)
6
Rated fused short-ckt current RMS Ik opt 1 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
8
Rated insulation volt. Ui (V)
800
Rated operational current AC-21A 415V (A)
40
Rated operational current AC-21A 500V (A)
40
Rated operational current AC-21A 690V (A)
40
Rated operational current AC-22A 415V (A)
25
Rated operational current AC-22A 500V (A)
25
Rated operational current AC-22A 690V (A)
25
Rated operational current AC-23A 415V (A)
25
Rated operational current AC-23A 500V (A)
25
Rated operational current AC-23A 690V (A)
25
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
11
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
15
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
22
Rated short-ckt. making cap. Icm 690V (kA)
2.5
Rated short-time withstand current 1s Icw 690V (kA)
1.7
Rated therm. current Ithe (A)
40
Rated therm. current Ith (A)
40
Short product description
Isolating switch 3x25A IP66
Switch type
Load Break Switch
Technical name
3x25A 400V 11kW
Terminals bolt size (Cu mm²)
1,5..16
Volume
1.2979 l
Width
96 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
96 mm
Package size 1 GTIN code
6419410399644
Package size 1 height
190 mm
Package size 1 volume
2.6266 l
Package size 1 weight
0.7406 kg
Package size 1 width
144 mm
Sales unit
1
