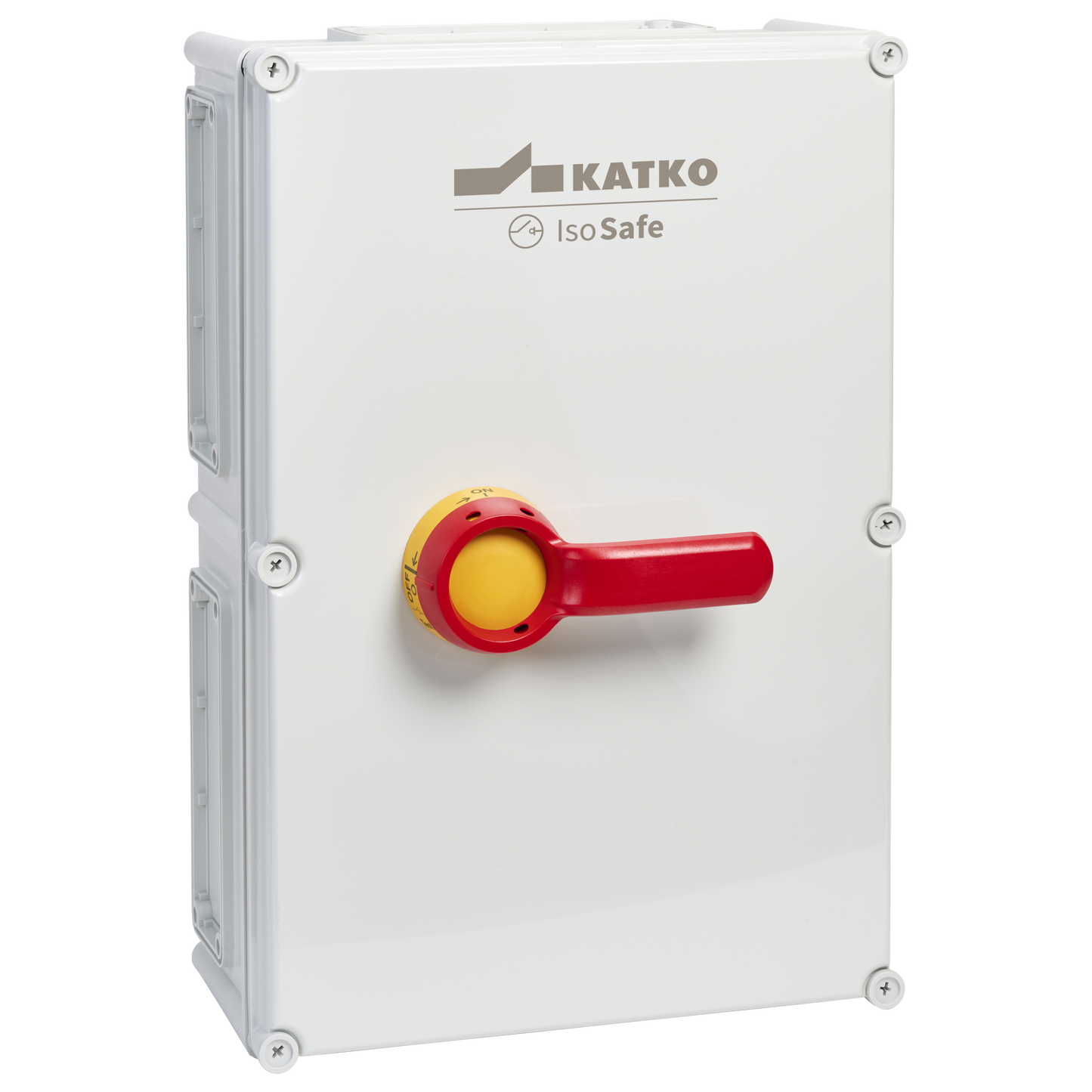

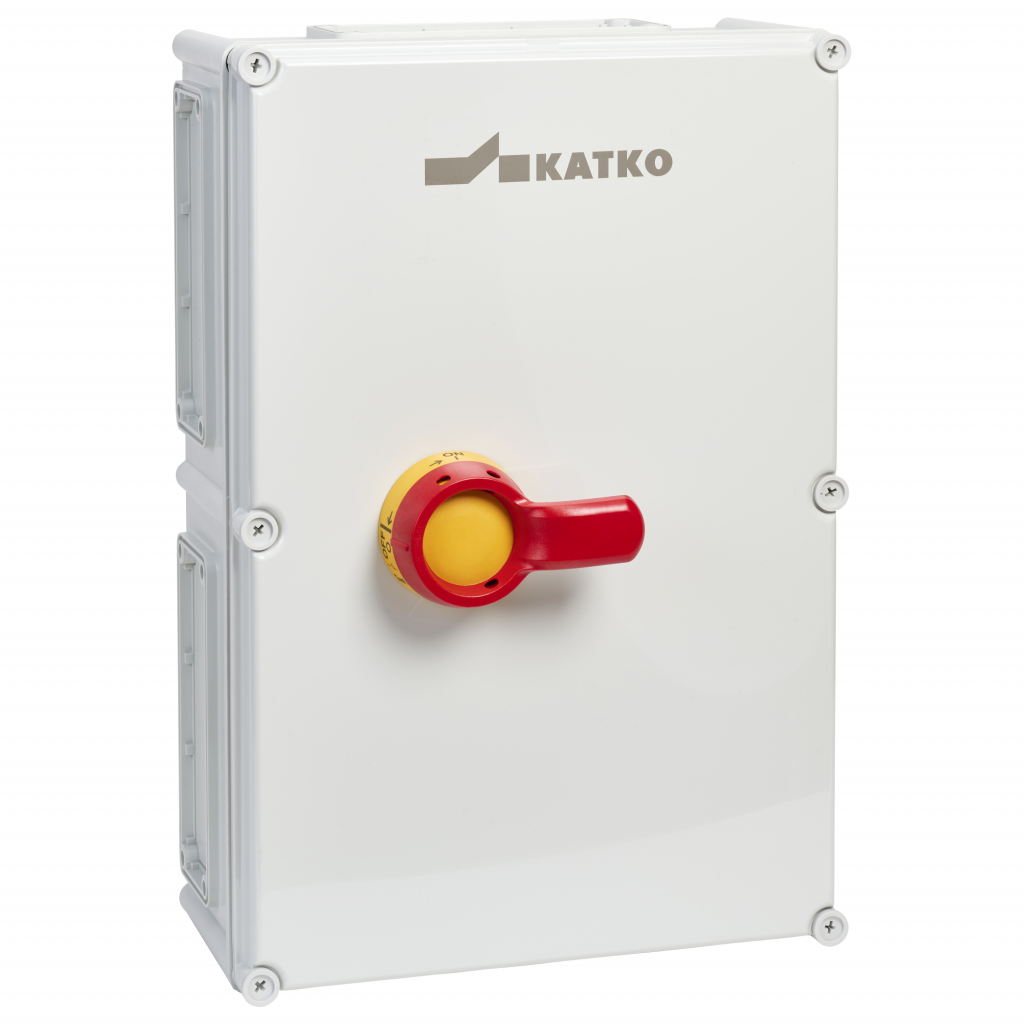

KEM 3200 YR MF03

Isolating switch 3x200A IP66

KEM 3200 YR MF03

Katko IsoSafe polycarbonate enclosed safety switches are designed for real-world applications where safety and reliability are essential, from demanding industrial environments to ordinary buildings. The durable polycarbonate enclosure provides high protection and excellent insulation while resisting UV radiation and many chemicals, ensuring reliable performance both indoors and outdoors.

Advanced safety features, including self-extinguishing materials, secure door interlocking defeat mechanisms and a padlockable handle, support safe operation and maintenance. Designed and manufactured in Finland, IsoSafe switches reflect decades of application-driven engineering and are trusted in installations where dependable electrical distribution is critical.

GTIN
6419410319826
Rated operational current AC-23A 415V (A)
200
Enclosure type
Polycarbonate
Enclosure
MF03 (380 x 560 x 180 mm)

Looking for more information about this product?

Our team is here to help.

View full details

Product details and documents

Technical data

Depth
180 mm
EMC
false
Enclosure
MF03 (380 x 560 x 180 mm)
Enclosure type
Polycarbonate
ETIM Class
EC000216
GTIN
6419410319826
Height
560 mm
IP rating
IP66
Long product name
3-pole, Yellow-red handle, Polycarbonate enclosure; W380 x H560 x D180
Max. term. torque (Nm)
15..22
Mech. endurance (no. of oper.)
16000
Net weight
9.2628 kg
Nom. values w/cable size (mm²)
95
Number of poles
3
Product type
KEM 3200 YR MF03
Rated breaking cap. ICN AC-23A 415V (A)
1600
Rated breaking cap. ICN AC-23A 500V (A)
1600
Rated breaking cap. ICN AC-23A 690V (A)
1600
Rated fused short-ckt current back-up fuse opt 1 (A)
250
Rated fused short-ckt current back-up fuse opt 2 (A)
315
Rated fused short-ckt current peak value (kA)
26
Rated fused short-ckt current RMS Ik opt 1 (kA)
100
Rated fused short-ckt current RMS Ik opt 2 (kA)
50
Rated fused short-ckt. impulse withstand volt. Uimp (kV)
12
Rated insulation volt. Ui (V)
1000
Rated operational current AC-21A 415V (A)
200
Rated operational current AC-21A 500V (A)
200
Rated operational current AC-21A 690V (A)
200
Rated operational current AC-22A 415V (A)
200
Rated operational current AC-22A 500V (A)
200
Rated operational current AC-22A 690V (A)
200
Rated operational current AC-23A 415V (A)
200
Rated operational current AC-23A 500V (A)
200
Rated operational current AC-23A 690V (A)
200
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 415V (kW)
110
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 500V (kW)
132
Rated oper. power 3-ph 1500rpm SQ cage motor AC-23A 690V (kW)
160
Rated short-ckt. making cap. Icm 690V (kA)
14
Rated short-time withstand current 1s Icw 1000V (kA)
8
Rated therm. current Ithe (A)
250
Rated therm. current Ith (A)
250
Short product description
Isolating switch 3x200A IP66
Switch type
Load Break Switch
Technical name
3x200A 400V 110kW
Terminals bolt size (Cu mm²)
M8
Volume
38.304 l
Width
380 mm

Dimensional drawing

Logistical data

Package size 1
1
Package size 1 depth
200 mm
Package size 1 GTIN code
6419410319826
Package size 1 height
600 mm
Package size 1 volume
48 l
Package size 1 weight
9.2628 kg
Package size 1 width
400 mm
Sales unit
1
